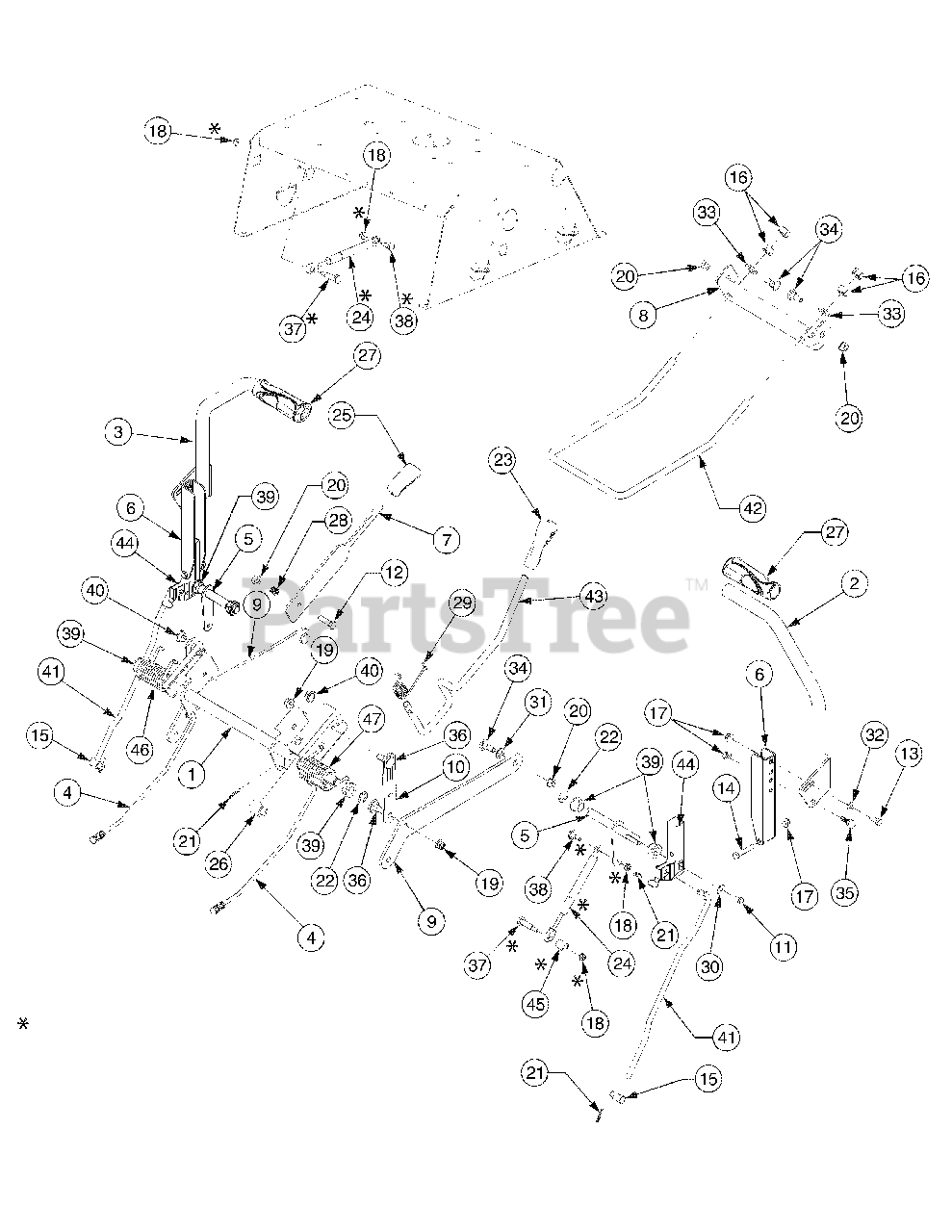

RZT-50 (17AK2ACP597) - Columbia 50" Zero-Turn Mower (2008) Controls & Deck Lift Parts Diagram

50" Zero-Turn Mower

Controls & Deck Lift Parts Diagram

  • Title

1

MTD 603-04160B-0637

Shaft Assembly, Deck Lift
(Superseded to 603-04160C-0637)

$161.99

$

Usually ships in 3-6 days

0

2

MTD 603-04322

Lever, Lapbar, RH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04322-0637

Right Lapbar Handle - POWDER BLACK (0637)

$

$

Not available

MTD 603-04322-0662

HANDLE-RH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

MTD 603-04322-4021

HANDLE-RH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04322-0638

HANDLE-RH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04322-0709

HANDLE-RH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 603-04322-4038

HANDLE-RH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$

$

3

MTD 603-04324

Lever, Lapbar, LH

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-04324-0637

Left Lapbar Handle - POWDER BLACK (0637)

$75.99

$

Usually ships in 3-6 days

0

MTD 603-04324-0638

HANDLE-LH LAPBAR - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

MTD 603-04324-0662

HANDLE-LH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

MTD 603-04324-4021

HANDLE-LH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

MTD 603-04324-0709

HANDLE-LH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 603-04324-4038

HANDLE-LH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$65.99

$

Usually ships in 3-6 days

0

4

MTD 947-04065

Brake Rod

$39.99

$

In Stock, only 1 left!

0

5

MTD 747-04226A

Control Shaft

$52.99

$

Usually ships in 3-6 days

0

6

MTD 703-05387B

Lapbar Pivot Bracket

$28.99

$

In Stock, Qty 5

0

7

MTD 703-05396A-0637

Brake Han dle

$37.99

$

Usually ships in 3-6 days

0

8

MTD 703-05414A

Front Deck Hanger Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-05414A-0606

BRACKET-DECK HANGER - MAJESTIC ORANGE (0606)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-4021

Hanger Deck Bracket - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-0650

BRACKET-DECK HANGER - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-4033

Hanger Deck Bracket - FLINT MICA (4033)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-4044

BRACKET-DECK HANGER - CRAFTSMAN RED (4044)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-0637

BRACKET-DECK HANGER - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-0638

BRACKET-DECK HANGER - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-0674

BRACKET-DECK HANGER - YARDMAN YELLOW (0674)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-0709

BRACKET-DECK HANGER - MASTERCRAFT GREEN (0709)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-0716

BRACKET-DECK HANGER - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

MTD 703-05414A-4015

BRACKET-DECK HANGER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

9

MTD 703-06169-0637

Deck Lift Arm

$16.99

$

In Stock, only 1 left!

0

10

MTD 703-05907

Lift Link Plate

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-05907-0637

Lift Arm Link - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

MTD 703-05907-0606

LINK-LIFT ARM - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-05907-0638

LINK-LIFT ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-05907-0716

LINK-LIFT ARM - CUB YELLOW-99 (0716)

$

$

Not available

MTD 703-05907-0650

No Longer Available LINK-LIFT - RED METALLIC (0650)

$

$

Not available

MTD 703-05907-0665

No Longer Available LINK-LIFT - YARDMAN GREEN (0665)

$

$

Not available

MTD 703-05907-4015

LINK-LIFT ARM - FIRE RED (4015)

$

$

Not available

MTD 703-05907-4021

LINK-LIFT ARM - CUB YELLOW 2 (4021)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

11

MTD 710-0433

Hex Bolt 1/4-20 x .625" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

15

MTD 911-0832

Adjustment Ferrule 3/8-24

$15.99

$

In Stock, only 4 left!

0

16

MTD 912-0206

Hex Nut 1/2-13
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-04063

Hex. Flanged L-Nut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04064

Hex. Flanged L-Nut Hex 1/4-20 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

Hex. Flanged L-Nut 3/8-16 Gr. F Ny lon

$3.99

$

In Stock, Qty 20+

0

20

MTD 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

21

MTD 914-0104

Int. Cotter Pin .072 x 1.13" Lg.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

22

MTD 716-0106

E-ring

$4.49

$

In Stock, Qty 12

0

23

MTD 720-0311

Handle Grip

$15.99

$

In Stock, only 1 left!

0

24

MTD 927-04141

Cylinder, Damper

$104.99

$

In Stock, Qty 6

0

25

MTD 731-04735

Handle Grip

$20.99

$

In Stock, only 1 left!

0

26

MTD 731-05732

Spacer .62 x 1.0

$3.49

$

Usually ships in 3-6 days

0

27

MTD 759-04316

Hand Grip, Soft Touch

$39.99

$

In Stock, only 3 left!

0

27

MTD 731-0274

Hand Grip, 5.0 LG Standard

Note: NLA

$

$

Currently unavailable

28

MTD 932-0334

Compression Spring
(Superseded to 732-0334)

$3.99

$

In Stock, Qty 20+

0

29

MTD 732-0874

Torsion Spring

$4.99

$

In Stock, Qty 6

0

30

MTD 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

31

MTD 936-0272

Flat Washer .53 ID x 1.00 OD x .06
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

32

MTD 936-0275

Flat Washer .34 ID x .688 OD x .065
(Superseded to 736-0275)

$

$

Not available

33

MTD 736-3019

Flat Washer .531 ID x 1.0 OD

$5.99

$

In Stock, Qty 11

0

34

MTD 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$4.49

$

In Stock, Qty 20+

0

35

MTD 938-0296

Shoulder Screw
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

36

MTD 938-0507B

Shoulder Screw .50 Dia.
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

37

MTD 938-0572

Shoulder Screw .375 x 1.16
(Superseded to 738-0572)

$

$

Not available

38

MTD 938-0974

Shoulder Screw .375 x .38:1/4-20
(Superseded to 738-0974)

$

$

Not available

39

MTD 941-0225

Hex Flange Bearing .630 ID

$7.49

$

In Stock, Qty 19

0

40

MTD 741-3074

Flange Bearing .626 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

41

MTD 747-04225A

Lapbar Control Rod

$42.99

$

In Stock, only 1 left!

0

42

MTD 747-04401A

Deck Front Hanger Rod

$58.99

$

In Stock, only 1 left!

0

43

MTD 747-04637

Deck Lift Handle Rod

$51.99

$

In Stock, only 1 left!

0

44

MTD 748-04169-0637

Control Hub
(Superseded to 748-04169A)

$47.99

$

Usually ships in 3-6 days

0

45

MTD 750-04676

Spacer, .385 x .63 x .75

$20.99

$

In Stock, only 2 left!

0

46

MTD 732-04420

Torsion Spring LH

$20.99

$

In Stock, only 1 left!

0

47

MTD 732-04421

Torsion Spring RH

$20.99

$

Usually ships in 3-6 days

0
