RZT-50 (17AI2ACP056) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2008 & Before) Operators Platform 2008 Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

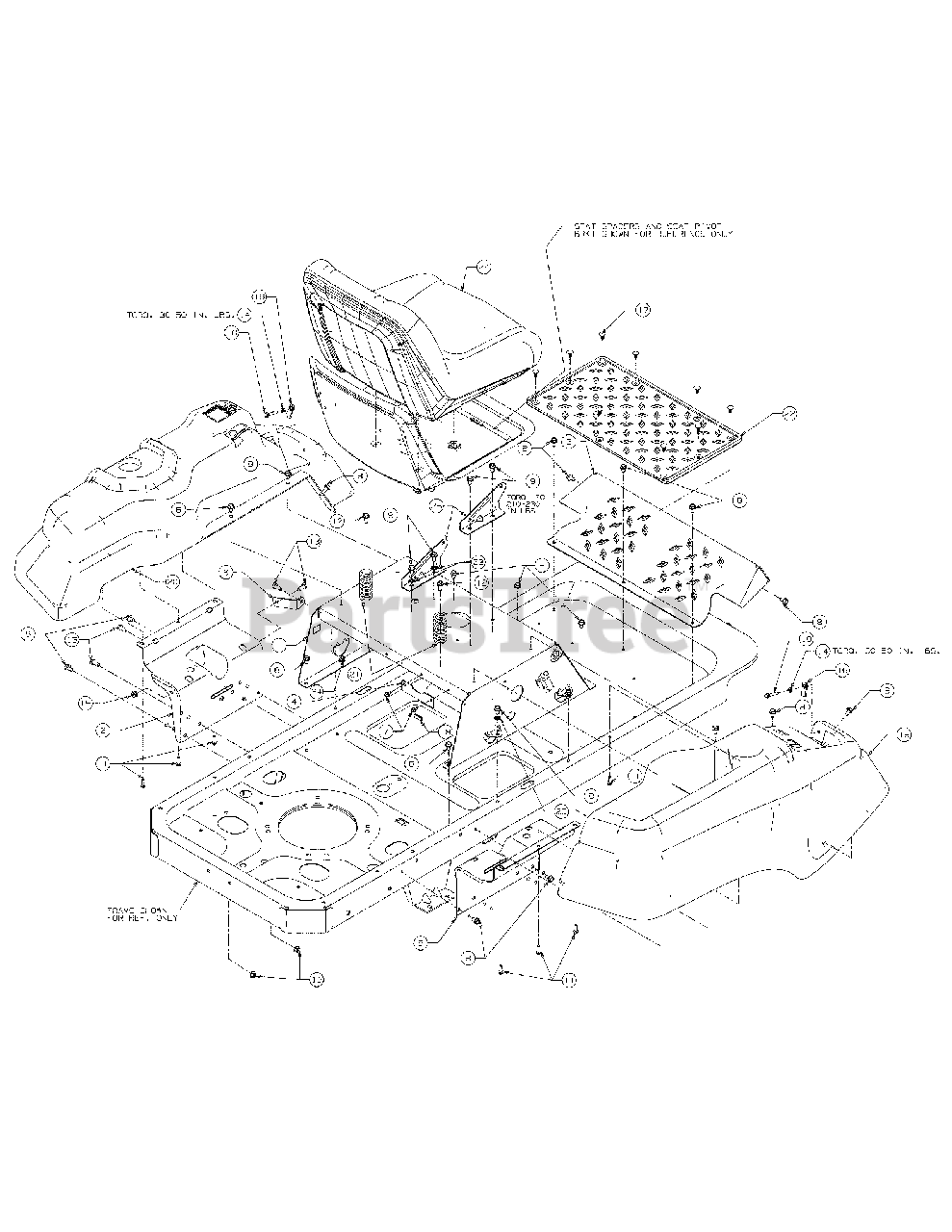

Operators Platform 2008 Parts Diagram

  • Title
1

Cub Cadet 603-04447A

Seat Box Frame

Variations

Cub Cadet 603-04447A-0606

FRAME ASM-SEAT RZT - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 603-04447A-0638

FRAME ASM-SEAT RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 603-04447A-0650

FRAME ASM-SEAT RZT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 603-04447A-0691

FRAME ASM-SEAT RZT - BLACK JACK (0691)

$

$

Not available

Cub Cadet 603-04447A-4015

FRAME ASM-SEAT RZT - FIRE RED (4015)

$

$

Not available

Cub Cadet 603-04447A-4021

FRAME ASM-SEAT RZT - CUB YELLOW 2 (4021)

$

$

Not available

$

$

2

Cub Cadet 603-04564

Left Hand Console Bracket

Variations

Cub Cadet 603-04564-0606

BRACKET-LH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 603-04564-0637

BRACKET-LH CONSOLE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-04564-0638

BRACKET-LH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 603-04564-0650

BRACKET-LH CONSOLE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 603-04564-0691

BRACKET-LH CONSOLE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 603-04564-4015

BRACKET-LH CONSOLE - FIRE RED (4015)

$

$

Not available

Cub Cadet 603-04564-4021

BRACKET-LH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 603-04564-4033

BRACKET-LH CONSOLE - FLINT MICA (4033)

$

$

Not available

Cub Cadet 603-04564-4038

BRACKET-LH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

3

Cub Cadet 703-05373B

Foot Rest Bracket

Variations

Cub Cadet 703-05373B-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 703-05373B-0637

BRACKET:FOOT REST - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-05373B-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 703-05373B-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

Cub Cadet 703-05373B-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 703-05373B-0691

BRACKET:FOOT REST - BLACK JACK (0691)

$

$

Not available

Cub Cadet 703-05373B-0709

BRACKET-FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 703-05373B-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-05373B-4015

BRACKET:FOOT REST - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-05373B-4021

BRACKET-FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 703-05373B-4033

BRACKET-FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

4

Cub Cadet 703-05894

Battery Hold Down Bracket
(Superseded to 703-05894-0637)

Variations

Cub Cadet 703-05894-0637

Battery Hold-Down Bracket - POWDER BLACK (0637)

$29.99

$

In Stock, only 2 left!

0

$29.99

$

In Stock, only 2 left!

0

5

Cub Cadet 703-06451

Right Hand Console Bracket

Variations

Cub Cadet 703-06451-4021

BRACKET-RH CONSOLE - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 703-06451-0606

BRACKET-RH CONSOLE - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 703-06451-0637

BRACKET-RH CONSOLE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-06451-0638

BRACKET-RH CONSOLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 703-06451-0650

BRACKET-RH CONSOLE - RED METALLIC (0650)

$

$

Not available

Cub Cadet 703-06451-0691

BRACKET-RH CONSOLE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 703-06451-4015

BRACKET-RH CONSOLE - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-06451-4033

BRACKET-RH CONSOLE - FLINT MICA (4033)

$

$

Not available

Cub Cadet 703-06451-4038

BRACKET-RH CONSOLE - DAY ORANGE (4038)

$

$

Not available

$

$

6

Cub Cadet 703-06623

Fuel Tank Support Bracket
(Superseded to 703-06623-0637)

Variations

Cub Cadet 703-06623-0637

BRACKET-SUPPORT FU - POWDER BLACK (0637)

$

$

Not available

$

$

7

Cub Cadet 710-0599

Hex Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0604A

Hex Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0726

Hex Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0788

Hex Screw, 1/4-20 x 1.5

$7.49

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0895

Hex Screw, 1/4-15 x .75

$6.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-1260A

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0298

Hex Nut, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04092

U-Type Nut 1/4

$5.99

$

In Stock, only 2 left!

0

17

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

18

Cub Cadet 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 731-06233

Right Hand Console

$

$

Not available

20

Cub Cadet 731-06263

Left Hand Console
(Superseded to 731-06263B)

$117.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 732-04035

Compression Spring, 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

22

Cub Cadet 735-04082

Foot Pad
(Superseded to 735-04082C)

$50.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0148

External Tooth Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

$

$

Not available

25

Cub Cadet 783-1489C

Seat Mount Bracket

Variations

Cub Cadet 783-1489C-0638

USE 783-1489D-0638 BRACKET-MO - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1489C-0716

USE 783-1489D-0716 BRACKET-MO - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-4015

USE 783-1489D-4015 BRACKET-MO - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1489C-4021

USE 783-1489D-4021 BRACKET-MO - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-1999

Choke Plug

Note: Not Shown

$10.99

$

Usually ships in 3-6 days

0
