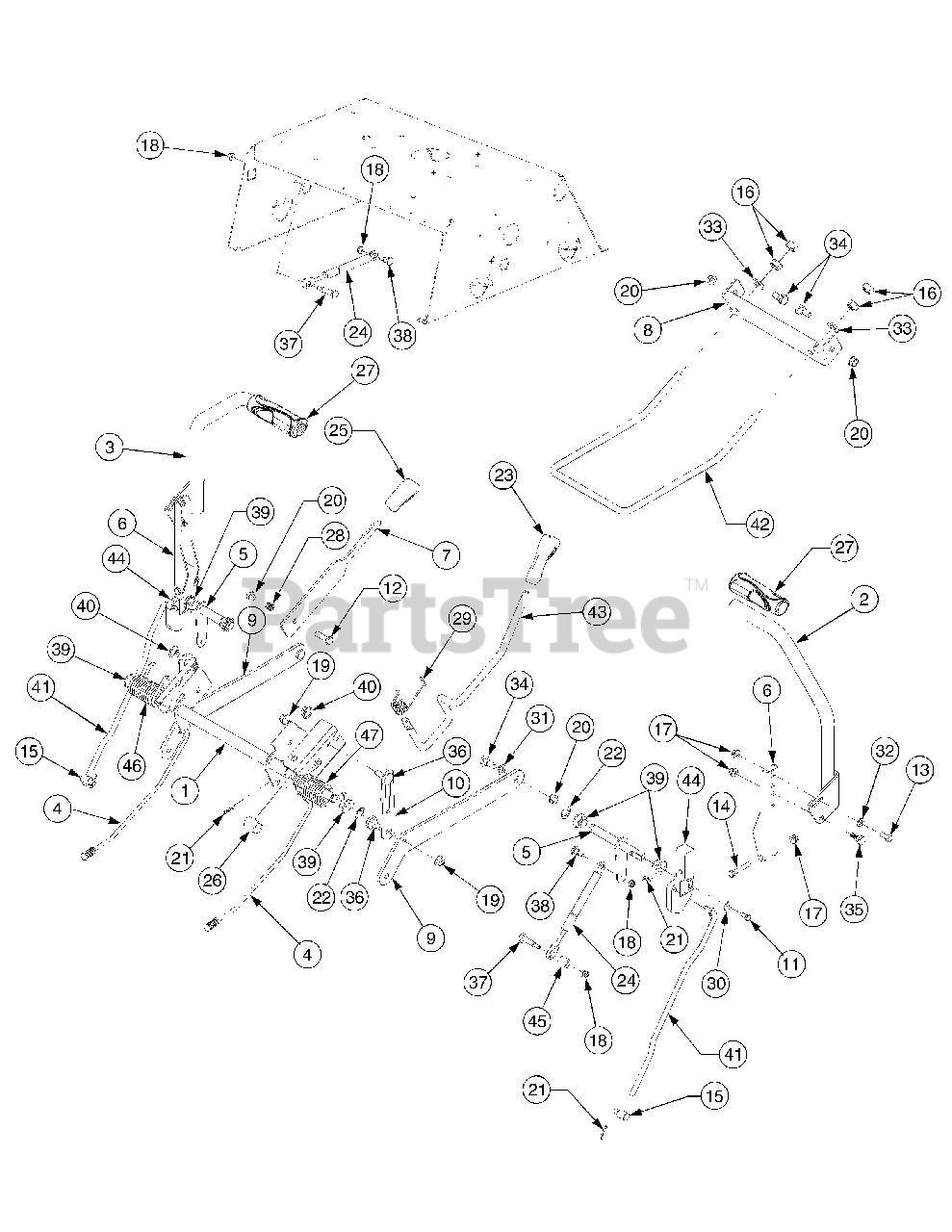

RZT-50 (17AI2ACP056) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2008 & Before) Deck Lift & Controls 2007 & Before Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

Deck Lift & Controls 2007 & Before Parts Diagram

  • Title

1

Cub Cadet 603-04160B

Shaft Assembly, Deck Lift
(Superseded to 603-04160C-0637)

Variations

Cub Cadet 603-04160B-0637

USE 603-04160C-0637 SHAFT ASM - POWDER BLACK (0637)

$161.99

$

Usually ships in 3-6 days

0

$161.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04322

Lever, Lapbar, RH

Variations

Cub Cadet 603-04322-0637

Right Lapbar Handle - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-04322-0662

HANDLE-RH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 603-04322-4021

HANDLE-RH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 603-04322-0638

HANDLE-RH LAPBAR - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 603-04322-0709

HANDLE-RH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 603-04322-4038

HANDLE-RH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$

$

3

Cub Cadet 603-04324

Lever, Lapbar, LH

Variations

Cub Cadet 603-04324-0637

Left Lapbar Handle - POWDER BLACK (0637)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04324-0638

HANDLE-LH LAPBAR - MTD/TROY-BILT RED (0638)

$75.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04324-0662

HANDLE-LH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 603-04324-4021

HANDLE-LH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 603-04324-0709

HANDLE-LH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 603-04324-4038

HANDLE-LH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$65.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 947-04065

Rod, Brake

$39.99

$

In Stock, only 1 left!

0

5

Cub Cadet 647-04099

Shaft, Control
(Superseded to 647-04099A)

$91.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-05387A

Bracket, Lapbar Pivot
(Superseded to 703-05387B)

$28.99

$

In Stock, Qty 5

0

7

Cub Cadet 703-05396

Handle, Brake
(Superseded to 703-05396A-0637)

Variations

Cub Cadet 703-05396-0637

Brake Handle - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05414A

Bracket, Front Deck Hanger

Variations

Cub Cadet 703-05414A-0606

BRACKET-DECK HANGER - MAJESTIC ORANGE (0606)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4021

Hanger Deck Bracket - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0650

BRACKET-DECK HANGER - RED METALLIC (0650)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4033

Hanger Deck Bracket - FLINT MICA (4033)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4044

BRACKET-DECK HANGER - CRAFTSMAN RED (4044)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0637

BRACKET-DECK HANGER - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0638

BRACKET-DECK HANGER - MTD/TROY-BILT RED (0638)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0674

BRACKET-DECK HANGER - YARDMAN YELLOW (0674)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0709

BRACKET-DECK HANGER - MASTERCRAFT GREEN (0709)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0716

BRACKET-DECK HANGER - CUB YELLOW-99 (0716)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4015

BRACKET-DECK HANGER - FIRE RED (4015)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-05793A

Arm, Deck Lift

Variations

Cub Cadet 703-05793A-0637

Deck Lift Arm - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-0606

Deck Lift Arm - MAJESTIC ORANGE (0606)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-0638

ARM-DECK LIFT - MTD/TROY-BILT RED (0638)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-0674

ARM-DECK LIFT - YARDMAN YELLOW (0674)

$53.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05793A-0691

Deck Lift Arm - BLACK JACK (0691)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05793A-0716

Deck Lift Arm - CUB YELLOW-99 (0716)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-4015

ARM-DECK LIFT - FIRE RED (4015)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05793A-4021

Deck Lift Arm - CUB YELLOW 2 (4021)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-4033

ARM-DECK LIFT - FLINT MICA (4033)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-4044

ARM-DECK LIFT - CRAFTSMAN RED (4044)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-0650

ARM-DECK LIFT - RED METALLIC (0650)

$53.99

$

In Stock, Qty 7

0

Cub Cadet 703-05793A-0665

ARM-DECK LIFT - YARDMAN GREEN (0665)

$53.99

$

In Stock, Qty 7

0

$43.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-05907

Plate, Lift Link

Variations

Cub Cadet 703-05907-0637

Lift Arm Link - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05907-0606

LINK-LIFT ARM - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 703-05907-0638

LINK-LIFT ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 703-05907-0716

LINK-LIFT ARM - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-05907-0650

LIFT LINK ARM - RED METALLIC (0650)

$

$

Not available

Cub Cadet 703-05907-0665

LIFT LINK ARM - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 703-05907-4015

LINK-LIFT ARM - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-05907-4021

LINK-LIFT ARM - CUB YELLOW 2 (4021)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0433

Screw, Hex Lock, 1/4-20 x .62 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0832

Ferrule, 3/8-24 x .375
(Superseded to 911-0832)

$15.99

$

In Stock, only 4 left!

0

16

Cub Cadet 712-0206

Nut, Hex, 1/2-13 GR5

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04063

Nut, Hx Flange Insert Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04064

Nut, Hx Flange Insert Lck, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Nut, Hx Flange Insert Lck, 3/8-16GrF

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 714-0104

Pin, Internal Cotter

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 716-0106

E-Ring , .625 Dia. Shaft

$4.49

$

In Stock, Qty 12

0

23

Cub Cadet 720-0311

Grip, Handle

$15.99

$

In Stock, only 1 left!

0

24

Cub Cadet 727-04141

Cylinder, Damper
(Superseded to 927-04141)

$104.99

$

In Stock, Qty 6

0

25

Cub Cadet 731-04735

Grip, Handle

$20.99

$

In Stock, only 1 left!

0

26

Cub Cadet 731-05732

Spacer, .62 x 1.0

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-05882

Grip, Hand
(Superseded to 759-04316)

$39.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-0334

Spring, Compression

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 732-04869A

Spring, Torsion RZT

Note: Replaces 732-0874 & 732-04422 in this application

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0272

Washer, Flat, .51 x 1.0 x .06

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

34

Cub Cadet 738-0143

Screw, Shoulder, .498 x .340:3/8-16

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0296

Screw, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 738-0507B

Screw, Shoulder, .5 x .434:3/8-16

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0572

Screw, Shoulder, .374 x 1.16:1/4-20

$7.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 738-0974

Screw, Shoulder, .375 x .38:1/4-20

$10.99

$

In Stock, only 2 left!

0

39

Cub Cadet 741-0225

Bearing, Hex Flange
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

40

Cub Cadet 741-3074

Bearing, Flange, .626 x .938 x .344

$4.99

$

In Stock, Qty 20+

0

41

Cub Cadet 747-04225A

Rod, Lapbar Control

$42.99

$

In Stock, only 1 left!

0

42

Cub Cadet 747-04401A

Rod, Deck Front Hanger

$58.99

$

In Stock, only 1 left!

0

43

Cub Cadet 747-04637

Rod, Deck Lift Handle

$51.99

$

In Stock, only 1 left!

0

44

Cub Cadet 748-04052

Hub, Control

$70.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 750-04676

Spacer, .385 x .63 x .75

$20.99

$

In Stock, only 2 left!

0

46

Cub Cadet 732-04420

Spring, Torsion LH

$20.99

$

In Stock, only 1 left!

0

47

Cub Cadet 732-04421

Spring, Torsion RH

$20.99

$

Usually ships in 3-6 days

0
