RZT-50 (17AI2ACP010) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2010) Electrical Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

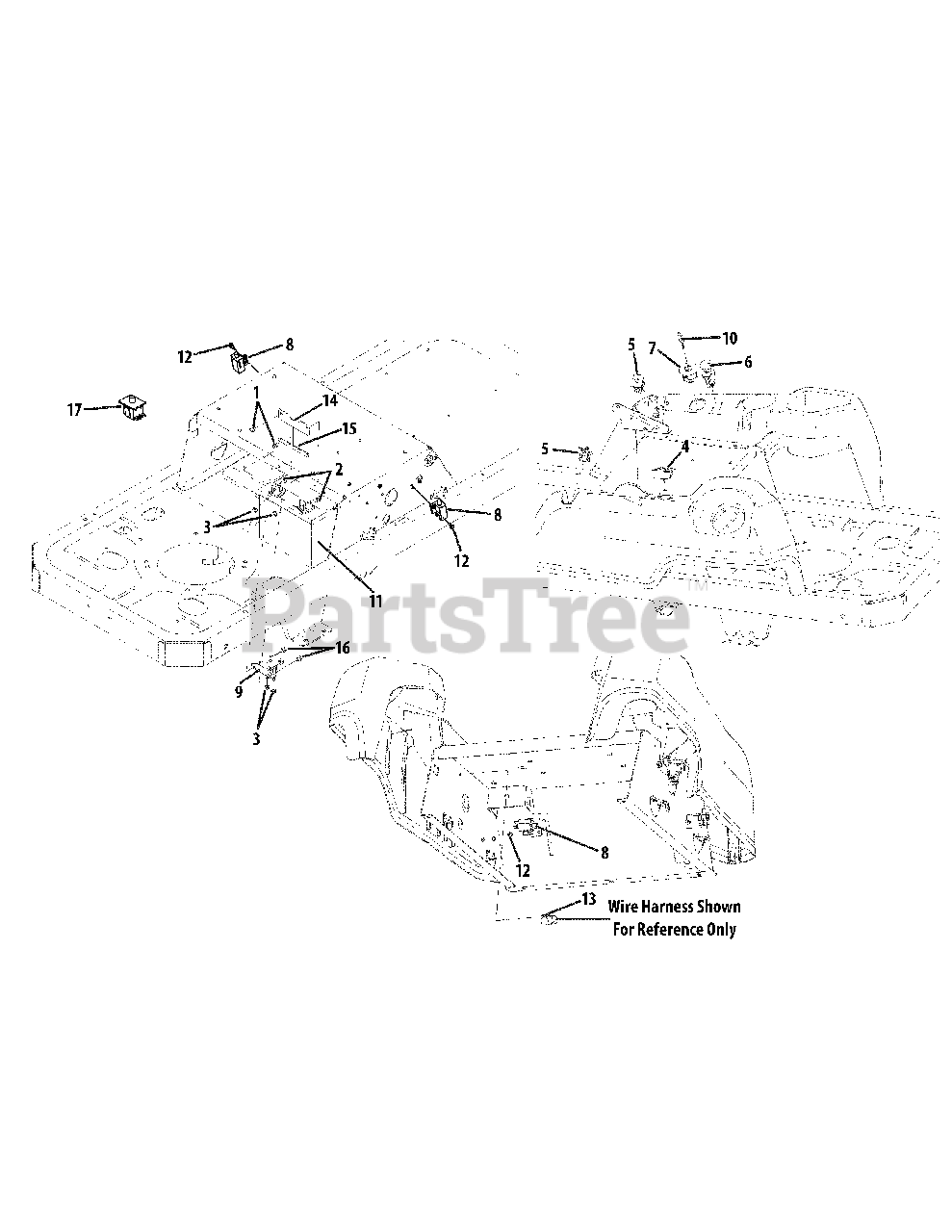

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-0599

Hex Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 925-04022B

Hour Meter

$146.99

$

In Stock, Qty 5

0

5

Cub Cadet 925-04165

Double Pole - Neutral Switch

$32.99

$

In Stock, only 4 left!

0

6

Cub Cadet 925-04174

PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

7

Cub Cadet 925-04228

Ignition Switch

$39.99

$

In Stock, Qty 20+

0

8

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 14

0

9

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

10

Cub Cadet 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

11

Cub Cadet 925-1707D

Battery, 235 CCA

$

$

Not available

12

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

13

Cub Cadet 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-05894-0637

Battery Hold-down

$29.99

$

In Stock, only 2 left!

0

15

Cub Cadet 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet 925-04040

Seat Switch

$36.99

$

In Stock, only 2 left!

0
