RZT-50 (17AI2ACP010) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2009) FR651V-AS05 Control Equipment Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

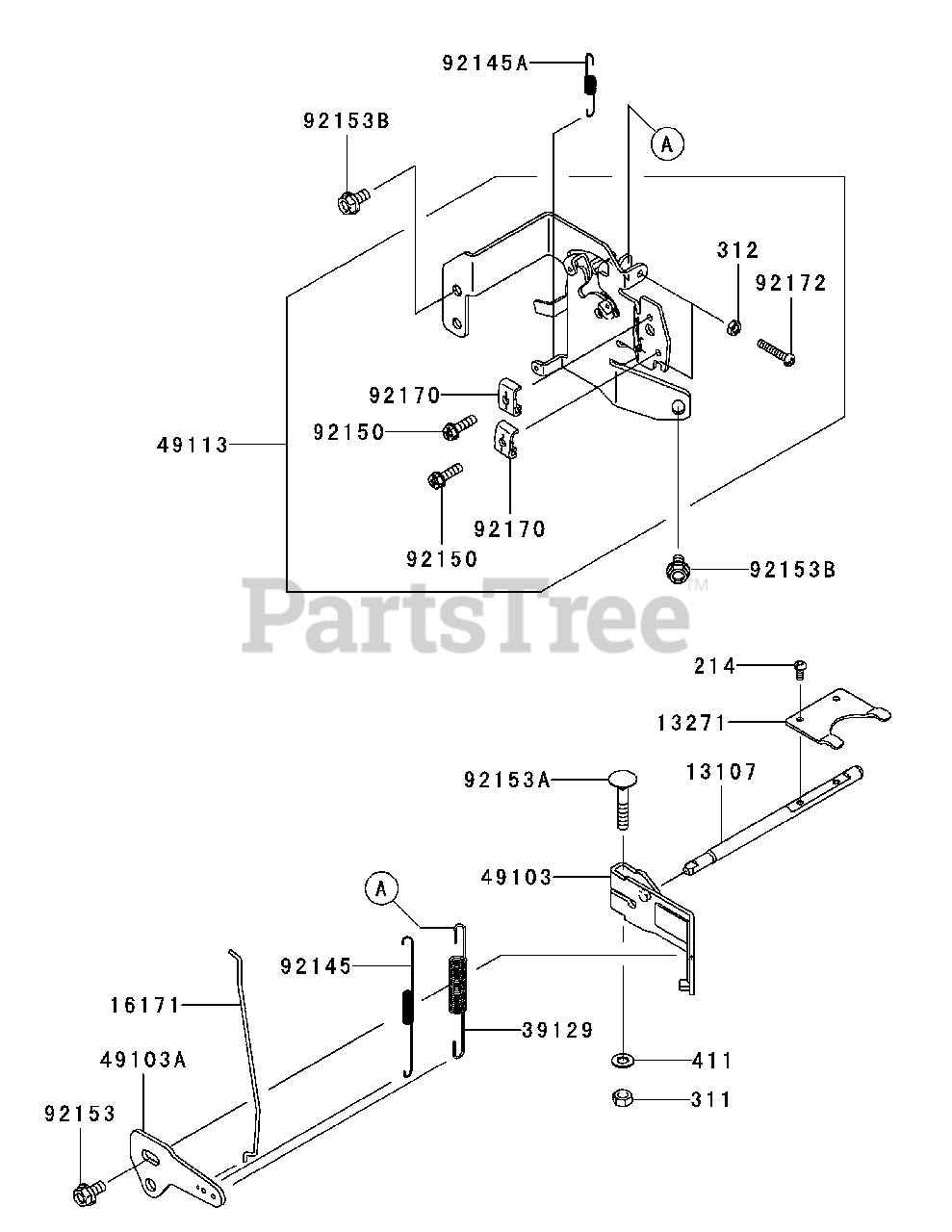

FR651V-AS05 Control Equipment Parts Diagram

  • Title

13107

Cub Cadet KM-13107-7047

Shaft

$11.99

$

In Stock, Qty 12

0

13271

Cub Cadet KM-13271-7038

Plate

$3.49

$

In Stock, Qty 11

0

16171

Cub Cadet KM-16171-7022

Link
(Superseded to KM-16171-0042)

$0.99

$

In Stock, Qty 20+

0

39129

Cub Cadet KM-39129-7028

Governor Spring
(Superseded to KM-39129-7035)

$4.99

$

In Stock, Qty 11

0

49103

Cub Cadet KM-49103-7014

Governor Arm

$5.99

$

In Stock, Qty 20+

0

49103A

Cub Cadet KM-49103-7015

Governor Arm

$3.99

$

In Stock, Qty 20+

0

49113

Cub Cadet KM-49113-7050

Complete Control Panel
(Superseded to KM-49113-0727)

$27.99

$

Usually ships in 2-5 days

0

92145

Cub Cadet KM-92145-7057

Spring
(Superseded to KM-92145-1811)

$3.99

$

In Stock, Qty 20+

0

92145A

Cub Cadet KM-92145-7058

Spring
(Superseded to KM-92145-1812)

$1.99

$

In Stock, Qty 20+

0

92150

Cub Cadet KM-92150-2182

Bolt, 5 X 18

$0.99

$

In Stock, Qty 20+

0

92153

Cub Cadet KM-92153-0009

Bolt, 6 X 12

$1.99

$

In Stock, Qty 20+

0

92153A

Cub Cadet KM-92153-7033

Bolt, 6 X 35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

92153B

Cub Cadet KM-92153-7043

Bolt, 6 X 12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92170

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, Qty 20+

0

92172

Cub Cadet KM-92172-7035

Screw, 5 X 30

$

$

Not available

214

Cub Cadet KM-214AA0408

Pan Screw +-, 4 X 8

$3.99

$

In Stock, Qty 15

0

311

Cub Cadet KM-311AA0600

Hex Nut, 6mm

$0.99

$

In Stock, Qty 20+

0

312

Cub Cadet KM-312AA0500

Hex Nut, 5mm

$0.99

$

In Stock, Qty 6

0

411

Cub Cadet KM-411AA0600

Plain Washer, 6mm

$4.49

$

In Stock, Qty 12

0
