RZT-50 (17AI2ACP010) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2008 & Before) Operators Platform 2007 & Before Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

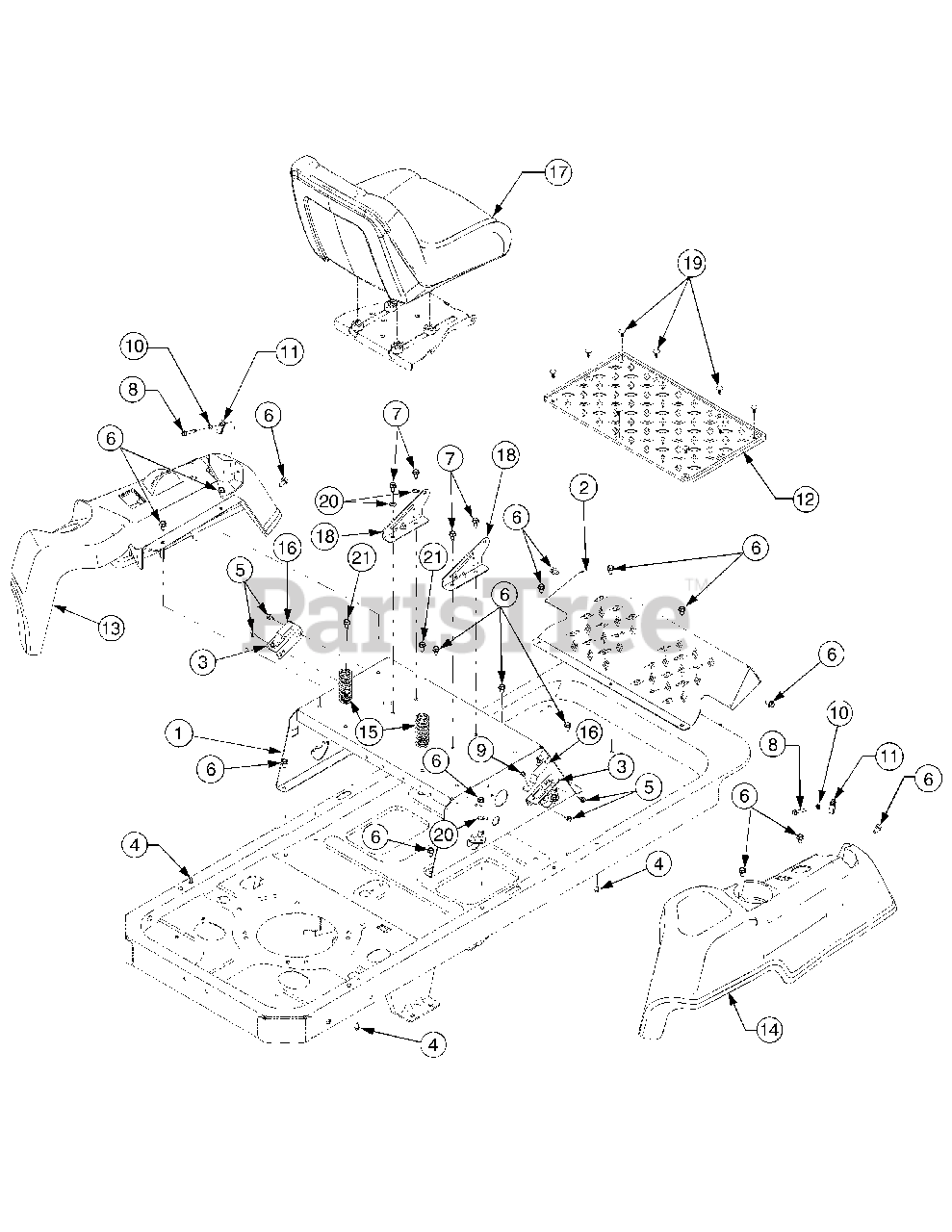

Operators Platform 2007 & Before Parts Diagram

  • Title

1

Cub Cadet 603-04326B

Frame, Seat Box

Variations

Cub Cadet 603-04326B-0606

FRAME-SEAT BOX - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 603-04326B-0638

SEAT BOX FRAME (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 603-04326B-0650

FRAME-SEAT BOX - RED METALLIC (0650)

$

$

Not available

Cub Cadet 603-04326B-0674

SEAT BOX FRAME (YARD-MAN YELLOW) - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 603-04326B-0716

SEAT BOX FRAME (CUB YELLOW) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 603-04326B-4015

FRAME-SEAT BOX - FIRE RED (4015)

$

$

Not available

$

$

1

Cub Cadet 777S32836

Graphic, Warning

Note: not shown

$

$

Not available

1

Cub Cadet 777I22764

Graphic, Park Brake

Note: not shown

$

$

Not available

1

Cub Cadet 777I22763

Graphic, Deck Height

Note: not shown

$

$

Not available

2

Cub Cadet 703-05373B

Bracket, Foot Rest

Variations

Cub Cadet 703-05373B-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 703-05373B-0637

BRACKET:FOOT REST - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-05373B-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 703-05373B-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

Cub Cadet 703-05373B-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 703-05373B-0691

BRACKET:FOOT REST - BLACK JACK (0691)

$

$

Not available

Cub Cadet 703-05373B-0709

BRACKET-FOOT REST - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 703-05373B-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-05373B-4015

BRACKET:FOOT REST - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-05373B-4021

BRACKET-FOOT REST - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 703-05373B-4033

BRACKET-FOOT REST - FLINT MICA (4033)

$

$

Not available

$

$

2

Cub Cadet 777D10716

Graphic, Cub Cadet

Note: not shown

$

$

Not available

2

Cub Cadet 777D10660

Graphic, RZT 50

Note: not shown

$

$

Not available

3

Cub Cadet 703-05467

Bracket, Switch Mounting

Variations

Cub Cadet 703-05467-0606

Switch Mounting Bracket - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 703-05467-0637

Switch Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-05467-0638

Switch Mounting Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 703-05467-0650

Switch Mounting Bracket - RED METALLIC (0650)

$

$

Not available

Cub Cadet 703-05467-0674

Switch Mounting Bracket - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 703-05467-0716

Switch Mounting Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 703-05467-4015

Switch Mounting Bracket - FIRE RED (4015)

$

$

Not available

Cub Cadet 703-05467-4021

Switch Mounting Bracket - CUB YELLOW 2 (4021)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04261

Screw, Hex Wash. Hd Tapp #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp. 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0778

Screw, Hex Wash. Hd. Tapp. 1/4-20 x 1.5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1268

Screw, Hex Wash. Hd Tapp #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0298

Nut, Hex Jam, 1/4-20 GR2
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04092

Nut, U Type Speed, 1/4-20

$5.99

$

In Stock, only 2 left!

0

12

Cub Cadet 735-04082

Pad, Foot
(Superseded to 735-04082C)

$50.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-04662C

Console, LH
(Superseded to 731-04662E)

$

$

Not available

13

Cub Cadet 777I22750

Graphic, Instruction

Note: not shown

$

$

Not available

13

Cub Cadet 777D10554

Graphic, Cub Cadet

Note: not shown

$19.99

$

In Stock, only 1 left!

0

13

Cub Cadet 777I22280

Graphic, Throttle Control
(Superseded to 977I22280)

Note: not shown

$

$

Not available

14

Cub Cadet 731-04663B

Console, RH
(Superseded to 731-04663D)

$73.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 777I22753

Graphic, Instruction

$

$

Not available

14

Cub Cadet 777D10555

Graphic, Cub Cadet

$

$

Not available

15

Cub Cadet 732-04035

Spring, Compression, 1.28 x 3.125

$10.99

$

In Stock, only 3 left!

0

16

Cub Cadet 732-04200

Spring, Switch Actuator

$10.99

$

In Stock, Qty 7

0

17

Cub Cadet 757-04041

Seat

$

$

Not available

18

Cub Cadet 783-1489C

Bracket, Seat Pivot

Variations

Cub Cadet 783-1489C-0638

USE 783-1489D-0638 BRACKET-MO - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-0650

Seat Mounting Bracket - RED METALLIC (0650)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1489C-0716

USE 783-1489D-0716 BRACKET-MO - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

Cub Cadet 783-1489C-4015

USE 783-1489D-4015 BRACKET-MO - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1489C-4021

USE 783-1489D-4021 BRACKET-MO - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 1 left!

0

$19.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 726-3046

Clip, Ratchet

$3.99

$

In Stock, Qty 15

0

20

Cub Cadet 736-0148

Washer, External Tooth, 3/8

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0
