RZT-50 (17AF2ACP897) - Columbia 50" Zero-Turn Mower (2011) Rear Drive & Wheels, 50-Inch Parts Diagram

50" Zero-Turn Mower

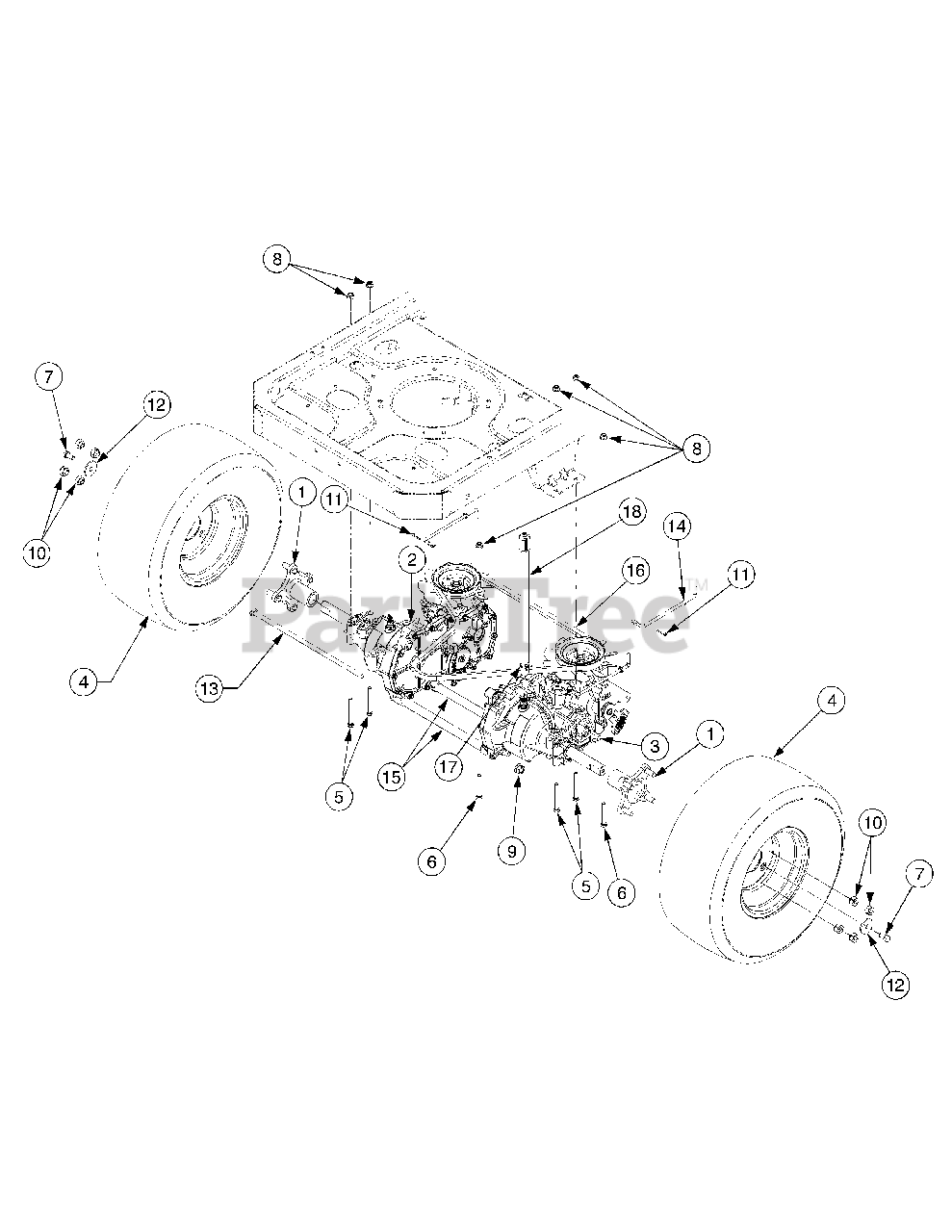

Rear Drive & Wheels, 50-Inch Parts Diagram

  • Title

1

MTD 918-04317

Wheel Hub

$116.99

$

In Stock, only 1 left!

0

2

MTD 918-04431A

Transmission Ass'y, LH
(Superseded to 918-04431B)

$1719.99

$

Usually ships in 3-6 days

0

3

MTD 918-04432A

Transmission Ass'y, RH
(Superseded to 918-04432B)

$1805.99

$

Usually ships in 3-6 days

0

4

MTD 634-04293

Wheel Assembly Complete 18 x 8.5 x 8

Variations

MTD 634-04293-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$132.99

$

Usually ships in 3-6 days

0

MTD 634-04293-0916

WHEEL ASM COMPLETE - Kenda Gray (0916)

$132.99

$

Usually ships in 3-6 days

0

MTD 634-04293-0931

WHEEL ASM COMPLETE - Carlisle Beige (0931)

$132.99

$

Usually ships in 3-6 days

0

MTD 634-04293-0961

Wheel Assembly, Gray - Carlisle Gray (0961)

$138.99

$

Usually ships in 3-6 days

0

MTD 634-04293-0936

WHEEL ASM COMPLETE - Kenda Beige (0936)

$132.99

$

Usually ships in 3-6 days

0

MTD 634-04293-0966

Wheel Assembly - Kenda Gray (0966)

$138.99

$

Usually ships in 3-6 days

0

$123.99

$

Usually ships in 3-6 days

0

4

MTD 734-04246-0901

Tire Only 18 x 8.5 x 8
(Superseded to 734-04246-0906)

Note: Not shown

$85.99

$

In Stock, only 2 left!

0

4

MTD 603-04173

Rim Only 18 x 8.5 x 8

Note: Not shown

Variations

MTD 603-04173-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$88.99

$

Usually ships in 3-6 days

0

MTD 603-04173-0662

Rim Assembly, Rear - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 603-04173-0674

Rim Assembly, Rear - YARDMAN YELLOW (0674)

$82.99

$

Usually ships in 3-6 days

0

MTD 603-04173-4042

RIM ASM-REAR - CRAFTSMAN GRAY (4042)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

In Stock, only 2 left!

0

4

MTD 934-0255

Valve 18 x 8.5 x 8

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

4

MTD 634-04128

Wheel Assembly Complete 18 x 9.5 x 8

Variations

MTD 634-04128-0961

WHEEL ASM COMPLETE - Carlisle Gray (0961)

$266.99

$

Usually ships in 3-6 days

0

MTD 634-04128-0966

WHEEL ASM COMPLETE - Kenda Gray (0966)

$266.99

$

Usually ships in 3-6 days

0

MTD 634-04128-0499

Wheel Assembly, Complete - CUB BEIGE (0499)

$

$

Not available

MTD 634-04128-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

MTD 634-04128-0936

Wheel Assembly, Beige - Kenda Beige (0936)

$

$

Not available

MTD 634-04128-0662

Wheel Assembly, Gray - OYSTER GRAY (0662)

$

$

Not available

MTD 634-04128-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$

$

Not available

MTD 634-04128-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$

$

Not available

$286.99

$

In Stock, only 2 left!

0

4

MTD 734-1729

Tire Only 18 x 9.5 x 8

Note: Not shown

Variations

MTD 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

MTD 734-1729-0901

Turf Saver Tire, 18 X 9.5-8 Sq - Carlisle (0901)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

4

MTD 603-04175

Rim Only 18 x 9.5 x 8

Note: Not shown

Variations

MTD 603-04175-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$88.99

$

In Stock, only 2 left!

0

MTD 603-04175-4042

RIM ASM-REAR - CRAFTSMAN GRAY (4042)

$88.99

$

In Stock, only 1 left!

0

MTD 603-04175-0662

Rim Assembly, Rear - OYSTER GRAY (0662)

$

$

Not available

$72.99

$

Usually ships in 3-6 days

0

4

MTD 934-0255

Valve 18 x 9.5 x 8

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0176

Hex Screw 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

MTD 710-0395

Hex Bolt 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

MTD 710-3119

Hex Cap Lock Screw. 3/8-16 x .75 Gr. 5

$6.99

$

In Stock, only 1 left!

0

8

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3050

Lub Nut, 7/16-14

$9.99

$

In Stock, only 2 left!

0

11

MTD 714-04040

Bow Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

MTD 936-0227

Flat Washer .39 ID x 1.5 OD x .135
(Superseded to 736-0227)

$

$

Not available

13

MTD 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$21.99

$

Usually ships in 3-6 days

0

14

MTD 747-04217C-0637

Rod, Bypass

$21.99

$

Usually ships in 3-6 days

0

15

MTD 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

16

MTD 954-04043A

V-Belt, Type A Sec x 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

MTD 732-04448

Neutral Return Spring

Note: Not shown

$10.99

$

In Stock, Qty 19

0
