RZT-50 (17AD2ACP004) - MTD Gold Zero-Turn Mower (2008) (Ace Hardware) Frame Parts Diagram

Gold Zero-Turn Mower

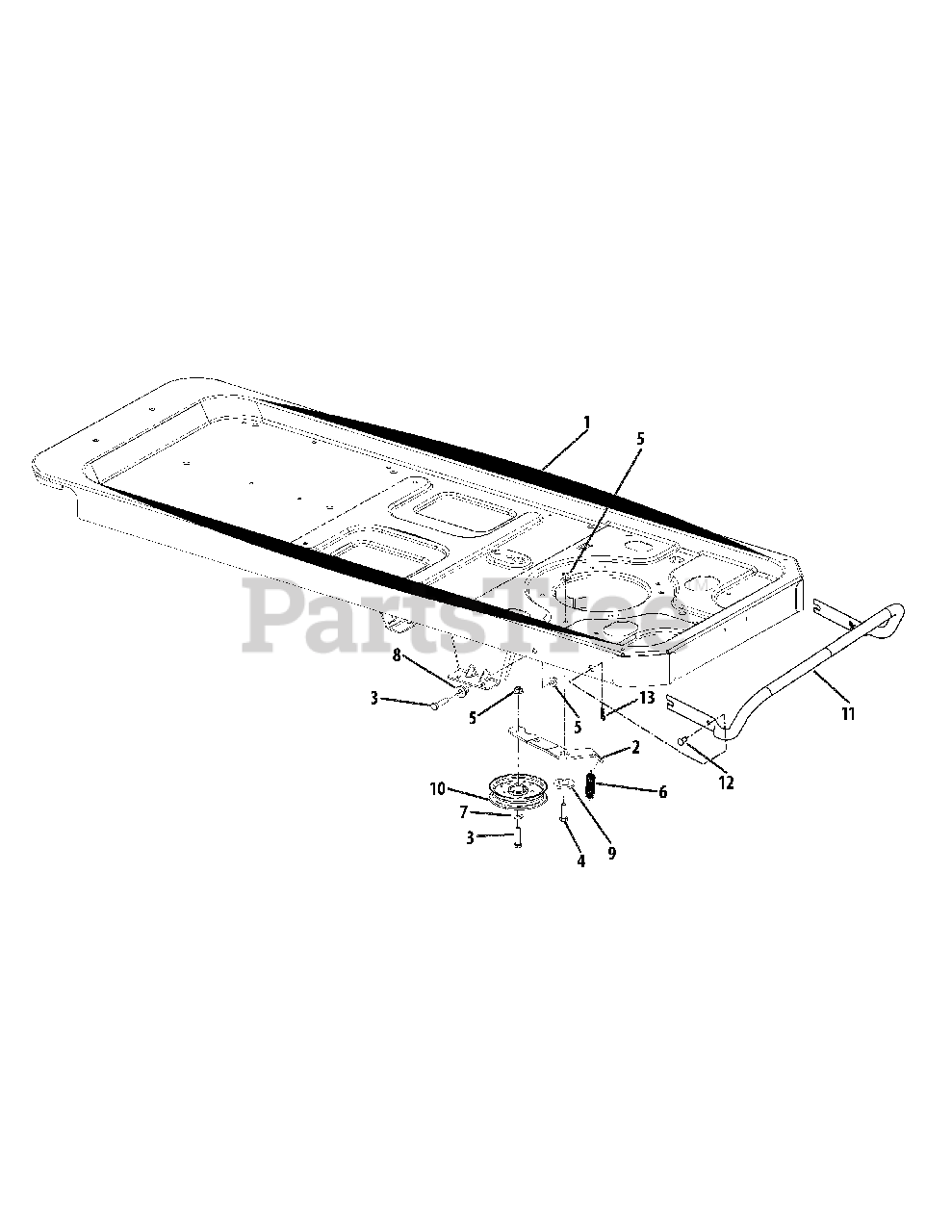

Frame Parts Diagram

  • Title

1

MTD 603-04303E

Frame Assembly

Variations

MTD 603-04303E-0606

FRAME ASM-RZT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04303E-0638

FRAME ASM-RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04303E-0650

FRAME-ASSY RZT - RED METALLIC (0650)

$

$

Not available

MTD 603-04303E-0691

FRAME ASM-RZT - BLACK JACK (0691)

$

$

Not available

MTD 603-04303E-4015

FRAME ASM-RZT - FIRE RED (4015)

$

$

Not available

MTD 603-04303E-4021

FRAME ASM-RZT - CUB YELLOW 2 (4021)

$

$

Not available

$

$

2

MTD 703-05829

Drive Idler Arm

Variations

MTD 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

3

MTD 710-0520

Hex Cap Screw,3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

4

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 9

0

5

MTD 712-04065

Hex Insert Flangelock Nut, 3/8 -16

$3.99

$

In Stock, Qty 17

0

6

MTD 732-0626

Extension Spring, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

MTD 736-0300

Flat Washer, .408 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

8

MTD 738-04058

Shoulder Spacer, .39 x 1.0 x .7

$4.49

$

Usually ships in 3-6 days

0

9

MTD 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

10

MTD 756-04129

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

11

MTD 749-04358

Bumper Tube

Note: (54")

Variations

MTD 749-04358-0637

BUMPER-REAR RZT - POWDER BLACK (0637)

$

$

Not available

MTD 749-04358-0638

BUMPER-REAR RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

12

MTD 711-0332

Clevis Pin, .50 x .78
(Superseded to 911-0332)

Note: (54")

$16.99

$

In Stock, Qty 17

0

13

MTD 714-04023

Cotter Pin, .080 x 1.5625

Note: (54")

$4.49

$

In Stock, Qty 20+

0
