RZT-50 (17AA5D7P710) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2006) Lubrication Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

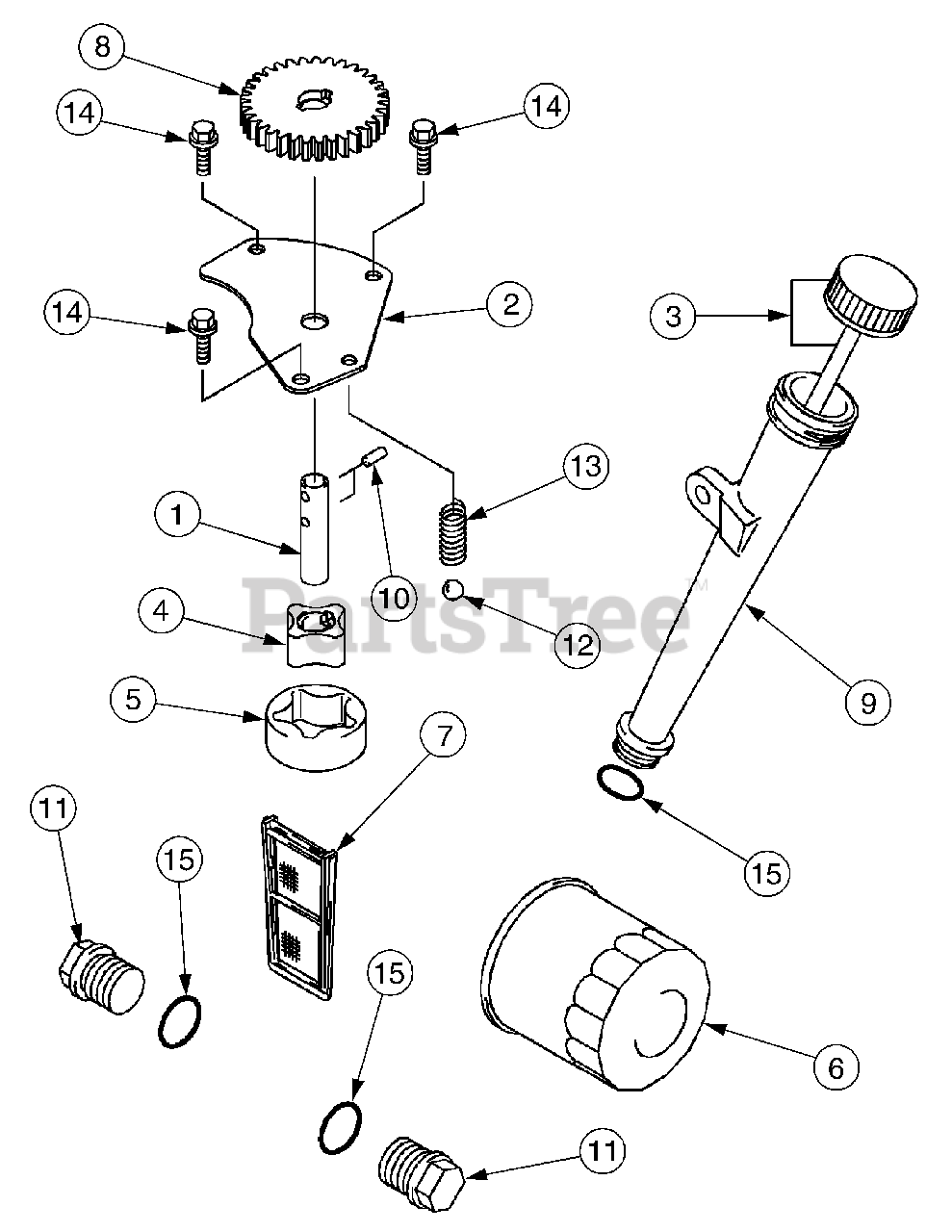

Lubrication Parts Diagram

  • Title

1

Cub Cadet KM-13107-7009

Shaft
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 3 left!

0

2

Cub Cadet KM-13271-7005

Plate

$3.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-14075-7008

Dipstick Assembly

$11.99

$

In Stock, Qty 14

0

4

Cub Cadet KM-16154-7007

Rotor, Pump, (In)

$8.49

$

In Stock, Qty 6

0

5

Cub Cadet KM-16154-7008

Rotor, Pump, (Out)

$19.99

$

In Stock, only 3 left!

0

6

Cub Cadet KM-49065-2078

Filter, Oil
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-49065-7003

Filter, Oil

$3.99

$

In Stock, Qty 14

0

8

Cub Cadet KM-59051-7011

Gear, Spur

$65.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-59231-7006

Tube, Dipstick/Oil Fill

$7.49

$

In Stock, Qty 12

0

10

Cub Cadet KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 11

0

11

Cub Cadet KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, Qty 13

0

13

Cub Cadet KM-92145-7002

Spring

$

$

Not available

14

Cub Cadet KM-130G0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-670D2016

O-Ring, 16mm

$1.99

$

In Stock, Qty 20+

0
