RZT-50 (17AA5B7P710) - Cub Cadet 50" RZT Zero-Turn Mower, Kohler (2006) Cylinder Heads Parts Diagram

50" RZT Zero-Turn Mower, Kohler

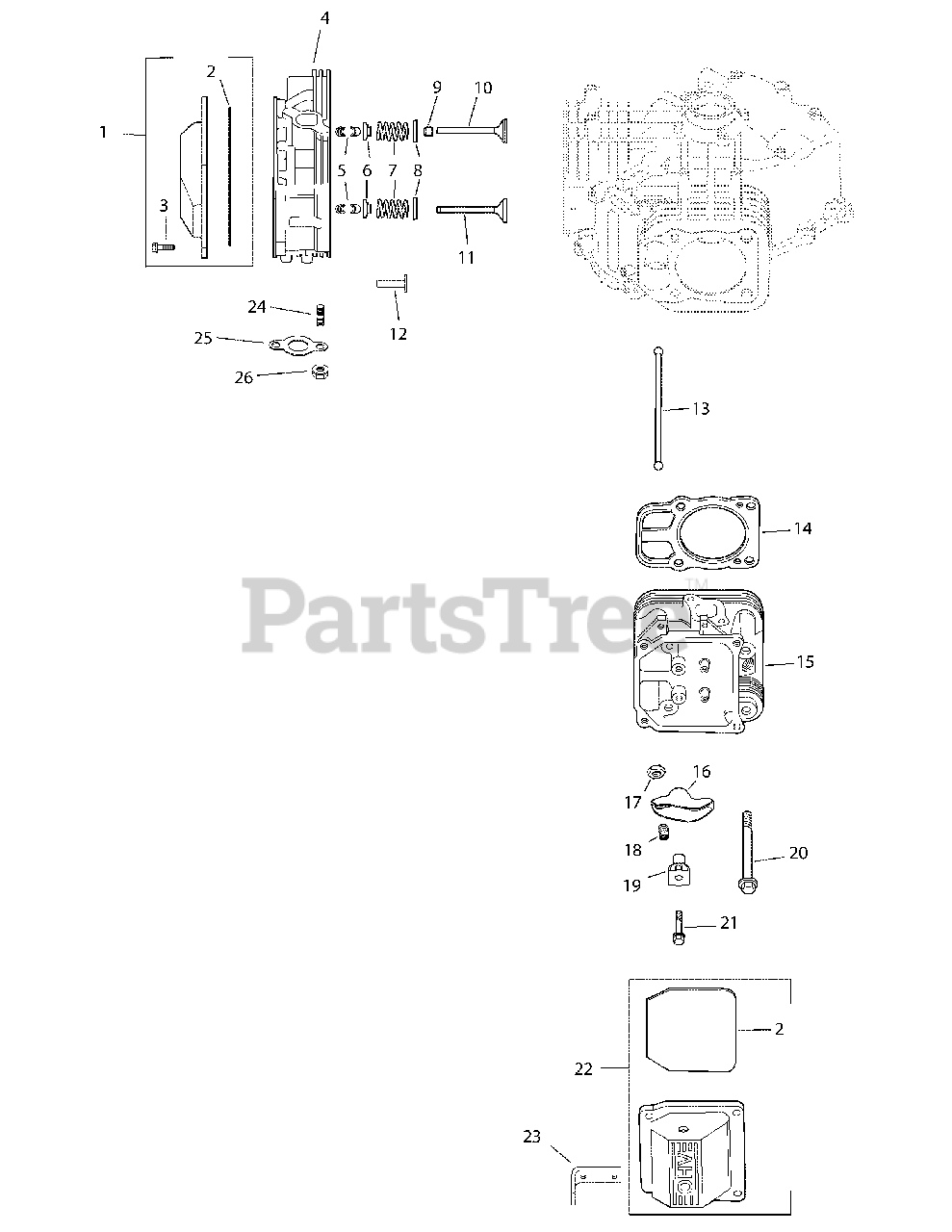

Cylinder Heads Parts Diagram

  • Title
1

Cub Cadet KH-24-755-141-S

Kit, valve cover - plain (Includes 2,3)

$35.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-24-153-28-S

O-Ring
(Superseded to KH-24-153-30-S)

$11.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-M-651030-S

Screw, hex. flange M6x1.0x30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-32-318-01-S

Head assembly, #1 cylinder
(Superseded to KH-32-755-39-S)

$

$

Not available

5

Cub Cadet KH-12-755-03

Kit, retainer

$5.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-12-173-01

Cap, valve spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

7

Cub Cadet KH-24-089-02

Spring, valve

$

$

Not available

8

Cub Cadet KH-235011-S

Retainer, spring

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-66-032-05-S

Seal, valve stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-017-01

Valve, intake (Std.)

$

$

Not available

Cub Cadet KH-24-017-02

Valve, intake (.25)

$

$

Not available

11

Cub Cadet KH-24-016-01

Valve, exhaust (Std.)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-016-02

Valve, exhaust (.25

$

$

Not available

12

Cub Cadet KH-32-019-01-S

Tappet
(Superseded to KH-32-019-02-S)

$13.99

$

In Stock, only 3 left!

0

$3.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-841-03-S

Kit, cylinder head gasket
(Superseded to KH-24-841-04-S)

Note: Includes head mounting hardware & KH-24-041-49-s, KH-24-153-27-S

$45.99

$

In Stock, Qty 20+

0

15

Cub Cadet KH-32-318-02-S

Head assembly, #2 cylinder
(Superseded to KH-32-318-14-S)

$

$

Not available

16

Cub Cadet KH-32-186-02-S

Arm, rocker
(Superseded to KH-32-755-06-S)

$31.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-32-100-04-S

Nut, hex. M10x0.75

$39.99

$

Usually ships in 2-5 days

0

18

$3.49

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-32-599-02-S

Pivot, rocker arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-12-086-16

Screw,Hex. flange M10x1.5x90
(Superseded to KH-62-086-08-S)

$5.99

$

In Stock, Qty 5

0

21

Cub Cadet KH-32-086-04-S

Screw, hex. flange M6x1.0x45

$

$

Not available

22

Cub Cadet KH-32-096-06-S

Kit, valve cover - breather (Includes 2)

$29.99

$

In Stock, only 1 left!

0

23

Cub Cadet KH-24-445-01

Strap, lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

24

Cub Cadet KH-25-072-04

Stud, M8x1.25x33
(Superseded to KH-25-072-24-S)

$3.99

$

In Stock, only 3 left!

0

25

Cub Cadet KH-24-041-49-S

Gasket, exhaust manifold

$

$

Not available

Cub Cadet KH-20-041-12-S

Gasket, Exhaust

$4.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-M-841080

Nut, hex. flange M8x1.25
(Superseded to 712-3086)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet KH-32-755-01-S

Kit, Gasket Set
(Superseded to KH-32-755-09-S)

Note: Not Shown

$103.99

$

Usually ships in 2-5 days

0
