RZT 48 x (967671001-00) - RedMax 48" Zero-Turn Riding Mower (2019-02) ENGINE PLATE Parts Diagram

48" Zero-Turn Riding Mower

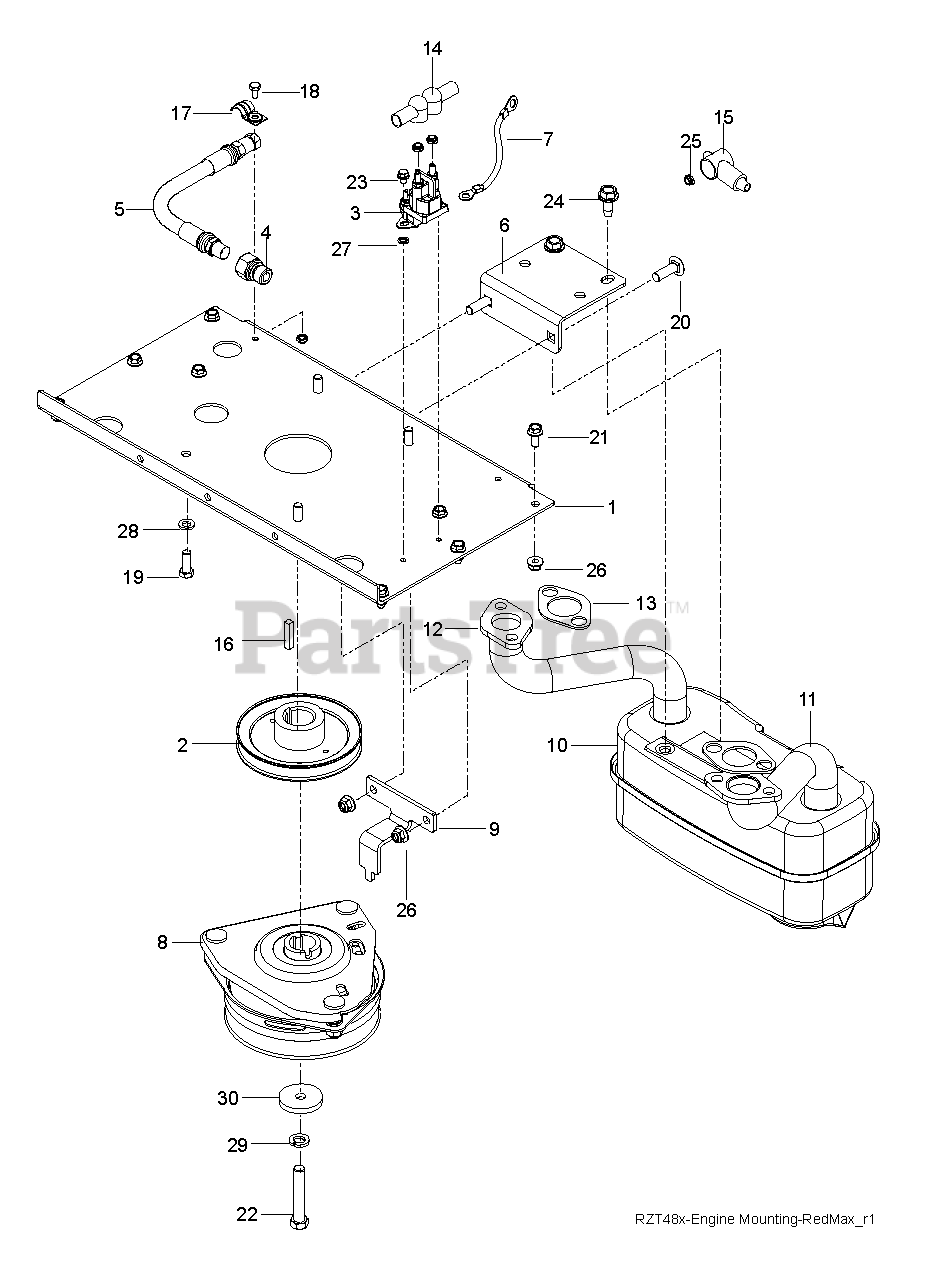

ENGINE PLATE Parts Diagram

  • Title

1

RedMax 586651402

PLATE.PNT.ENGINE.E-DIP

$37.99

$

Usually ships in 3-10 days

0

2

RedMax 585813701

PULLEY.DRIVE.XMSN

$37.99

$

Usually ships in 3-10 days

0

3

RedMax 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

4

RedMax 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599003)

$10.99

$

Usually ships in 3-10 days

0

5

RedMax 584825501

HOSE.ASSEMBLY.OIL.DRAIN

$31.99

$

In Stock, only 1 left!

0

6

RedMax 575229902

BRKT, MUFFLER, BLK

$34.99

$

Usually ships in 3-10 days

0

7

RedMax 539102757

CABLE POSITIVE

$15.99

$

Usually ships in 3-10 days

0

8

RedMax 532179335

CLUTCH MZ ZTR GT.48/54"1.125"
(Superseded to 532414737)

$338.99

$

In Stock, Qty 20+

0

9

RedMax 585813602

BRACKET.CLUTCH.STOP.PNTX431

$7.99

$

Usually ships in 3-10 days

0

10

RedMax 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 1 left!

0

11

RedMax 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

12

RedMax 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

13

RedMax 586839701

GASKET.EXHAUST.KAWASAKI
(Superseded to 532178151)

$2.49

$

In Stock, Qty 20+

0

14

RedMax 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

15

RedMax 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

16

RedMax 539912757

KEY, 1/4 SQ X 1 1/4

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

18

RedMax 539990071

HCS 1/4-20.

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 539990563

HCS 3/8-16X1.GRD.5.ZD
(Superseded to 596564401)

$4.99

$

In Stock, Qty 11

0

20

RedMax 539107271

RHSSNB 5/16C X 1.0

$3.99

$

In Stock, only 1 left!

0

21

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 581332802

CLUTCH BOLT7/16-20X2.5 GR596HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 9

0

23

RedMax 539990302

HWST 1/4C X 3/8

$

$

Not available

24

RedMax 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

25

RedMax 539108120

JAM NUT 1/4C (2 2 PW01)

$3.99

$

Usually ships in 3-10 days

0

26

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

RedMax 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

28

RedMax 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

29

RedMax 539990247

WASHER 7/16 LOCK
(Superseded to 596238901)

$3.99

$

In Stock, Qty 20+

0

30

RedMax 539106504

SPINDLE WASHER
(Superseded to 596770301)

$5.99

$

In Stock, Qty 20+

0

RedMax 532198316

PIGTAIL.MATNLK.OLD.HARN

$10.99

$

In Stock, only 1 left!

0

RedMax 000000000

Note: Engine, Kawasaki FR691V 17.1 kW (23 hp). For engine replacement parts, see a Kawasaki dealer.

$

$

Not available
