RZT 48 (967672001-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) MOWER LIFT / DECK LIFT Parts Diagram

48" Zero-Turn Riding Mower

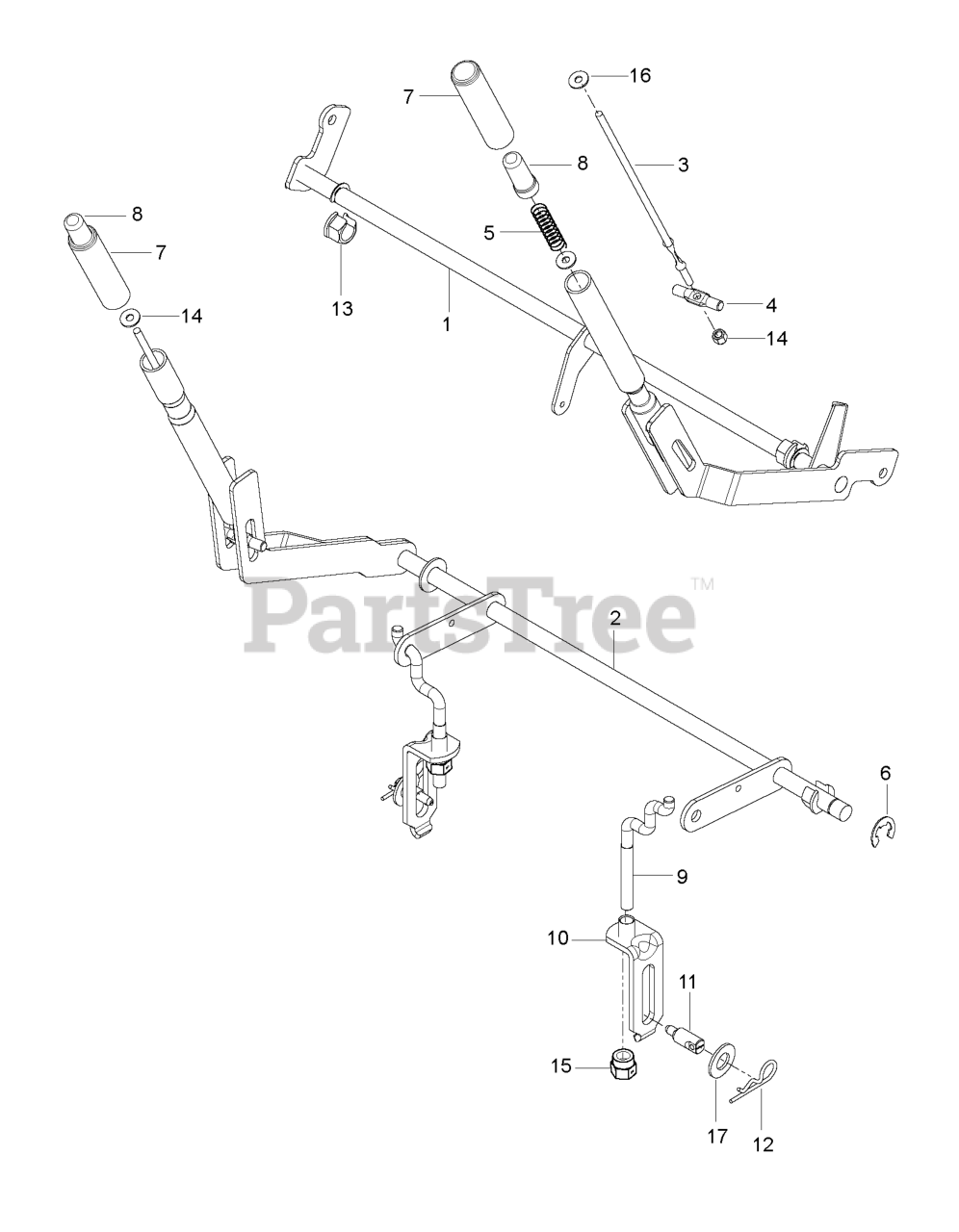

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

RedMax 580435801

SUB.ASM.SHAFT.BRAKE.WLDMNT.MED

$120.99

$

Usually ships in 3-10 days

0

2

RedMax 586760202

DECK.LIFT.PNT.WELDMENT.RZ.BLK

$42.99

$

Usually ships in 3-10 days

0

3

RedMax 510422901

ROD, HANDLE RELEASE
(Superseded to 510422902)

$6.49

$

In Stock, only 4 left!

0

4

RedMax 580960401

ROD LATCH RELEASE
(Superseded to 583629301)

$6.49

$

In Stock, only 1 left!

0

5

RedMax 510030701

SPRING, COMPRESSION
(Superseded to 510030702)

$4.99

$

In Stock, Qty 20+

0

6

RedMax 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

7

RedMax 510207201

GRIP, HANDLE, BLACK 4"

$6.99

$

In Stock, only 4 left!

0

8

RedMax 510207301

BUTTON, PUSH, BLACK

$5.99

$

In Stock, only 1 left!

0

9

RedMax 525847201

LINK, REAR SUSPENSION
(Superseded to 587623001)

$12.99

$

In Stock, Qty 9

0

10

RedMax 522858601

ASSEMBLY, BRKT LINK
(Superseded to 587623001)

$12.99

$

In Stock, Qty 9

0

11

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

12

RedMax 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 510184901

PLASTIC NUT

$6.49

$

In Stock, only 3 left!

0

14

RedMax 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 532175994

NUT, LIFT LINK 7/16-20

$4.99

$

In Stock, Qty 12

0

16

RedMax 819091216

WASHER PM
(Superseded to 596204201)

$3.99

$

In Stock, only 1 left!

0

17

RedMax 819212113

WASHER
(Superseded to 596320001)

$3.99

$

In Stock, only 2 left!

0
