RZT 48 (967672001-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) IGNITION SYSTEM Parts Diagram

48" Zero-Turn Riding Mower

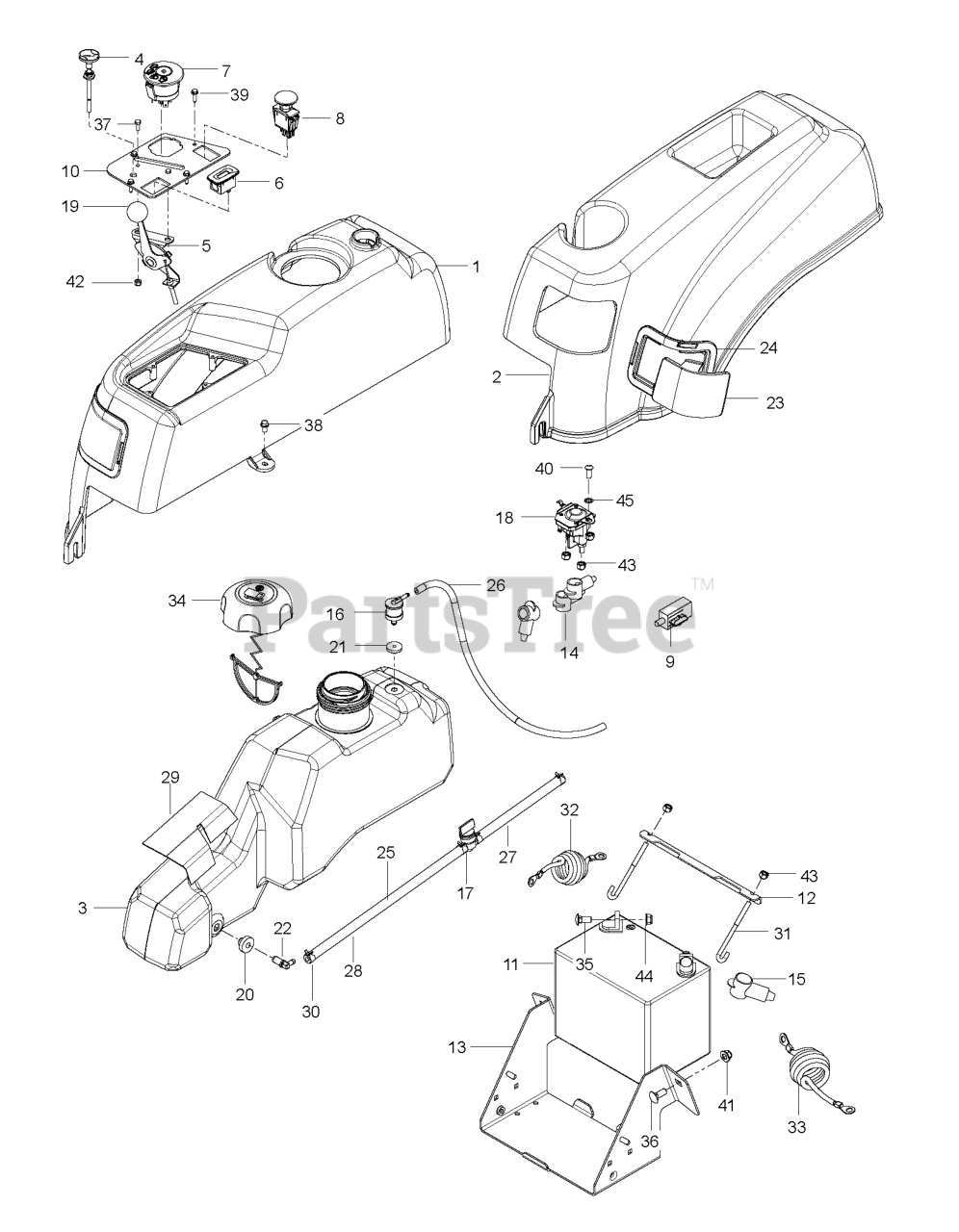

IGNITION SYSTEM Parts Diagram

  • Title

1

RedMax 578179002

FENDER.RT.BLK.3IN.FUEL.NECK

$85.99

$

Usually ships in 3-10 days

0

2

RedMax 576370501

FENDER, LT, BLK

$85.99

$

In Stock, only 1 left!

0

3

RedMax 589926101

FUEL TANK ASSY LARGE 3 NECK TH

Note: . 20 21 22 29

$206.99

$

Usually ships in 3-10 days

0

4

RedMax 539112439

CHOKE CABLE

$34.99

$

In Stock, only 1 left!

0

5

RedMax 539112734

THROTTLE CABLE

$34.99

$

Usually ships in 3-10 days

0

6

RedMax 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$24.99

$

In Stock, Qty 6

0

7

RedMax 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

8

RedMax 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, only 4 left!

0

9

RedMax 532197802

SWITCH.INTRLCK.CLUTCH.

$18.99

$

In Stock, Qty 7

0

10

RedMax 584254602

CONTROL PLATE RZ STD X431

$4.99

$

Usually ships in 3-10 days

0

11

RedMax 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

12

RedMax 510030003

BRACKET.PNT.MOUNT.BATTERY.EDIP
(Superseded to 510030001)

$51.99

$

In Stock, only 1 left!

0

13

RedMax 582609602

BOX.PNT.BATTERY.RZ.EDIP

$37.99

$

Usually ships in 3-10 days

0

14

RedMax 532131563

TERMINAL COVER
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

15

RedMax 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

16

RedMax 576618101

VALVE.FUEL.CHECK

$25.99

$

In Stock, Qty 13

0

17

RedMax 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

18

RedMax 582042801

SOLENOID.STARTER.BRASS.PLUNGER
(Superseded to 582042802)

$26.99

$

In Stock, Qty 19

0

19

RedMax 539133049

KNOB.ROUND.BALL.BLACK

$18.99

$

Usually ships in 3-10 days

0

20

RedMax 532003645

BUSHING OUTLET T

$4.99

$

Usually ships in 3-10 days

0

21

RedMax 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 5

0

22

RedMax 532139277

STEM FUEL TANK

$8.99

$

In Stock, Qty 7

0

23

RedMax 576371101

PANEL, LT

$6.49

$

In Stock, only 1 left!

0

RedMax 576371201

PANEL, RT, BLK

$6.49

$

In Stock, only 1 left!

0

24

RedMax 576370901

RING, TRIM LT BLK

$4.99

$

In Stock, only 1 left!

0

RedMax 576371001

RING, TRIM, RT-BLK

$4.99

$

In Stock, Qty 6

0

25

RedMax 586123904

FUEL.HOSE.SHUT.OFF.ASM.10".3"

Note: . 17 27 38 30

$13.99

$

Usually ships in 3-10 days

0

26

RedMax 587044544

HOSE 3/16" VAPOR LINE 44" LENG

$7.49

$

In Stock, only 2 left!

0

27

RedMax 587044810

HOSE.1/4".LOW.PERM.FUEL.LN.10"

$11.99

$

Usually ships in 3-10 days

0

28

RedMax 587044818

HOSE 1/4" LOW PERMEATION FUEL

$10.99

$

In Stock, only 2 left!

0

29

RedMax 522559101

SHIELD, HEAT

$37.99

$

Usually ships in 3-10 days

0

30

RedMax 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

31

RedMax 588839401

HOOK.J.BATTERY

$4.99

$

In Stock, only 2 left!

0

32

RedMax 586108101

CABLE BATTERY GROUND RZ

$9.49

$

Usually ships in 3-10 days

0

33

RedMax 586108201

CABLE BATTERY POS RZ

$10.99

$

In Stock, only 2 left!

0

36

RedMax 581223001

PLATE NUT ZTR
(Superseded to 581223002)

$3.99

$

In Stock, only 4 left!

0

34

RedMax 585124802

CAP ASSY FUEL 3" BLACK

$18.99

$

In Stock, only 1 left!

0

35

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

36

RedMax 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 3 left!

0

37

RedMax 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 817490408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

39

RedMax 539110673

SCR #10-12X3/4 HEX WAS HD ZD

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 539111229

SCR 1/4-20 X 5/8 BTN SKT HD ZD

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

42

RedMax 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

43

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

45

RedMax 539990053

WASHER 1/4 INT TOOTH

$3.99

$

In Stock, only 3 left!

0

RedMax 585727701

HARNESS.WIRING.RZ

Note: NOT SHOWN

$93.99

$

Usually ships in 3-10 days

0

RedMax 532140401

KEY MLD GEN DELTA

$6.99

$

In Stock, Qty 8

0

RedMax 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0
