RZT 48 (967672001-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

48" Zero-Turn Riding Mower

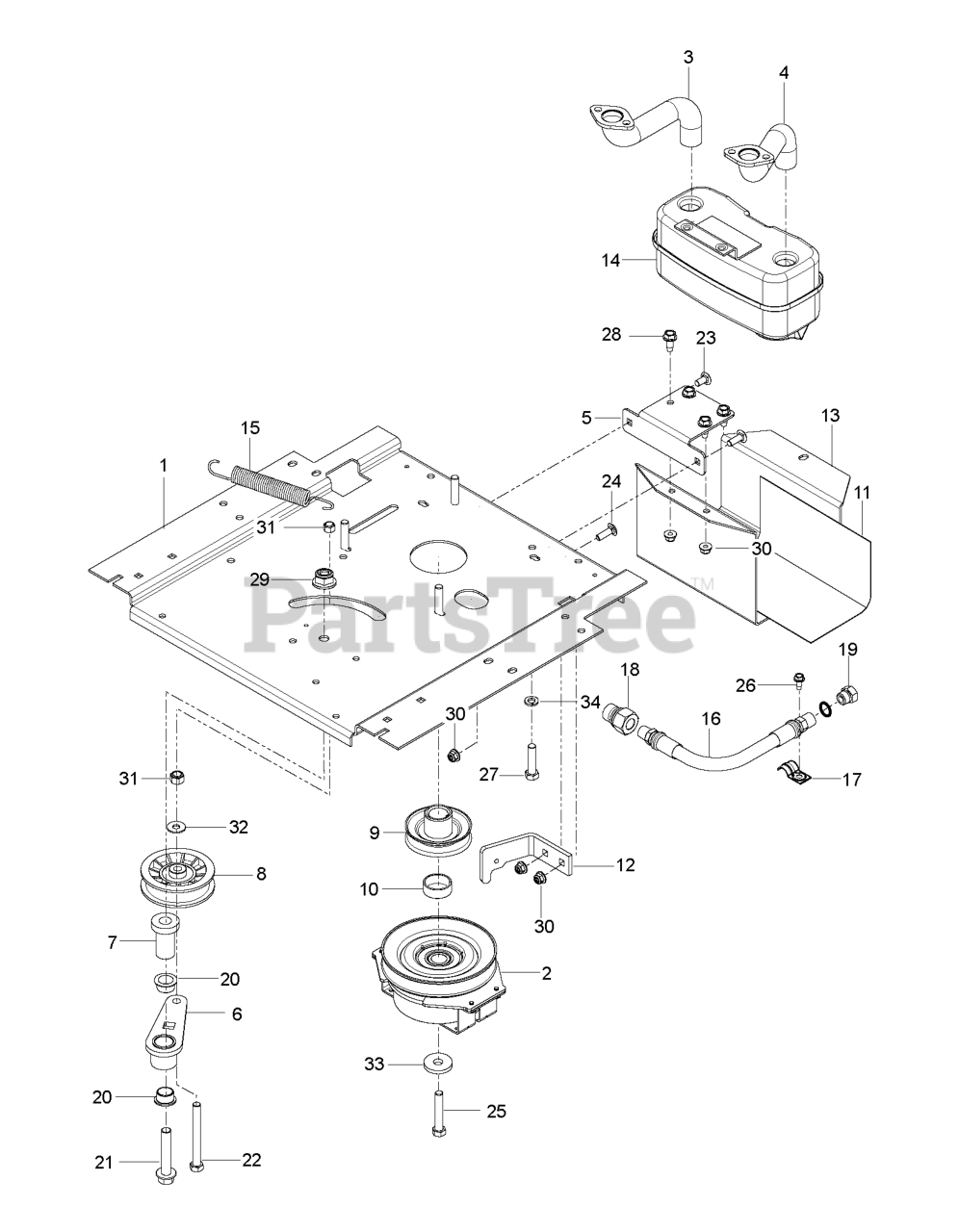

ENGINE MOUNTING GUARDS MUFFLER Parts Diagram

  • Title

1

RedMax 588017102

PLATE.ENGINE.PNT.23"FRAME.EDIP

$

$

Not available

2

RedMax 587241601

CLUTCH.OGURA.5.0PD.GT1.5A-EH07

$278.99

$

In Stock, only 1 left!

0

3

RedMax 583955701

TUBE.EXHAUST.RH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

4

RedMax 583955601

TUBE.EXHAUST.LH.FR961/FR730

$37.99

$

Usually ships in 3-10 days

0

5

RedMax 581886702

BRACKET MUFFLER MS431BLK

$34.99

$

In Stock, only 1 left!

0

6

RedMax 532448145

ARM IDLER
(Superseded to 583593901)

$13.99

$

In Stock, Qty 7

0

7

RedMax 582538901

SPINDLE.IDLER
(Superseded to 582538902)

$5.99

$

In Stock, only 4 left!

0

8

RedMax 539110311

PULLEY, IDLER RAKE & ZTR

$17.99

$

In Stock, Qty 20+

0

9

RedMax 587537401

PULLEY.ENGINE

$26.99

$

In Stock, only 3 left!

0

10

RedMax 587660101

SPACER.SPACER.625 W/OGURA.LCC

$6.99

$

Usually ships in 3-10 days

0

11

RedMax 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

12

RedMax 587633302

CLUTCH.STOP.OGURA LCC.BLACK

$9.49

$

In Stock, only 1 left!

0

13

RedMax 587451202

GUARD.MUFFLER.WO.TOW.HITCHX431

$51.99

$

Usually ships in 3-10 days

0

14

RedMax 539131604

MUFFLER ASM TWIN

$45.99

$

In Stock, only 1 left!

0

15

RedMax 532196105

SPRING, DECK DRIVE

$7.99

$

In Stock, Qty 11

0

16

RedMax 584825501

HOSE.ASSEMBLY.OIL.DRAIN

Note: . 19

$31.99

$

In Stock, only 1 left!

0

17

RedMax 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

18

RedMax 522599001

ADAPTER, OIL DRAIN
(Superseded to 522599003)

$10.99

$

Usually ships in 3-10 days

0

19

RedMax 585807101

PLUG OIL DRAIN

$4.99

$

In Stock, only 2 left!

0

20

RedMax 501603701

BEARING.FLANGED.PLASTIC.3/4ID

$6.99

$

In Stock, Qty 7

0

21

RedMax 582539501

BOLT.FLANGE.1/2-13 X 2.75.GRD5
(Superseded to 582539502)

$6.99

$

In Stock, Qty 7

0

22

RedMax 874520656

HCS 3/8-16X3-1/2 TAPBLT GR5 ZD

$

$

Not available

23

RedMax 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

24

RedMax 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, Qty 7

0

25

RedMax 581332803

CLUTCH BOLT7/16-20X2.5 GR524HR
(Superseded to 581332806)

$8.99

$

In Stock, Qty 9

0

26

RedMax 817490410

SCR 1/4-20X5/8 HEX SELF TAP ZD

$

$

Not available

27

RedMax 539976949

BOLT, HCS 3/8-16X1-3/4

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

29

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

30

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

31

RedMax 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

RedMax 819121414

WASHER
(Superseded to 734117201)

$1.99

$

Usually ships in 3-10 days

0

33

RedMax 532126197

WASHER

$8.99

$

In Stock, only 3 left!

0

34

RedMax 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0
