RZT 42 (967671901-00) - RedMax 42" Zero-Turn Riding Mower (2017-09) WHEELS & TIRES Parts Diagram

42" Zero-Turn Riding Mower

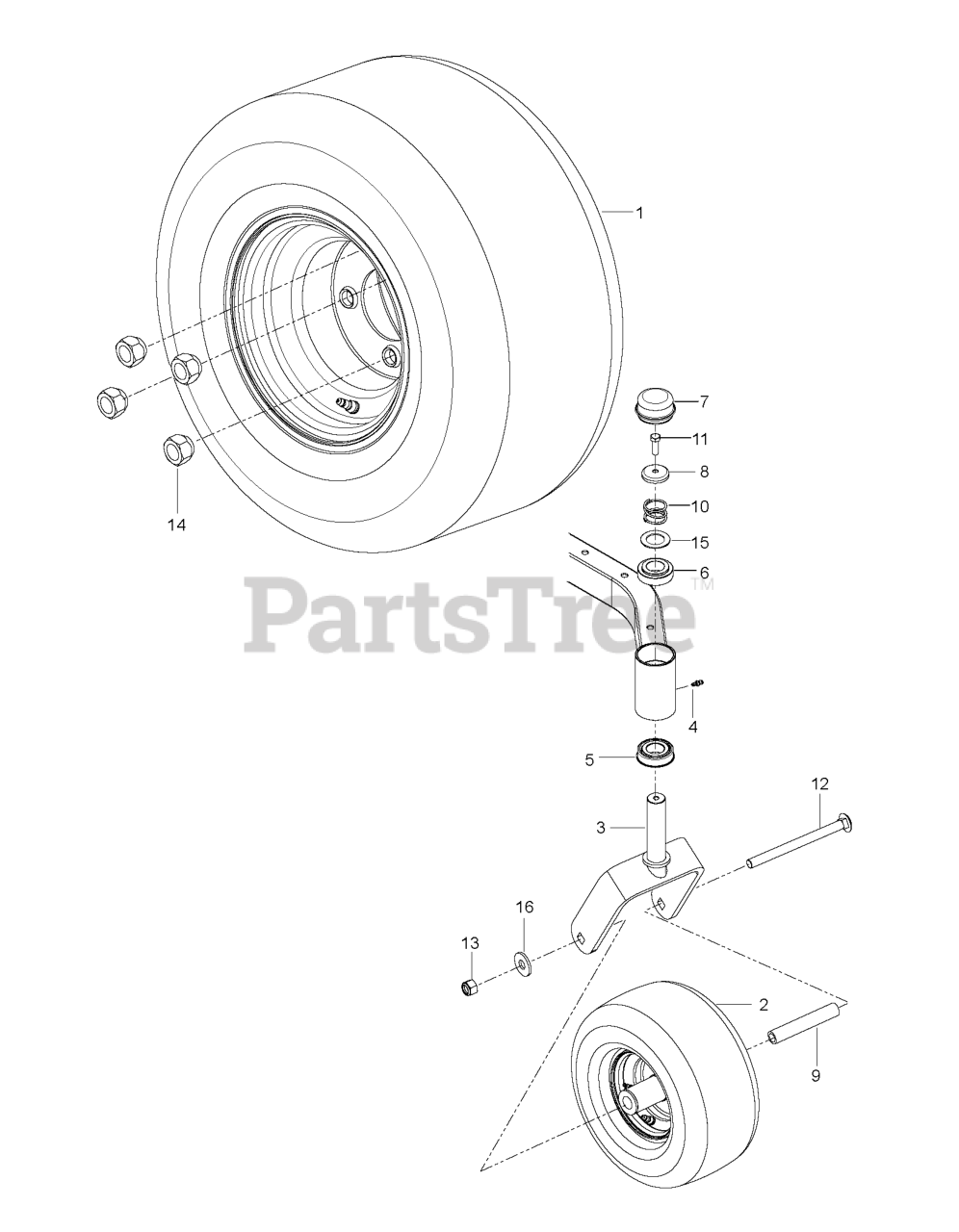

WHEELS & TIRES Parts Diagram

  • Title

1

RedMax 581198701

WHEEL.18X8.50-8.4P.K500.8X7.4H

$182.99

$

Usually ships in 3-10 days

0

2

RedMax 580830801

WHEEL.ASSY.FRONT.CASTER.11X6-5

$157.99

$

In Stock, only 2 left!

0

3

RedMax 586650307

YOKE CASTER ASM SNAPPER RED X6

$37.99

$

Usually ships in 3-10 days

0

4

RedMax 539115638

ZERK, 3/16, DRIVE IN

$5.99

$

In Stock, Qty 19

0

5

RedMax 539112660

BEARING FLANGED

$34.99

$

Usually ships in 3-10 days

0

6

RedMax 539117901

BUSHING, CASTER

$10.99

$

Usually ships in 3-10 days

0

7

RedMax 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

8

RedMax 539115749

CASTER.PLUG
(Superseded to 596301001)

$3.99

$

In Stock, Qty 13

0

9

RedMax 585995401

SPACER.PIVOT

$7.99

$

In Stock, only 3 left!

0

10

RedMax 539115747

SPRING, CASTER
(Superseded to 596388901)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 874950516

5/16-18X1 HHB G5W/NY
(Superseded to 596319901)

$3.99

$

In Stock, Qty 7

0

12

RedMax 576601501

RHSNB 1/2-13 X 7.5
(Superseded to 576601502)

$12.99

$

Usually ships in 3-10 days

0

13

RedMax 873930800

NUT. 1/2-13 HEX CNTRLK GR 5 ZD
(Superseded to 595316501)

$3.99

$

In Stock, Qty 20+

0

14

RedMax 539101173

LUG NUT 1/2F
(Superseded to 587653903)

$4.99

$

In Stock, Qty 20+

0

15

RedMax 539115675

WASHER, 1.025 ID X 1.64
(Superseded to 596319801)

$3.99

$

In Stock, only 4 left!

0

16

RedMax 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.99

$

In Stock, Qty 20+

0
