RZT 42 (967671901-00) - RedMax 42" Zero-Turn Riding Mower (2017-09) SEAT Parts Diagram

42" Zero-Turn Riding Mower

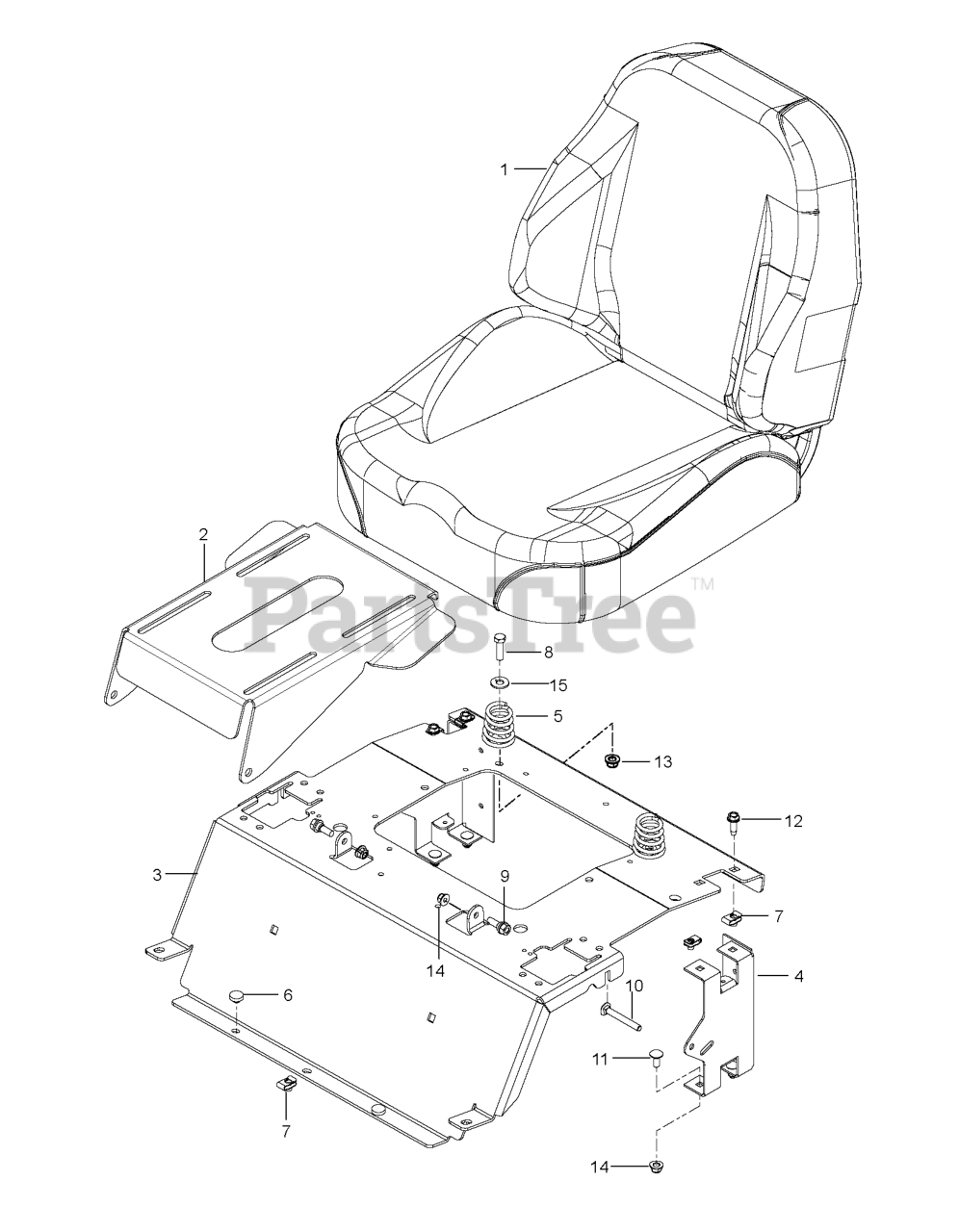

SEAT Parts Diagram

  • Title

1

RedMax 590873401

SEAT.WOOD.BOTTOM.4-BOLT.REDMAX

$

$

Not available

2

RedMax 590856002

PAN SEAT, 4-BOLT BLACK X428

$79.99

$

Usually ships in 3-10 days

0

3

RedMax 589761210

PLATE SEAT SUPPORT; RZ SNAPPER
(Superseded to 586650307)

$37.99

$

Usually ships in 3-10 days

0

4

RedMax 580308202

SUPPORT REAR SEAT BLACK

$22.99

$

Usually ships in 3-10 days

0

5

RedMax 589483501

SPRING.COMPRESS.SEAT.TAPERED

$9.49

$

In Stock, only 2 left!

0

6

RedMax 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

7

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

8

RedMax 874780620

BOLT
(Superseded to 874760620)

$7.49

$

Usually ships in 3-10 days

0

9

RedMax 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

10

RedMax 510422701

RHSNB 5/16-18 X 2-1/2 GR5 ZD

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

12

RedMax 817490512

SCREW
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

14

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

15

RedMax 819141614

WASHER 3/8 FLAT
(Superseded to 596433701)

$3.99

$

In Stock, Qty 7

0
