RZT 42 (967671901-00) - RedMax 42" Zero-Turn Riding Mower (2017-09) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Riding Mower

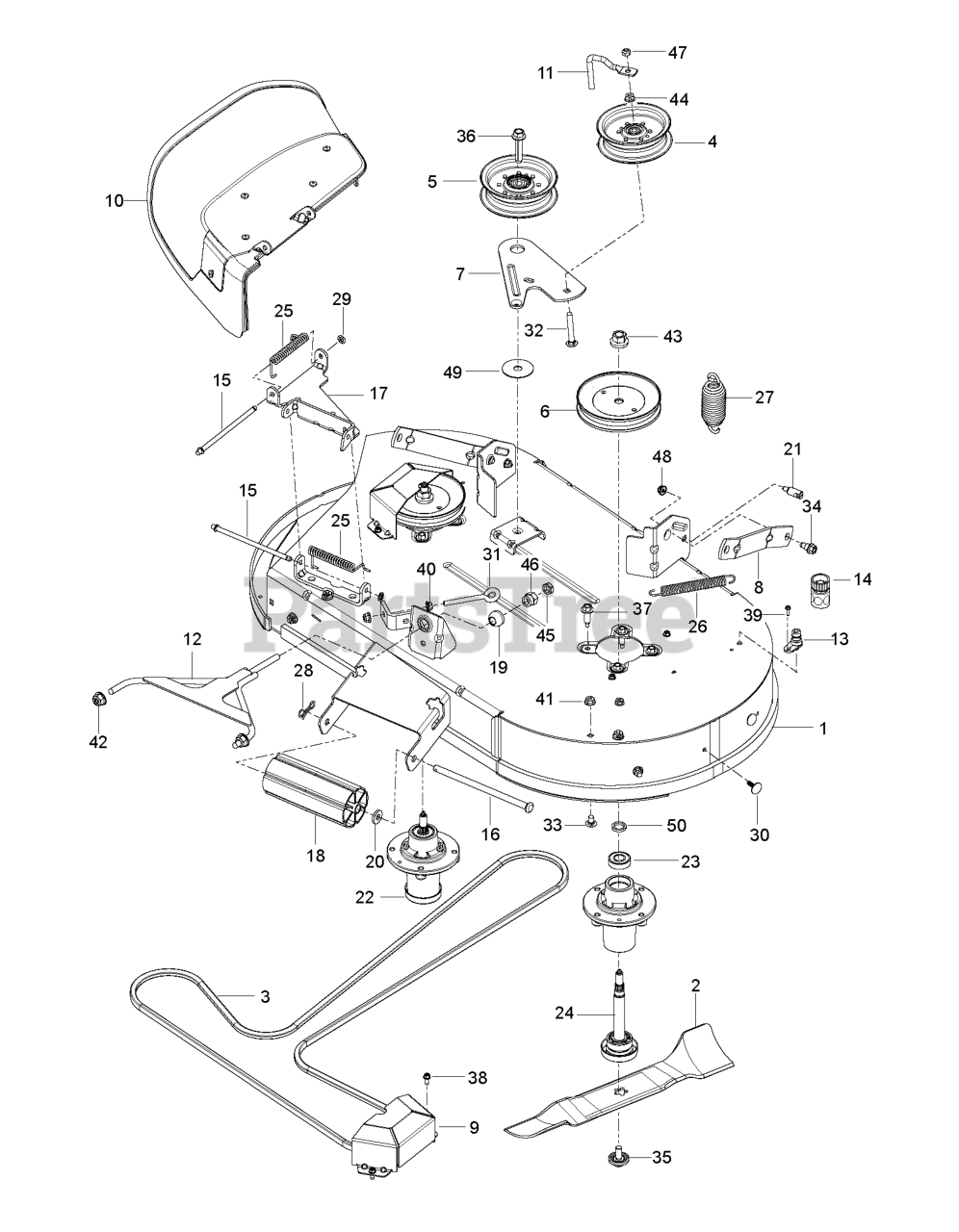

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

RedMax 582877604

DECK.SVC.42.W/DCLS.CC.RED 667

$

$

Not available

2

RedMax 586918101

BLADE.42.FCS.BAGGING.BLADE.RAW
(Superseded to 586918102)

$31.99

$

In Stock, Qty 6

0

3

RedMax 587270001

BELT.42.FCS.ZTR.DECK.DRIVE

$74.99

$

In Stock, only 3 left!

0

4

RedMax 532196106

PULLEY.IDLER.2006

$39.99

$

In Stock, Qty 20+

0

5

RedMax 532196104

PULLEY.IDLER.MWR.STATI.LH

$43.99

$

In Stock, Qty 17

0

6

RedMax 532199791

PULLEY MANDREL 5.0"

$31.99

$

In Stock, only 2 left!

0

7

RedMax 586874002

ARM.42"FCS.CLUTCHING.X431

$20.99

$

Usually ships in 3-10 days

0

8

RedMax 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

Usually ships in 3-10 days

0

9

RedMax 586936806

COVER 42 FCS MANDREL COVER BLA

$5.99

$

Usually ships in 3-10 days

0

10

RedMax 587305705

DEFLECTOR 42 FCS DEFLECTOR ASM

$80.99

$

Usually ships in 3-10 days

0

11

RedMax 532198468

KEEPER.BELT.IDLER.54"T

$17.99

$

Usually ships in 3-10 days

0

12

RedMax 588610902

LINK.RZ.FRONT.WELDMENT.E-DIP

$53.99

$

In Stock, only 1 left!

0

13

RedMax 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 10

0

14

RedMax 532416405

COUPLING.QUICK CONNECT

$10.99

$

In Stock, Qty 5

0

15

RedMax 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

16

RedMax 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$6.99

$

In Stock, Qty 20+

0

17

RedMax 586918005

BRACKET.42'.FCS.DBLE.HINGE.RED

$14.99

$

Usually ships in 3-10 days

0

18

RedMax 532176066

NOSE ROLLER 48"

$13.99

$

In Stock, Qty 18

0

19

RedMax 532195263

BUSHING SPHERICAL SUSP. FRONT
(Superseded to 593842101)

$5.99

$

In Stock, only 3 left!

0

20

RedMax 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 6

0

21

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

22

RedMax 539131898

MANDREL ASM, CAST IRON

$80.99

$

In Stock, Qty 11

0

23

$13.99

$

In Stock, Qty 14

0

24

RedMax 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$28.99

$

In Stock, Qty 7

0

25

RedMax 587354701

SPRING.42.FCS.DEFLECTOR

$6.99

$

In Stock, Qty 10

0

26

RedMax 532197251

SPRING.MOWER.DRIVE.ELECTRIC

$11.99

$

In Stock, only 2 left!

0

27

RedMax 539118762

SPRING
(Superseded to 596482001)

$7.99

$

In Stock, Qty 5

0

28

RedMax 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 532133835

FASTENER.XMAS.TREE

$7.49

$

Usually ships in 3-10 days

0

31

RedMax 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

Usually ships in 3-10 days

0

32

RedMax 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

33

RedMax 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

34

RedMax 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

35

RedMax 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

36

RedMax 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.99

$

Usually ships in 3-10 days

0

37

RedMax 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$4.99

$

In Stock, Qty 20+

0

38

RedMax 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

39

RedMax 817490412

SCREW HEX CRT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

40

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

42

RedMax 532119124

CLIP NUT.7/16-14.HEX.W/NYLOC

$

$

Not available

43

RedMax 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

44

RedMax 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

45

$5.99

$

Usually ships in 3-10 days

0

46

RedMax 532175994

NUT, LIFT LINK 7/16-20

$4.99

$

In Stock, Qty 12

0

47

RedMax 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

48

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

49

$6.99

$

Usually ships in 3-10 days

0

50

RedMax 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0
