RZT-42 (17YF2ACS010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2012) Rear Drive & Wheels (18 x 8.5 & 9.5) Parts Diagram

42" RZT Zero-Turn Mower, Kohler

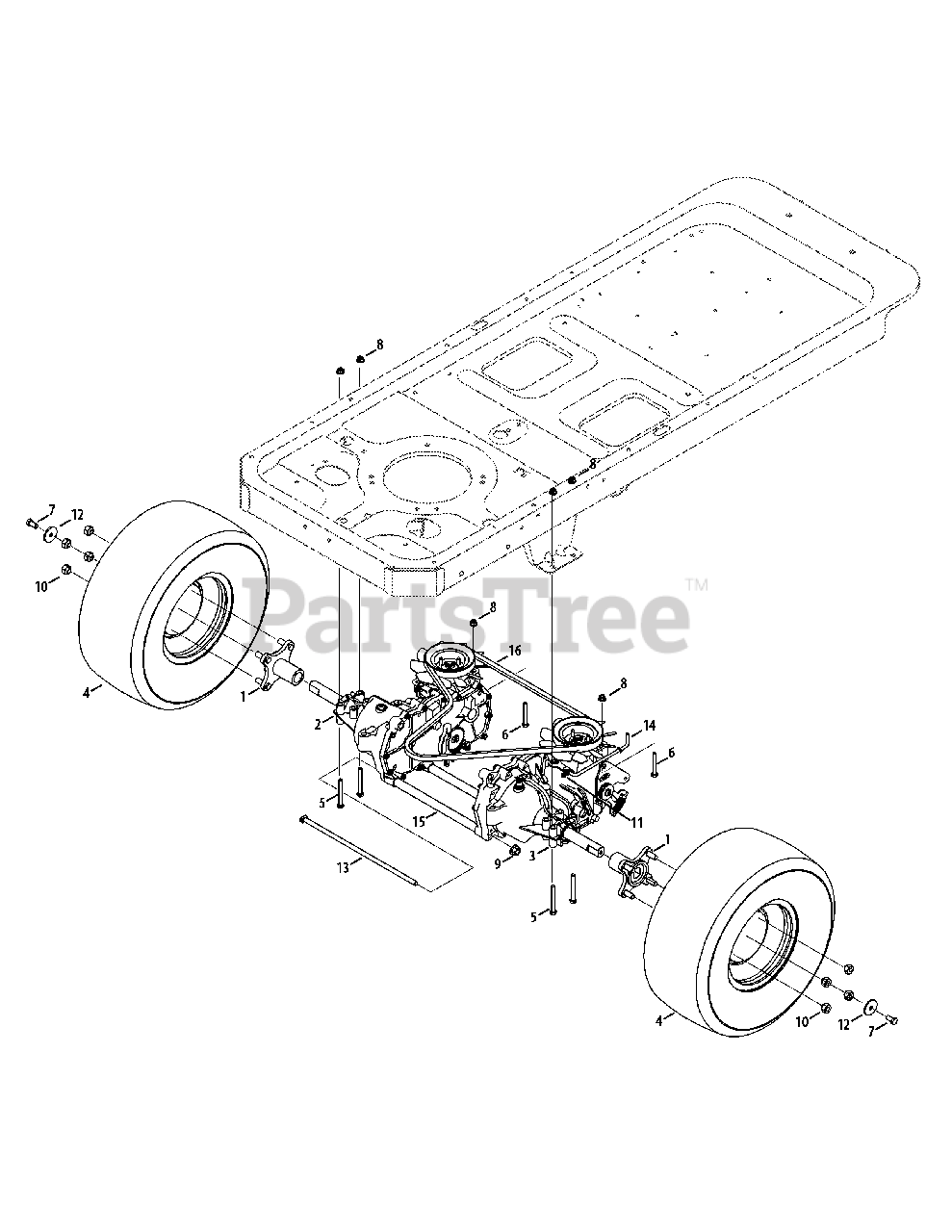

Rear Drive & Wheels (18 x 8.5 & 9.5) Parts Diagram

  • Title
1

Cub Cadet 918-04317

Wheel Hub, 7/16-14 x 1.6

$116.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-04431A

Transmission Assembly, LH
(Superseded to 918-04431B)

$1719.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04432A

Transmission Assembly, RH
(Superseded to 918-04432B)

$1805.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-04293-0931

Wheel Assembly, 18 x 8.5-8
(Superseded to 634Z04293-0499)

Note: (CARLISLE Tire)

$132.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-04173-0499

Rim Only, 8.5

Note: (not shown)

$88.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 734-04246-0901

Tire Only, 18 x 8.5-8
(Superseded to 734-04246-0906)

Note: (not shown)

$85.99

$

In Stock, only 2 left!

0

4

Cub Cadet 634-04128-0931

Wheel Assembly, 18 x 9.5-8
(Superseded to 634-04128-0936)

Note: (CARLISLE Tire)

$

$

Not available

4

Cub Cadet 603-04175-0499

Rim Only, 9.5

Note: (not shown)

$88.99

$

In Stock, only 1 left!

0

4

Cub Cadet 734-1729-0901

Tire Only, 18 x 9.5-8
(Superseded to 734-1729-0906)

Note: (not shown)

$

$

Not available

4

Cub Cadet 934-0255

Valve, Tubeless

Note: (not shown)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0395

Hex Cap Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-3119

Hex Cap Screw, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-04063

Hex Flange Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0459

Hex Flange Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 6

0

11

Cub Cadet 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

12

Cub Cadet 936-0227

Flat Washer, .39 x 1.5
(Superseded to 736-0227)

$

$

Not available

13

Cub Cadet 738-04192B

Rod, .405 x 14

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, Qty 20+

0
