RZT-42 (17YF2ACS010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2012) Front Axle (11 x 4) Parts Diagram

42" RZT Zero-Turn Mower, Kohler

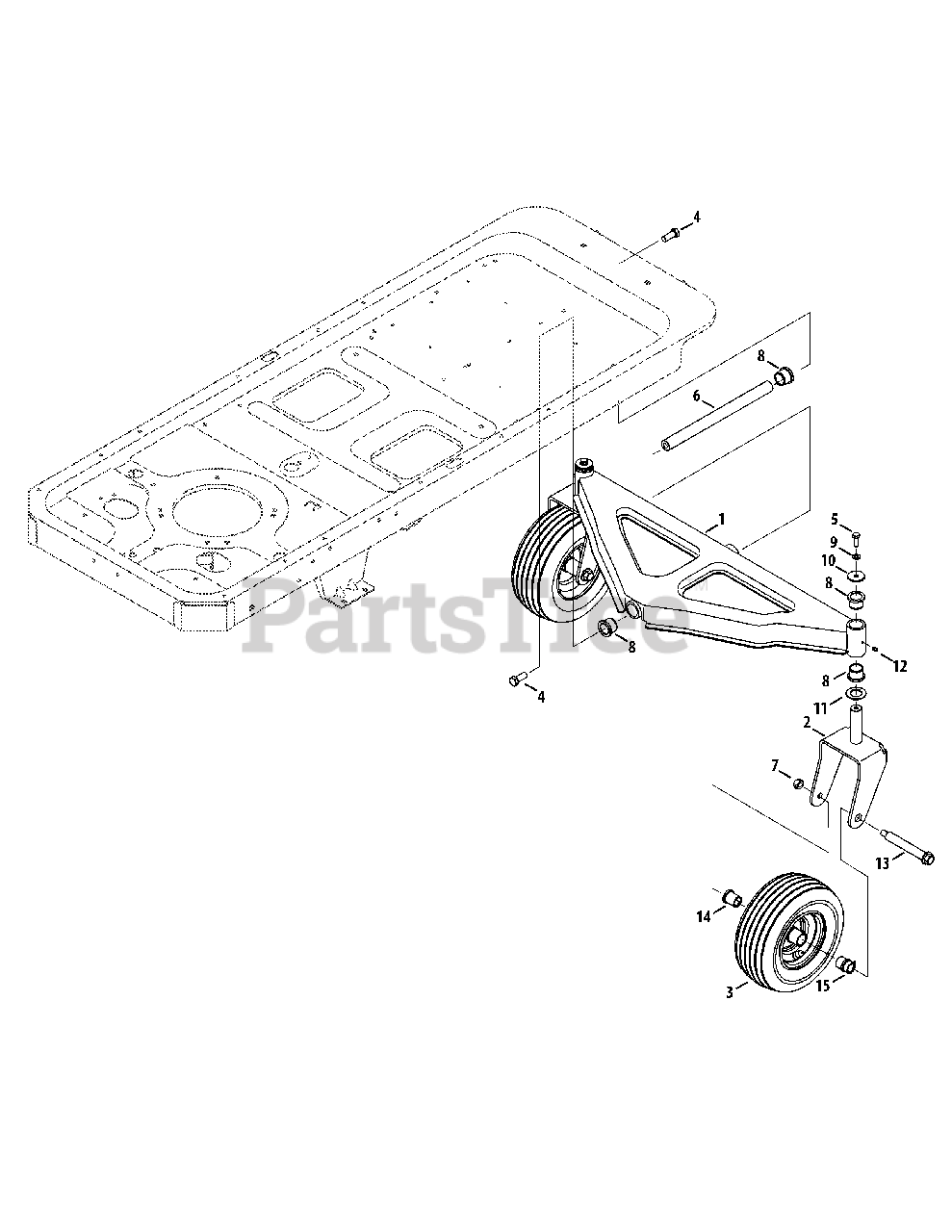

Front Axle (11 x 4) Parts Diagram

  • Title

1

Cub Cadet 603-04148C-4021

Front Pivot Axle

$425.99

$

In Stock, only 1 left!

0

2

Cub Cadet 603-04308-4021

Castor Wheel Bracket
(Superseded to 603-04308A-4021)

$98.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 634-04212B

Wheel Assembly, 11.0 x 4.0 x 5.0
(Superseded to 634-04212C)

$103.99

$

In Stock, Qty 6

0

4

Cub Cadet 710-04186

Hex Lock Screw, 1/2-13 x 1.25

$7.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 911-04228

Axle Shaft

$77.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-3022

Hex Lock Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 731-05500

Flange Bearing, 1.0 x 1.246

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 936-0227

Flat Washer, .39 x 1.5 x .134
(Superseded to 736-0227)

$

$

Not available

11

Cub Cadet 736-0250

Flat Washer, 1.0 x 1.75 x .107

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 937-3000

Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 738-04182A

Shoulder Screw, 7/16-14 x .75 x 4.75
(Superseded to 738-04182B)

$26.99

$

In Stock, Qty 19

0

14

Cub Cadet 741-0516B

Flange Bearing, .76 x 1.0 x 1.2

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 741-0990B

Flange Bearing, .76 ID w/Lube Ftg.

$10.99

$

In Stock, Qty 20+

0
