RZT-42 (17YF2ACS010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2012) Frame & Electrical Parts Diagram

42" RZT Zero-Turn Mower, Kohler

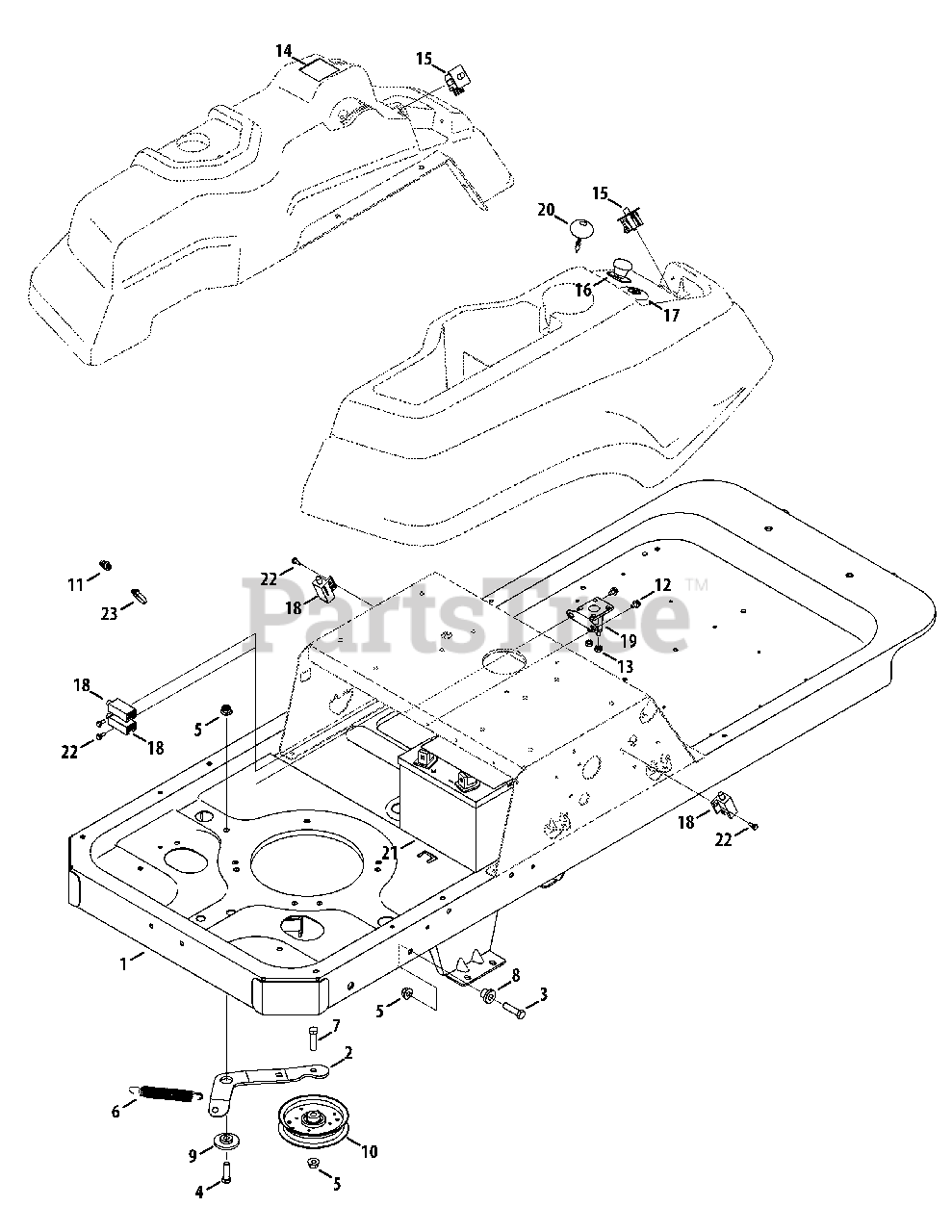

Frame & Electrical Parts Diagram

  • Title
1

Cub Cadet 603-04680A-4021

Frame Assembly

$

$

Not available

2

Cub Cadet 703-05829

Drive Idler Arm

Variations

Cub Cadet 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-05097

Hex Screw, 3/8-16 x 1.5

$4.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04065

Flange Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 732-0626

Extension Spring, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.5

$4.49

$

In Stock, Qty 6

0

8

Cub Cadet 738-04058

Shoulder Spacer, .39 x 1.0 x .7

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

10

Cub Cadet 756-04129B

Idler Pulley, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

11

Cub Cadet 925-04109

Wire Harness
(Superseded to 925-04847C)

$178.99

$

In Stock, Qty 6

0

12

Cub Cadet 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

13

Cub Cadet 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

$146.99

$

In Stock, Qty 5

0

15

Cub Cadet 925-04165

Neutral Switch

$32.99

$

In Stock, only 4 left!

0

16

Cub Cadet 925-04174

PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

17

Cub Cadet 925-04228

Ignition Switch

$39.99

$

In Stock, Qty 20+

0

18

Cub Cadet 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 13

0

19

Cub Cadet 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

20

Cub Cadet 925-2054A

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

21

$

$

Not available

22

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

23

Cub Cadet 726-0470

Cable Tie

$4.99

$

Usually ships in 3-6 days

0
