RZT-42 (17YF2ACS010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2012) Engine Accessories (Kohler) Parts Diagram

42" RZT Zero-Turn Mower, Kohler

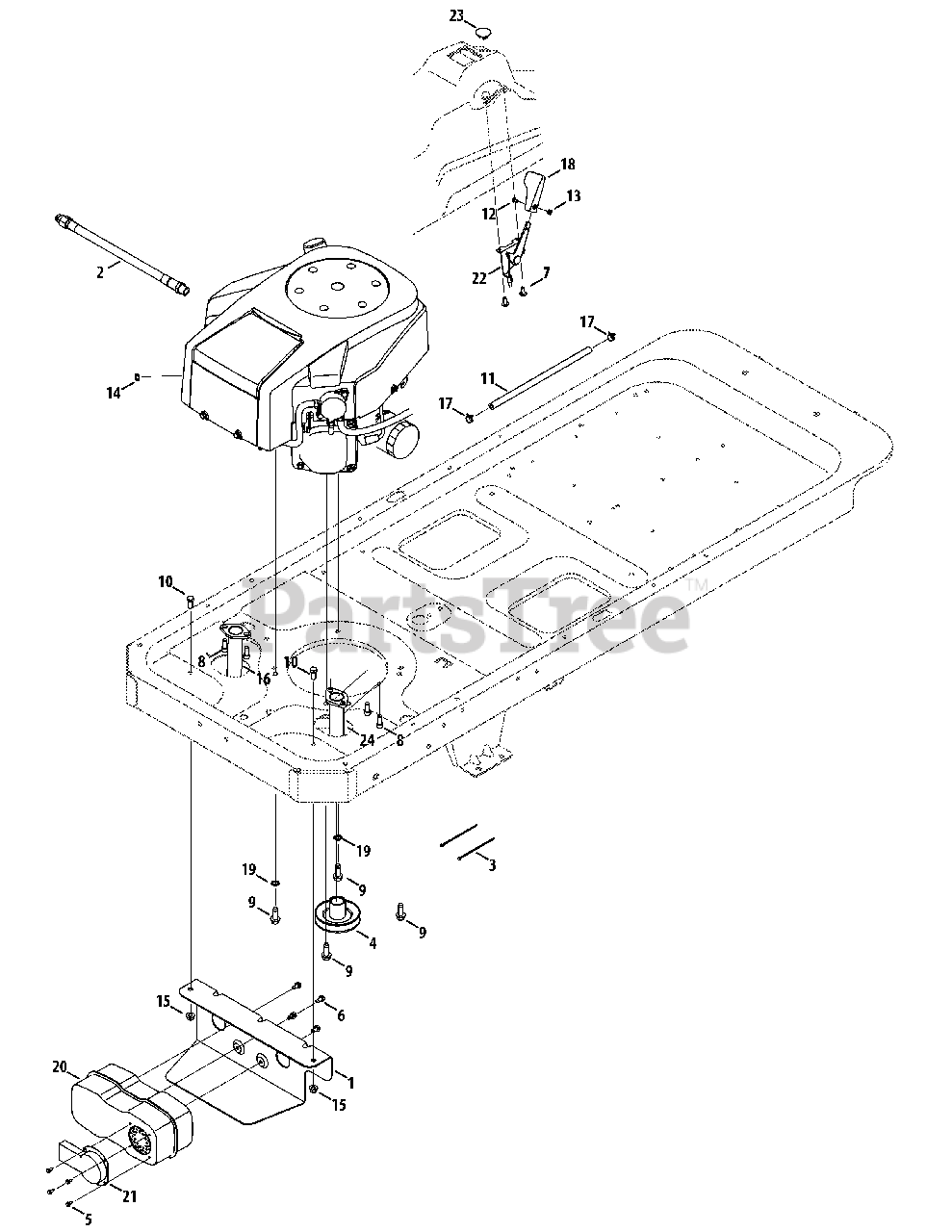

Engine Accessories (Kohler) Parts Diagram

  • Title
1

Cub Cadet 703-05441A

Muffler Mount Bracket

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet 751-10291

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

4

Cub Cadet 756-04376

PTO Pulley

$44.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1017

Screw, 1/4-14 x 0.625

$8.49

$

In Stock, Qty 9

0

8

Cub Cadet 710-1314A

Socket Screw, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-04683

Hex Washer Screw, 3/8-16 x 1.250
(Superseded to 710-04683C)

$6.49

$

In Stock, only 4 left!

0

10

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 751-10349

Low Permeation Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-3217

Machine Screw, #8-32 x 0.375

$6.99

$

In Stock, Qty 7

0

13

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

14

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 751-10253

Exhaust Pipe - LH

$72.99

$

In Stock, only 1 left!

0

17

Cub Cadet 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-0148

External Tooth Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 751-0616B

Dual Inlet Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 16

0

21

Cub Cadet 751-11053

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 20+

0

22

Cub Cadet 746-04539

Throttle/Choke Control Cable
(Superseded to 746P04539)

$42.99

$

In Stock, only 2 left!

0

23

Cub Cadet 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751-10254

Exhaust Pipe - RH

$94.99

$

In Stock, only 1 left!

0
