RZT-42 (17WF2ACS010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2011) Kohler SV715-3027 Crankcase Parts Diagram

42" RZT Zero-Turn Mower, Kohler

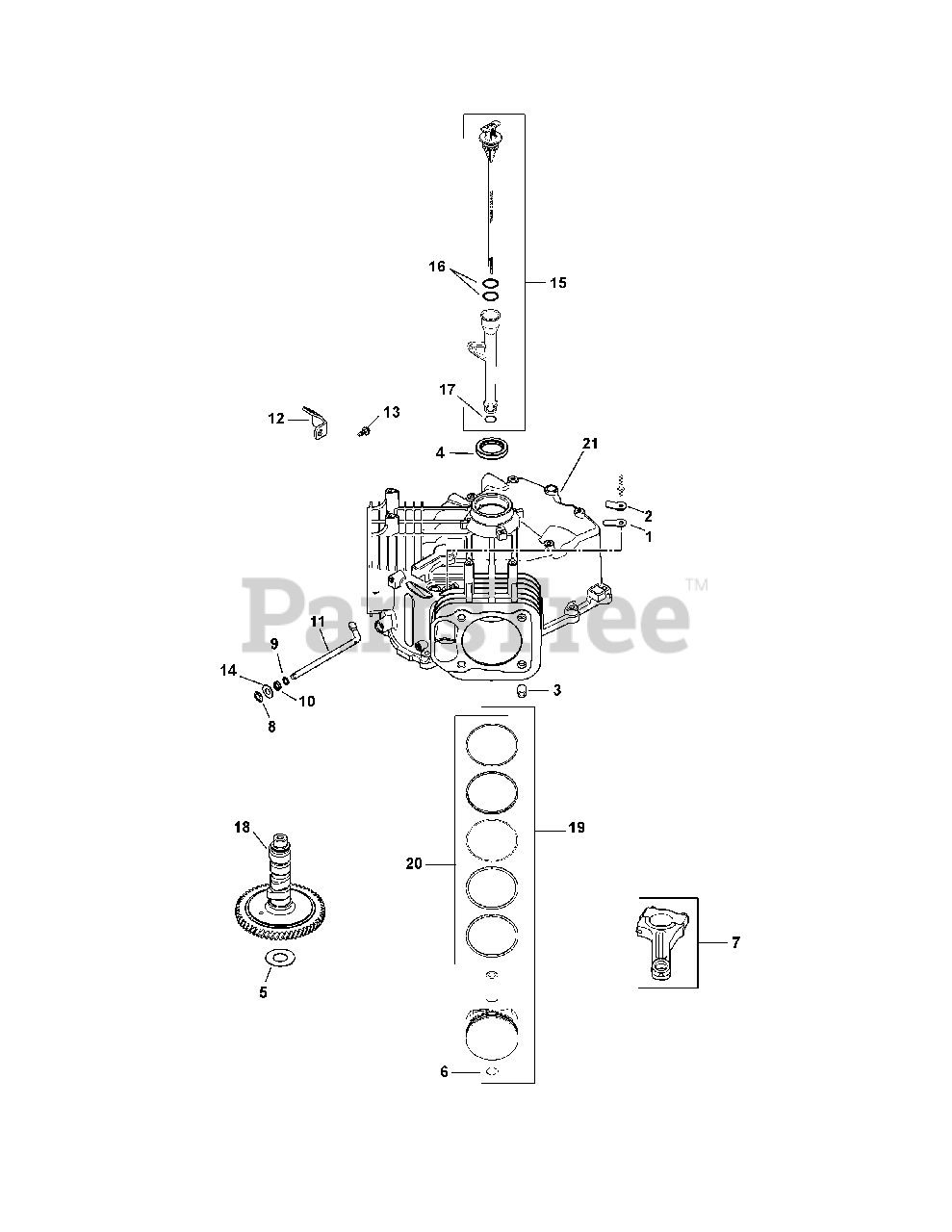

Kohler SV715-3027 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-12-402-02

Breather Reed

$

$

Not available

2

Cub Cadet KH-24-018-04-S

Breather Reed Retainer

$2.49

$

In Stock, only 2 left!

0

3

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet KH-24-032-19-S

Oil Seal, 1.78 x 1.26

$7.49

$

In Stock, Qty 20+

0

5

Cub Cadet KH-12-422-07-S

Camshaft Shim (White, .028)

$4.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-12-422-08-S

Camshaft Shim (Blue, .03)

Note: (as required)

$2.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-12-422-09-S

Camshaft Shim (Red, .032)

Note: (as required)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-12-422-10-S

Camshaft Shim (Yellow, .034)

Note: (as required)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-12-422-11-S

Camshaft Shim (Green, .036)

Note: (as required)

$2.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-12-422-12-S

Camshaft Shim (Gray, .038)

Note: (as required)

$2.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-12-422-13-S

Camshaft Shim (Black, .04)

Note: (as required)

$2.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$2.99

$

In Stock, Qty 7

0

7

Cub Cadet KH-24-067-28-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-468-15-S

Flat Washer, 11/32

$2.49

$

In Stock, Qty 5

0

10

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 6

0

11

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

13

Cub Cadet KH-M-545013-S

Flange Screw, M5 x .8 x 13

$2.49

$

In Stock, Qty 7

0

14

Cub Cadet KH-M-931010-S

Flat Washer, 9mm

$2.49

$

In Stock, only 2 left!

0

15

Cub Cadet KH-32-755-04-S

Dipstick & Tube Kit

$

$

Not available

16

Cub Cadet KH-25-153-09-S

O-Ring

$3.49

$

In Stock, only 3 left!

0

17

Cub Cadet KH-12-153-01-S

Lower Oil Fill Tube O-Ring

$4.99

$

In Stock, Qty 16

0

18

Cub Cadet KH-32-010-05-S

Camshaft Assembly

$110.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-25-874-03-S

Piston Kit w/ Ring (0.25) 83mm
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-25-874-02-S

Piston Kit w/ Ring (0.08) 83mm
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-108-14-S

Ring Set, Piston STD

$

$

Not available

20

Cub Cadet KH-24-108-15-S

Ring Set, Piston (.08)

$103.99

$

In Stock, only 3 left!

0

20

Cub Cadet KH-24-108-16-S

Ring Set, Piston (.25)

$103.99

$

In Stock, only 2 left!

0

21

Cub Cadet N/A

Crankcase (Use Short Block)

$

$

Currently unavailable

21

Cub Cadet KH-32-522-07

Short Block

$

$

Not available

Cub Cadet KH-SV715-3027

Engine

Note: (Not shown)

$

$

Not available
