RZT-42 (17BA5A4G712) - Cub Cadet 42" RZT Zero-Turn Mower, Briggs & Stratton Intek Starter Motor Parts Diagram

42" RZT Zero-Turn Mower, Briggs & Stratton Intek

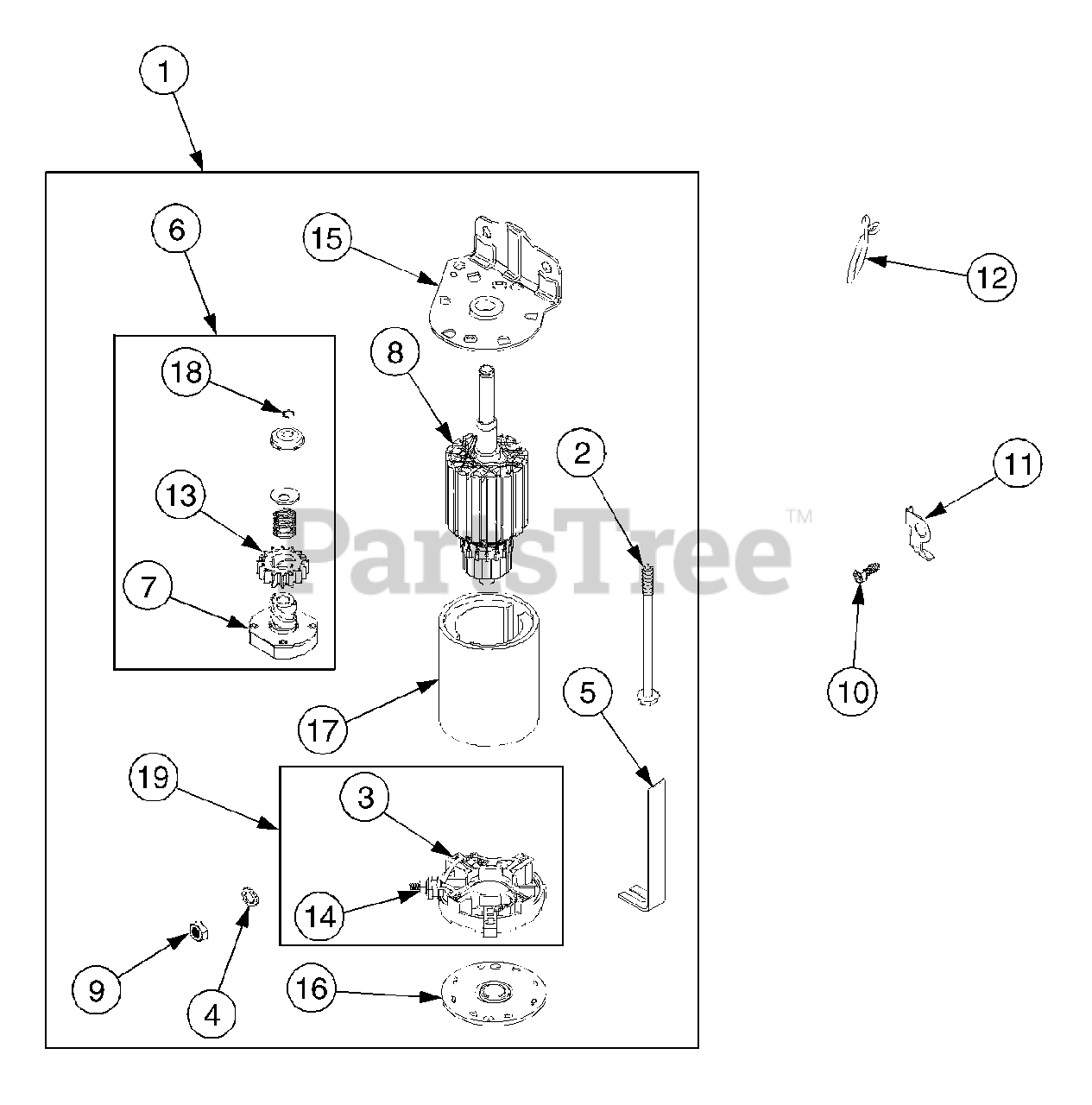

Starter Motor Parts Diagram

  • Title

1

Cub Cadet BS-693551

Motor, Starter
(Superseded to BS-593934)

$131.99

$

In Stock, Qty 20+

0

2

Cub Cadet BS-690323

Screw (Starter Motor)

$4.49

$

In Stock, Qty 7

0

3

Cub Cadet BS-497608

Brush Set

$27.99

$

In Stock, only 3 left!

0

4

Cub Cadet BS-691261

Washer (Brush Retainer)

$3.99

$

In Stock, only 3 left!

0

5

Cub Cadet BS-691532

Strap, Starter

$6.49

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-693699

Drive, Starter
(Superseded to BS-593934)

$131.99

$

In Stock, Qty 20+

0

7

Cub Cadet BS-692024

Clutch, Drive

$21.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-692034

Armature, Starter

$82.99

$

Usually ships in 2-12 days

0

9

Cub Cadet BS-691029

Nut (Starter Cable)

$5.49

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-690372

Screw (Drive Cap)
(Superseded to BS-791680)

$3.99

$

In Stock, Qty 6

0

11

Cub Cadet BS-691224

Clip, Wire

$4.99

$

Usually ships in 2-12 days

0

12

Cub Cadet BS-694123

Clip, Wire

$4.49

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-693713

Gear, Pinion
(Superseded to BS-593935)

$26.99

$

In Stock, only 1 left!

0

14

Cub Cadet BS-693167

Nut (Brush Retainer)

$4.49

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-691283

Cap, Drive

$83.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-691286

Cap, End

$26.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-693757

Housing, Starter

$25.99

$

Usually ships in 2-12 days

0

18

Cub Cadet BS-691265

Ring, Retaining

$5.49

$

In Stock, Qty 7

0

19

Cub Cadet BS-691293

Retainer, Brush

$29.99

$

In Stock, Qty 6

0
