RZT-42 (17BA5A4G712) - Cub Cadet 42" RZT Zero-Turn Mower, Briggs & Stratton Intek Fuel System And Controls Parts Diagram

42" RZT Zero-Turn Mower, Briggs & Stratton Intek

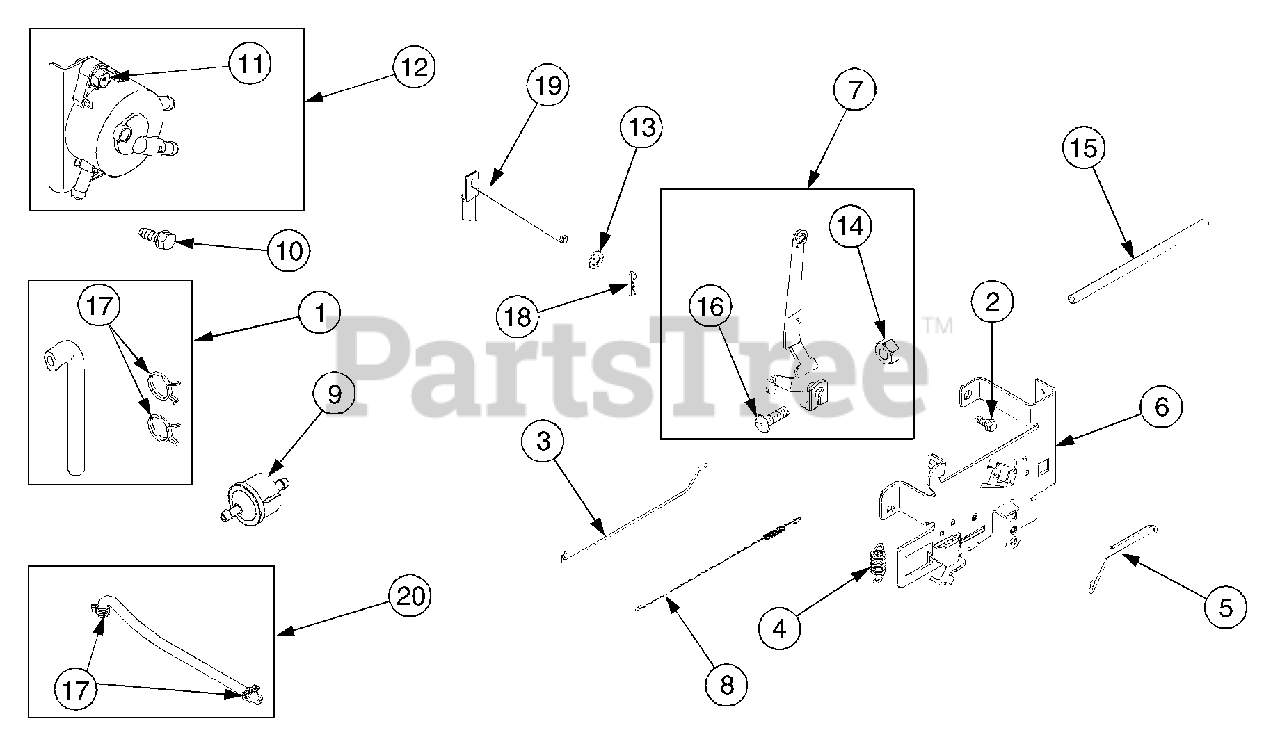

Fuel System And Controls Parts Diagram

  • Title

1

Cub Cadet BS-698417

Line, Fuel
(Superseded to BS-791805)

$24.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-691693

Screw (Control Bracket)

$3.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-691841

Link, Mechanical Governor

$9.49

$

In Stock, Qty 13

0

4

Cub Cadet BS-692208

Spring, Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 13

0

5

Cub Cadet BS-691840

Link, Choke

$8.99

$

In Stock, Qty 19

0

6

Cub Cadet BS-694042

Bracket, Control
(Superseded to BS-597209)

$38.99

$

In Stock, Qty 20+

0

7

Cub Cadet BS-691374

Control Lever, Governor

$26.99

$

In Stock, only 2 left!

0

8

Cub Cadet BS-691842

Spring, Governor Link

$11.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-691035

Filter, Fuel
(Superseded to BS-84001895)

$7.99

$

In Stock, Qty 20+

0

10

Cub Cadet BS-694476

Screw (Fuel Pump)

$3.99

$

In Stock, only 1 left!

0

11

Cub Cadet BS-690297

Screw (Fuel Pump)

$3.49

$

In Stock, Qty 12

0

12

Cub Cadet BS-697090

Pump, Fuel

$

$

Not available

13

Cub Cadet BS-691691

Washer

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

15

Cub Cadet BS-690581

Shield, Cable

$12.99

$

Usually ships in 2-12 days

0

16

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

17

Cub Cadet BS-95162

Clamp, Hose
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-691620

Pin, Cotter
(Superseded to BS-93306)

$

$

Not available

19

Cub Cadet BS-692012

Crank, Governor

$13.99

$

In Stock, only 2 left!

0

20

Cub Cadet BS-697091

Hose, Vacuum
(Superseded to BS-791851)

$14.99

$

In Stock, only 1 left!

0
