RZT-42 (17BA5A4G712) - Cub Cadet 42" RZT Zero-Turn Mower, Briggs & Stratton Intek Electrical Parts Diagram

42" RZT Zero-Turn Mower, Briggs & Stratton Intek

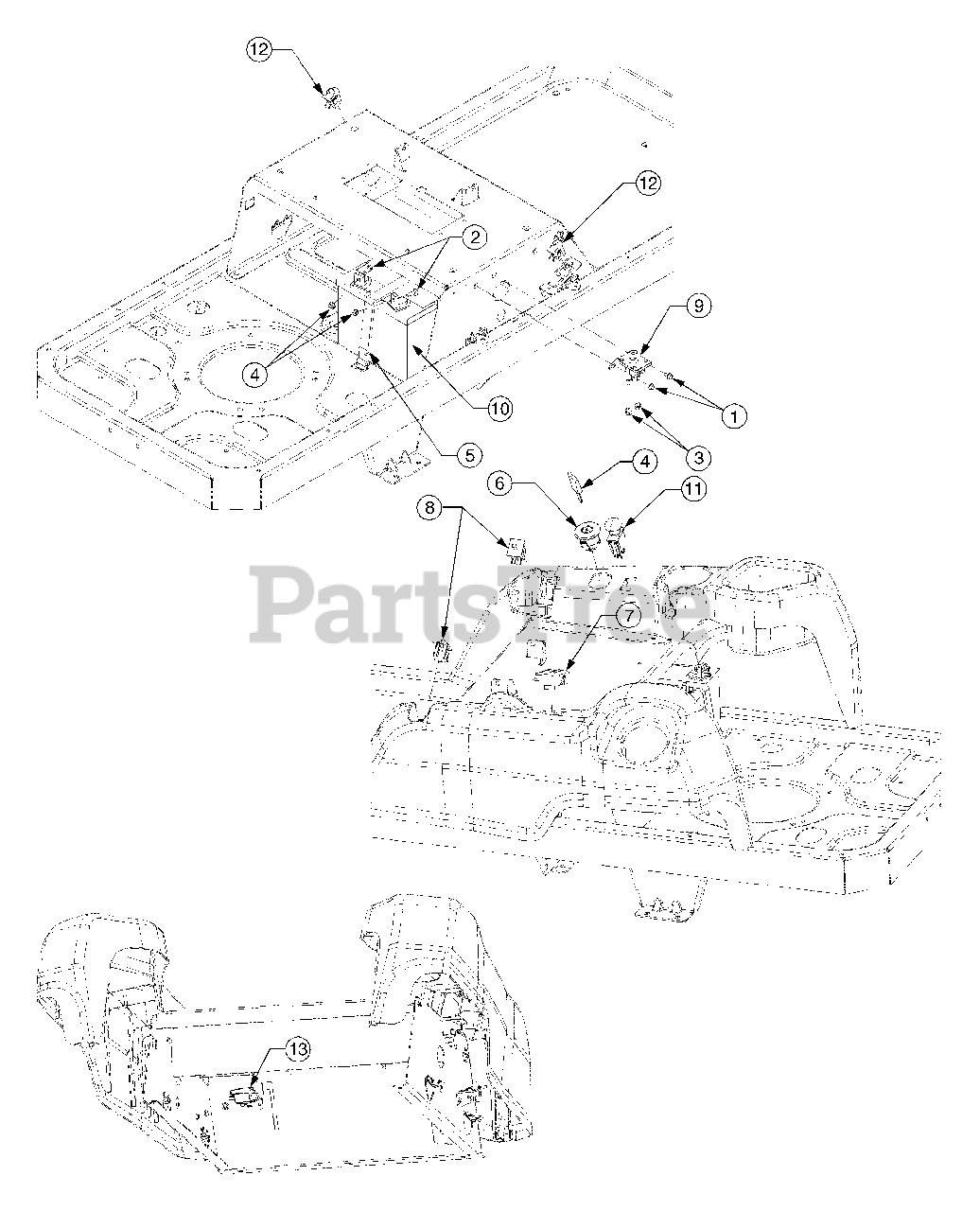

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 925-1745

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

5

Cub Cadet 723-0467

Strap, Battery

$

$

Not available

Cub Cadet 732-0696

Hook, Wire Rectangular

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-04228

Switch, Ignition
(Superseded to 925-04228)

$39.99

$

In Stock, Qty 20+

0

7

Cub Cadet 725-04036A

Meter, Hour
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 725-04165

Switch, Dbl. Pole - Neutral
(Superseded to 925-04165)

$32.99

$

In Stock, only 4 left!

0

9

Cub Cadet 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-1707D

Battery, 245 CCA
(Superseded to 925-1707D)

$

$

Not available

11

Cub Cadet 725-04174

Switch, PTO
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

12

Cub Cadet 725-3166

Switch, Snap Mount (N.C.) - Reverse
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-04232

Switch, 3-Pole, (NC-NO-NO) - Brake

$49.99

$

In Stock, only 2 left!

0

Cub Cadet 725-04244

Harness Assembly, Wire Not Shown
(Superseded to 925-04244)

$281.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-04245

Jumper Harness, Neutral Not Shown

$

$

Not available

Cub Cadet 725-04187

Cable Wire, Red - Starter Not Shown

$

$

Not available

Cub Cadet 725-04188

Cable Wire, Black - to Ground Not Shown

$

$

Not available

Cub Cadet 625-04023

Cable Wire, Red - Solenoid Not Shown
(Superseded to 625-04023A)

$

$

Not available
