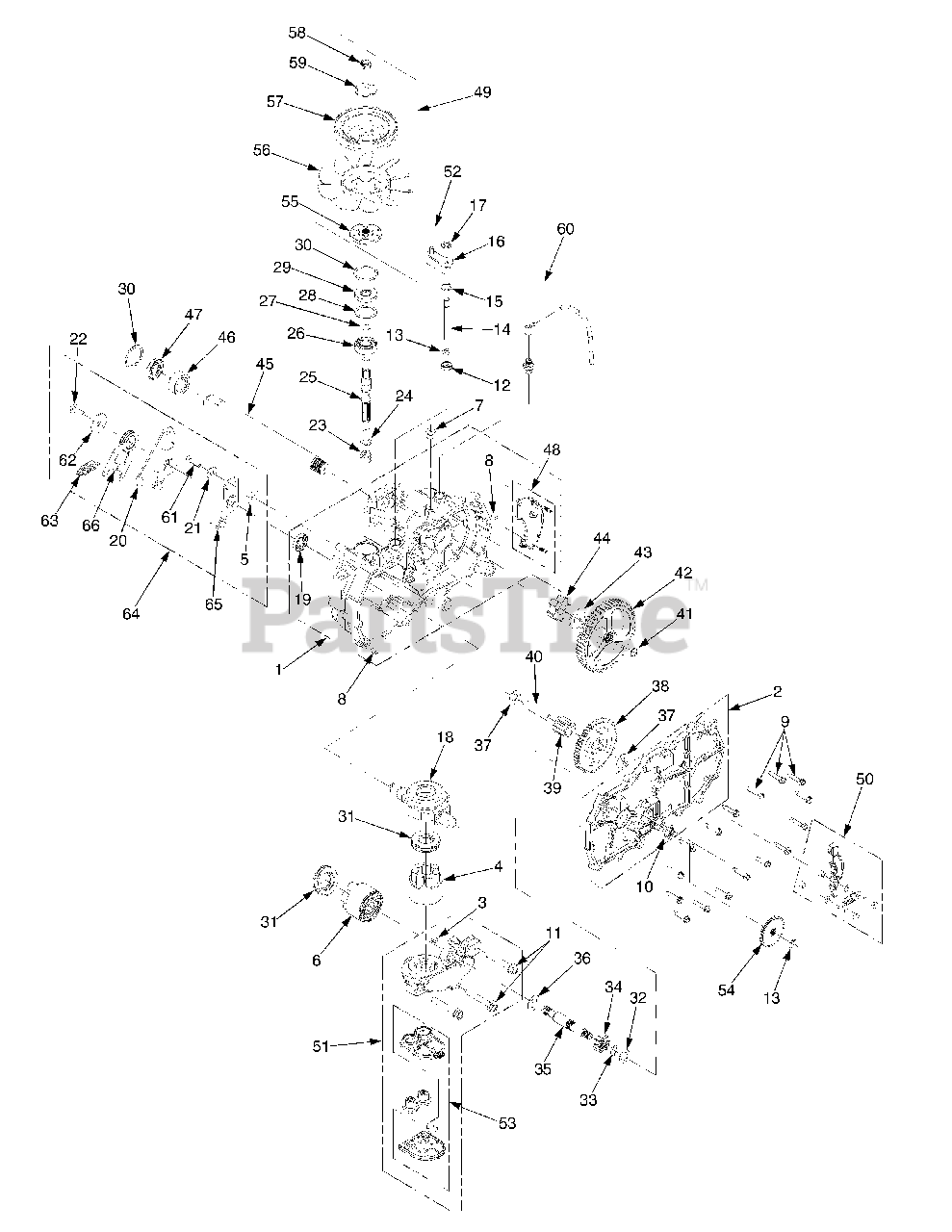

RZT-42 (17AJ2ACG897) - Columbia 42" Zero-Turn Mower (2009) Transmission RH Parts Diagram

42" Zero-Turn Mower

Transmission RH Parts Diagram

  • Title

1

White Outdoor HG-70862R

Housing Ass’y, Main RH

$410.99

$

In Stock, only 1 left!

0

2

White Outdoor HG-70863R

Side Ass’y RH

$127.99

$

Usually ships in 3-6 days

0

3

White Outdoor HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

4

White Outdoor HG-70723

Block Kit - 7 Piston

$228.99

$

Usually ships in 3-6 days

0

5

White Outdoor HG-52527

Spacer, .32 x 1.005 x .179
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

6

White Outdoor HG-70331

Block Assembly, Cylinder

$188.99

$

Usually ships in 3-6 days

0

7

White Outdoor HG-9005110-5600

Straight Thread Pipe

$20.99

$

Usually ships in 3-6 days

0

8

White Outdoor HG-9004800-2506

Std. Handle Pin

$4.49

$

Usually ships in 3-6 days

0

9

White Outdoor HG-51190

Hex Flange Screw
(Superseded to HG-53246)

$3.99

$

Usually ships in 3-6 days

0

10

White Outdoor HG-70719

Oil Seal .625 x 1.0 x .25

$14.99

$

Usually ships in 3-6 days

0

11

White Outdoor HG-50016

Screw

$4.99

$

Usually ships in 3-6 days

0

12

White Outdoor HG-51626

Seal, Lip
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

13

White Outdoor HG-51628

Retaing Ring .375 Ext.

$4.49

$

In Stock, Qty 5

0

14

White Outdoor HG-51625

Rod, Bypass

$16.99

$

Usually ships in 3-6 days

0

15

White Outdoor HG-51627

Retaining Ring .75 Int.

$4.49

$

Usually ships in 3-6 days

0

16

White Outdoor HG-51910

Arm, Bypass

$14.99

$

Usually ships in 3-6 days

0

17

White Outdoor HG-51630

Retaining Ring

$3.99

$

In Stock, only 1 left!

0

18

White Outdoor HG-51048

Swashplate, trunnion

$88.99

$

Usually ships in 3-6 days

0

19

White Outdoor HG-51140

Seal, Lip

$9.99

$

Usually ships in 3-6 days

0

20

White Outdoor HG-51841

Control Arm RH

$14.99

$

In Stock, only 1 left!

0

21

White Outdoor 736-0371

Washer 7/16 x 7/8 x .060

$4.49

$

In Stock, only 3 left!

0

22

White Outdoor HG-51812

Screw, 5/16-24 x 1.0

$4.49

$

Usually ships in 3-6 days

0

23

White Outdoor HG-2003014

Block Washer

$4.99

$

Usually ships in 3-6 days

0

24

White Outdoor HG-2003017

Block Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

25

White Outdoor HG-51062

Input Shaft
(Superseded to HG-51062P)

$134.99

$

Usually ships in 3-6 days

0

26

White Outdoor HG-50315

Ball Bearing

$18.99

$

Usually ships in 3-6 days

0

27

White Outdoor HG-2000022

Retaining Ring

$4.49

$

Usually ships in 3-6 days

0

28

White Outdoor HG-50951

Spacer

$4.49

$

Usually ships in 3-6 days

0

29

White Outdoor HG-51161

Lip Seal

$11.99

$

Usually ships in 3-6 days

0

30

White Outdoor HG-50329

Retaining Ring

$11.99

$

Usually ships in 3-6 days

0

31

White Outdoor HG-50551P

Thrust Washer

$29.99

$

Usually ships in 3-6 days

0

32

White Outdoor HG-44371

Flat Washer 5/8 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

33

White Outdoor HG-44145

Retaining Ring

$4.49

$

In Stock, only 2 left!

0

34

White Outdoor HG-51130

Gear, Pinion, 13T

$9.49

$

Usually ships in 3-6 days

0

35

White Outdoor HG-51632

Shaft, Motor

$

$

Not available

36

White Outdoor HG-51069

Motor Shaft Washer

$4.49

$

Usually ships in 3-6 days

0

37

White Outdoor HG-50132

Washer, HT

$4.49

$

Usually ships in 3-6 days

0

38

White Outdoor HG-51129

Gear, 10T/48T

$53.99

$

Usually ships in 3-6 days

0

39

White Outdoor HG-51043

Gear, 10T Jackshaft

$28.99

$

Usually ships in 3-6 days

0

40

White Outdoor HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

41

White Outdoor HG-52531

Retaining Ring

$3.49

$

In Stock, only 1 left!

0

42

White Outdoor HG-52541

Gear, Bull, 52T

$61.99

$

Usually ships in 3-6 days

0

43

White Outdoor HG-52532

Washer, 1.018 x 1.57 x

$2.99

$

Usually ships in 3-6 days

0

44

White Outdoor HG-52542

Sleeve Bearing

$6.49

$

Usually ships in 3-6 days

0

45

White Outdoor HG-52545

Shaft, Axle, 1.0 x 11.7

$91.99

$

Usually ships in 3-6 days

0

46

White Outdoor HG-51517

Bearing, Sleeve

$11.99

$

Usually ships in 3-6 days

0

47

White Outdoor HG-51518

Seal, Lip

$12.99

$

Usually ships in 3-6 days

0

48

White Outdoor HG-70868R

Plate Kit, Expansion RH

$18.99

$

Usually ships in 3-6 days

0

49

White Outdoor HG-71351

Kit, Fan Pulley
(Superseded to HG-72134)

$63.99

$

In Stock, Qty 6

0

50

MTD HG-71356

Kit, Brake Arm

$22.99

$

Usually ships in 3-6 days

0

51

White Outdoor HG-71530

Kit, Center Section RH

$217.99

$

In Stock, only 2 left!

0

52

White Outdoor HG-71006

Kit, Bypass Arm RH

$19.99

$

Usually ships in 3-6 days

0

53

White Outdoor HG-71497

Filter Assembly

$19.99

$

Usually ships in 3-6 days

0

54

White Outdoor HG-51635

Disc, Brake Cog

$17.99

$

Usually ships in 3-6 days

0

55

White Outdoor HG-52366

Hub, Pulley

$

$

Not available

56

MTD HG-52365

Fan, 7" 10 Blade
(Superseded to HG-53050)

$21.99

$

In Stock, only 2 left!

0

57

White Outdoor HG-52364

Pulley, 4.5
(Superseded to HG-53804)

$

$

Not available

58

White Outdoor 912-0346

Hex Ins. L-Nut 1/2-20
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 8

0

58

White Outdoor HG-70853

Seal Kit

$70.99

$

Usually ships in 3-6 days

0

58

White Outdoor HG-50928

Sealant

$103.99

$

In Stock, Qty 8

0

59

MTD HG-51523

OD Slotted Washer

$3.99

$

In Stock, Qty 8

0

60

White Outdoor HG-71510

Breather Kit

$22.99

$

In Stock, only 2 left!

0

60

White Outdoor HG-71510

Breather Kit

$22.99

$

In Stock, only 2 left!

0

60

White Outdoor HG-71510

Breather Kit

$22.99

$

In Stock, only 2 left!

0

61

White Outdoor HG-71341

Screw, Patch 5/16-24 x

$9.49

$

Usually ships in 3-6 days

0

61

White Outdoor HG-51616

Screw, Patch 5/16-24 x
(Superseded to HG-71341)

$9.49

$

Usually ships in 3-6 days

0

62

White Outdoor HG-51950

Washer, .343 x 1.5 x .062
(Superseded to HG-54244)

$6.49

$

Usually ships in 3-6 days

0

63

White Outdoor 732-04448

Extension Spring

$10.99

$

In Stock, Qty 20+

0

64

White Outdoor HG-71095

Kit, Return Assembly RH

$

$

Not available

65

White Outdoor HG-51945

Arm, Neutral

$13.99

$

In Stock, only 1 left!

0

66

White Outdoor HG-52432

Scissors Arm Kit

$24.99

$

Usually ships in 3-6 days

0
