RZT-42 (17AJ2ACG897) - Columbia 42" Zero-Turn Mower (2009) Mower Deck 42 Inch Parts Diagram

42" Zero-Turn Mower

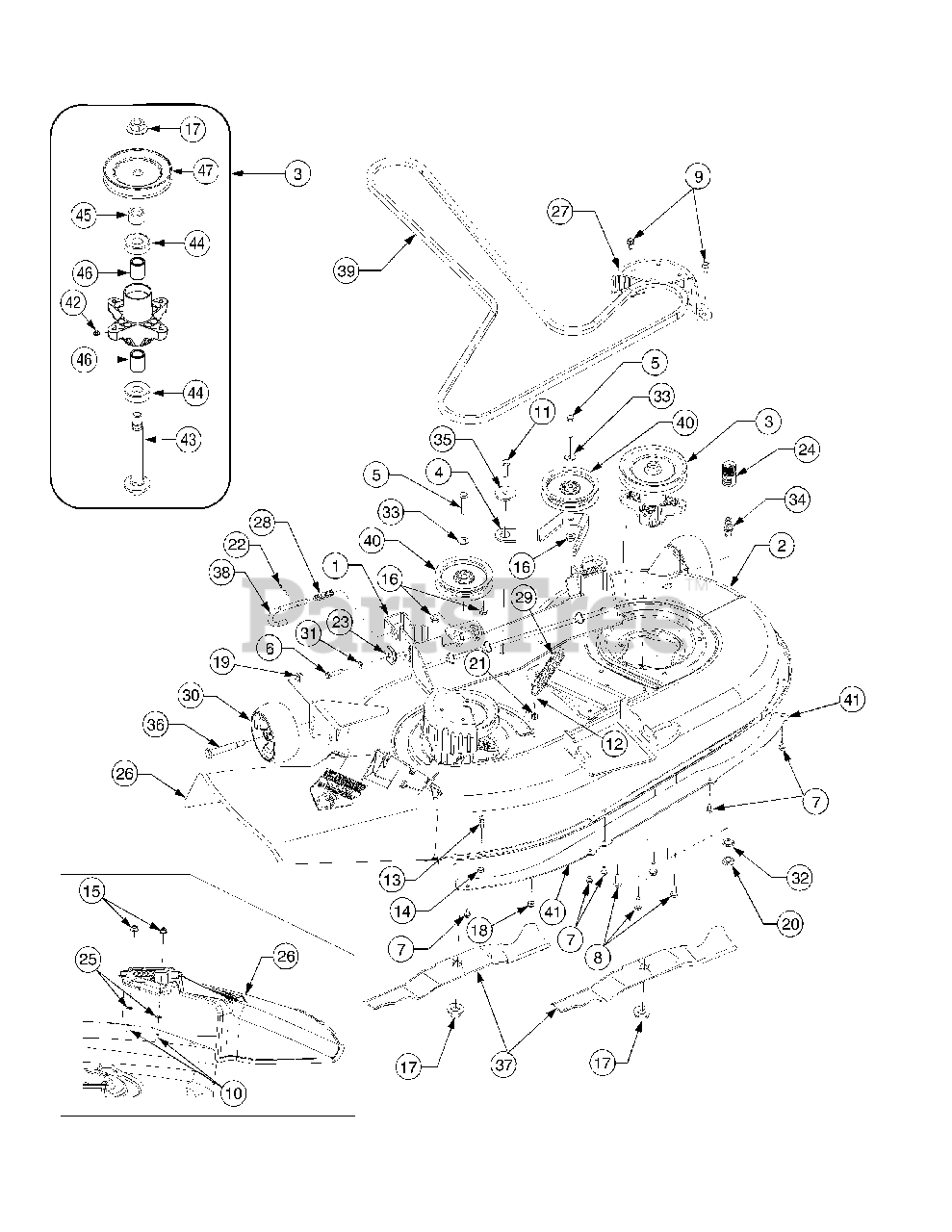

Mower Deck 42 Inch Parts Diagram

  • Title

1

White Outdoor 603-04156-0606

Deck Lift Bracket
(Superseded to 603-04156-0637)

$48.99

$

In Stock, only 1 left!

0

2

White Outdoor 903-04335C-0606

Deck Housing
(Superseded to 903-04335C-0637)

$821.99

$

Usually ships in 3-6 days

0

3

White Outdoor 918-0659

Spindle Assembly
(Superseded to 918-0624B)

$149.99

$

In Stock, Qty 6

0

4

White Outdoor 703-05824B-0606

Idler Arm
(Superseded to 703-05824C-0691)

$41.99

$

In Stock, Qty 18

0

5

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0528

Hex Bolt 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-1260A

Hex Wash. Hd. Scr. 5/16-18 x .75 Lg.

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 710-0726

Hex Wash HD AB Tap Scr 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

10

White Outdoor 710-0751

Hex Bolt 1/4-20 x .62 Gr. 5

$3.99

$

In Stock, Qty 20+

0

11

White Outdoor 710-3005

Hex Bolt 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

12

White Outdoor 710-3180

Hex Screw 5/16-18 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

13

White Outdoor 911-04069

Grasscatcher Pin 1/4-20

$8.49

$

In Stock, Qty 20+

0

14

White Outdoor 712-0324

Hex Ins. Locknut 1/4-20

$3.99

$

In Stock, Qty 16

0

15

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 712-04065

Flange Lock-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

17

White Outdoor 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

White Outdoor 912-0429

Hex Ins. L-Nut 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 912-0431

Hex. Flanged L-Nut 3/8-16 Gr. F

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 912-0641

Hex Nut M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

21

White Outdoor 912-3010

Hex Nut 5/16-18 hd. (Gr. 5)
(Superseded to 712-3010)

$

$

Not available

22

White Outdoor 914-0470

Cotter Pin 1/8" Dia x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 14

0

24

White Outdoor 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

25

White Outdoor 726-0233

Bolt Retainer 1/4" x .50" OD

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 931-1032B

Chute Deflector (Plas tic)
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

27

White Outdoor 731-2231B

Belt Cover

$46.99

$

In Stock, only 3 left!

0

28

White Outdoor 932-0306A

Compression Spring

$8.49

$

In Stock, only 4 left!

0

29

White Outdoor 732-04609

Extension Spring .94 OD x 6.74

$16.99

$

In Stock, only 1 left!

0

30

White Outdoor 734-04155

Deck Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

31

White Outdoor 936-0119

L-Wash 5/16 ID

$4.99

$

In Stock, Qty 20+

0

32

White Outdoor 736-0225

L-Washer Internal

$4.49

$

In Stock, only 2 left!

0

33

White Outdoor 736-3072

Flat Washer .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 737-04003D

Port, Water

$23.99

$

In Stock, Qty 6

0

35

White Outdoor 738-04162A

Shoulder Spacer .884 x .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

36

White Outdoor 938-3056

Shoulder Screw, 1/2 Diameter x 2.5

$9.49

$

In Stock, Qty 20+

0

37

White Outdoor 942-0616A

Blade 21.23" lg.

$31.99

$

In Stock, Qty 20+

0

38

White Outdoor 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

39

White Outdoor 954-04137A

V-Belt Type A Sec x 114.1
(Superseded to 954-04137B)

$44.99

$

In Stock, only 2 left!

0

40

White Outdoor 756-04129

Idler Pulley w/Flange 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

41

White Outdoor 753-0884

Deck Skirt

$82.99

$

Usually ships in 3-6 days

0

42

White Outdoor 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

43

White Outdoor 738-1010A

Spindle Shaft 5.75

$46.99

$

In Stock, only 2 left!

0

44

White Outdoor 941-0919

Ball Bearing 20 x 47 x 14:6204:DS
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

45

White Outdoor 748-0433

Spacer .820 x 1.150 x .730 Lg.

$5.99

$

In Stock, Qty 5

0

46

White Outdoor 750-1000

Spacer .080 x 1.10 x 1.322" Lg.

$4.49

$

In Stock, Qty 7

0

47

White Outdoor 956-1227

Deck Pulley 6.3 Dia.

$26.99

$

In Stock, only 4 left!

0
