RZT-42 (17AJ2ACG897) - Columbia 42" Zero-Turn Mower (2009) Front Axle 42 Inch Parts Diagram

42" Zero-Turn Mower

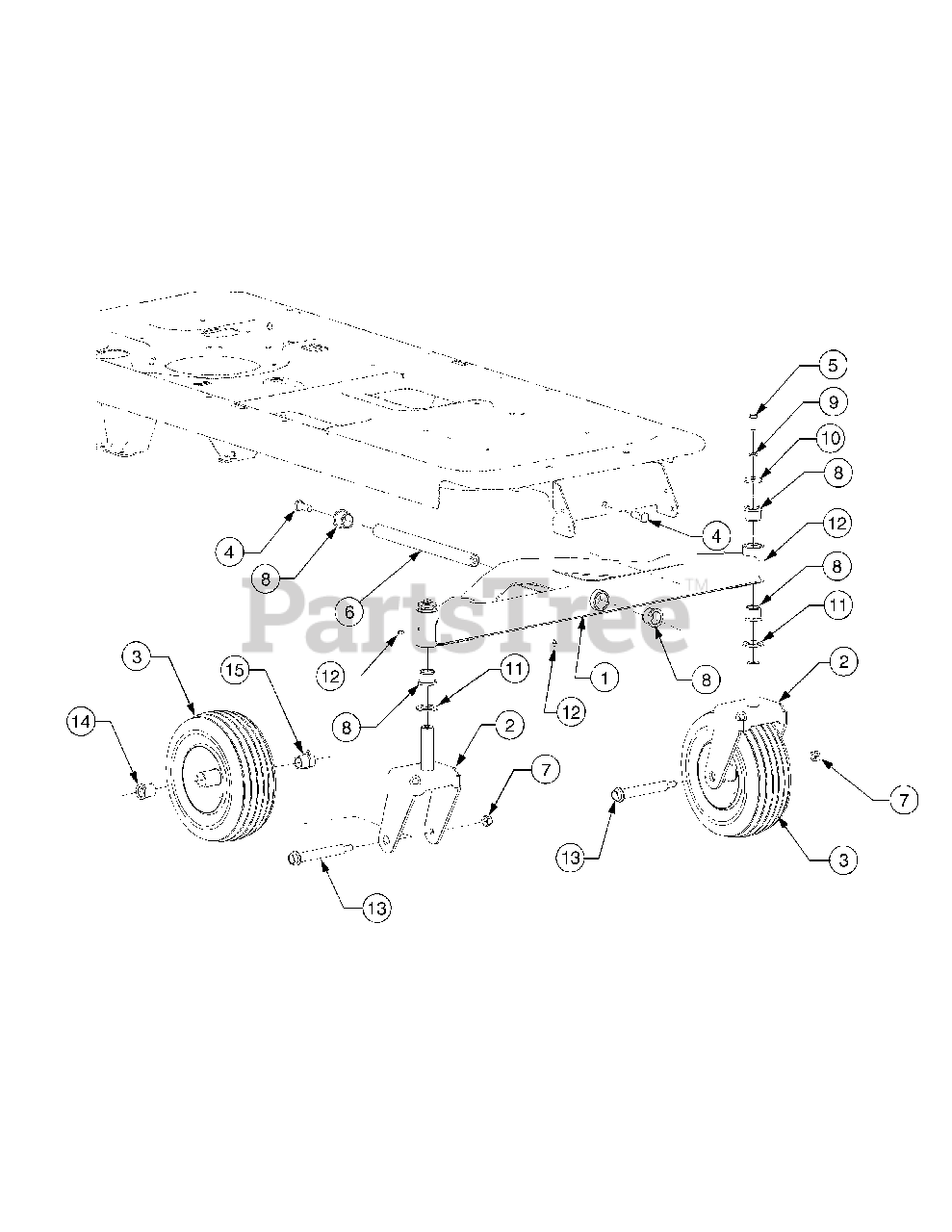

Front Axle 42 Inch Parts Diagram

  • Title

1

White Outdoor 603-04148C-0606

Front Pivot Axle

$

$

Not available

2

White Outdoor 603-04308-0606

Caster Wheel Bracket
(Superseded to 603-04308A-0637)

$98.99

$

Usually ships in 3-6 days

0

3

White Outdoor 634-04237A

Wheel Ass’y 11 .0 x 4.0 x 5.0 Grey
(Superseded to 634-04237C)

$162.99

$

In Stock, Qty 6

0

3

White Outdoor 934-0255

Air Valve

Note: Not shown

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-04186

Hex Lock Screw 1/2-13 x 1.25 Gr. 5

$7.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0514

Hex Screw 3/16 x 1.00

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 911-04228

Axle Shaft

$77.99

$

In Stock, only 1 left!

0

7

White Outdoor 712-3022

Hex Cent. L-Nut 1/2-13 Thd. (Gr. 5)

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 731-05500

Flange Bearing 1.0 x 1,246

$10.99

$

In Stock, Qty 20+

0

9

White Outdoor 936-0169

L-Wash 3/8 ID
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

10

White Outdoor 936-0227

Flat Washer .39 ID x 1.5 OD x .135
(Superseded to 736-0227)

$

$

Not available

11

White Outdoor 736-0250

Flat Washer

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

13

White Outdoor 738-04182A

Shoulder Screw .75 x 4.75:7/16-14
(Superseded to 738-04182B)

$26.99

$

In Stock, Qty 17

0

14

White Outdoor 741-0516B

Flange Brg. .75" ID

$6.49

$

In Stock, Qty 20+

0

15

White Outdoor 741-0990B

Flange Brg. .76 ID w/Lube Ftg.

$10.99

$

In Stock, Qty 20+

0
