RZT-42 (17AJ2ACG897) - Columbia 42" Zero-Turn Mower (2009) Engine Connections Single Parts Diagram

42" Zero-Turn Mower

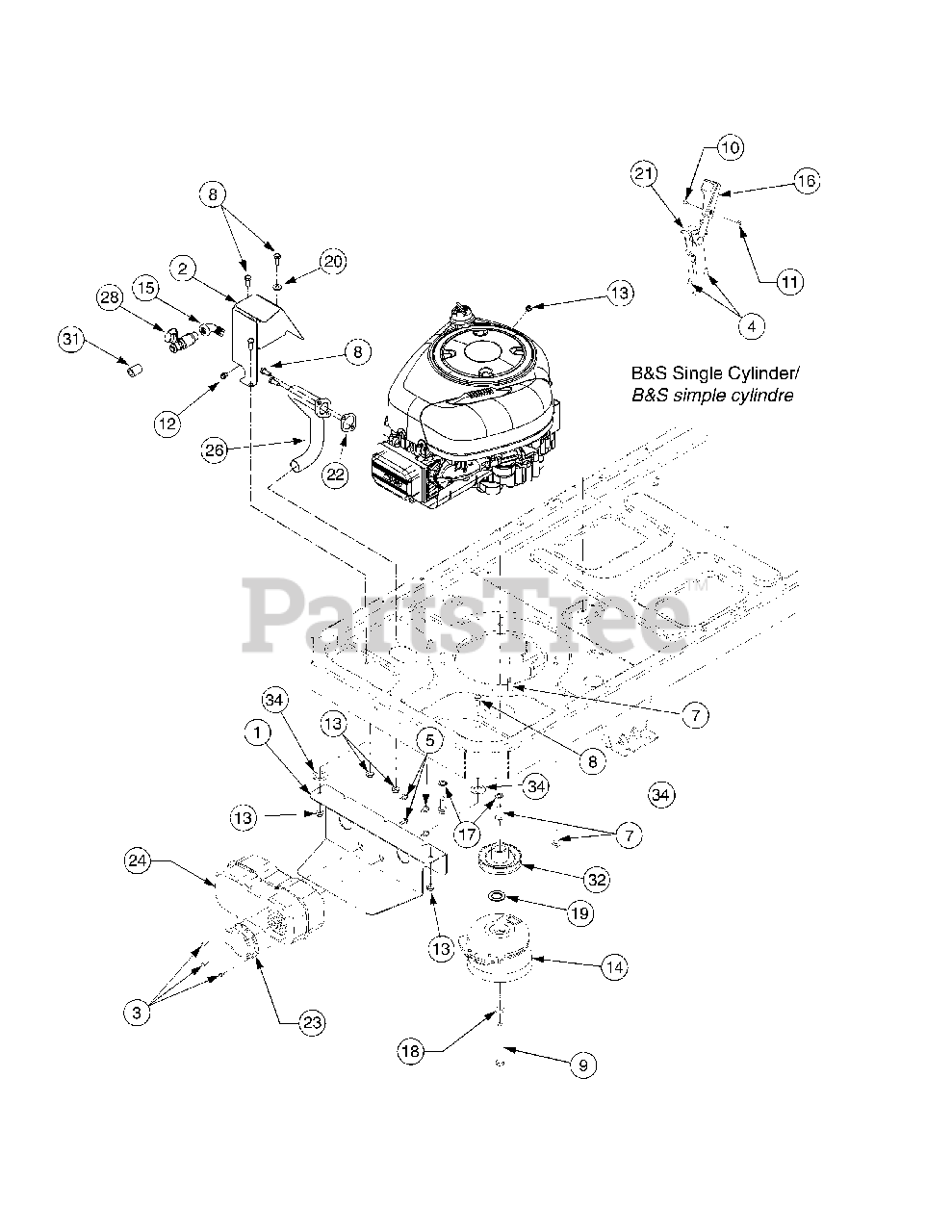

Engine Connections Single Parts Diagram

  • Title

1

White Outdoor 703-05441A

Muffler Mounting Bracket

$52.99

$

In Stock, only 2 left!

0

2

White Outdoor 703-05870

Muffler Tube Heat Shield

$96.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0227

Hex Wash HD AB S-Tapp Scr #8-.50

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-04261

Hex Wash. Hd. Tapp. Screw #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

5

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

9

White Outdoor 710-3157A

Hex Bolt 7/16-20 x 3.25 Gr. 5

$10.99

$

In Stock, Qty 20+

0

10

White Outdoor 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

11

White Outdoor 712-0142

Hex Nut #8-32, 0.375

$4.49

$

In Stock, Qty 10

0

12

White Outdoor 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 917-04376A

Clutch Ass’y Electric PTO

$525.99

$

In Stock, only 1 left!

0

15

White Outdoor 737-0125

Elbow Fitting

$

$

Not available

16

White Outdoor 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

17

White Outdoor 736-0148

L-Washer 3/8" ID (Ext. Tooth)

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 936-0171

Lockwasher 7/16 ID
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

19

White Outdoor 736-0277

Flat Washer 1.03 ID x 1.64 OD x .095

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 936-3008

Flat Washer .312 ID x .75 OD

$6.99

$

Usually ships in 3-6 days

0

21

White Outdoor 746-04161

Throttle Cable 39.0" Lg.
(Superseded to 946-04161)

$49.99

$

In Stock, only 2 left!

0

22

White Outdoor BS-692236

Gasket

$5.49

$

In Stock, Qty 20+

0

23

White Outdoor 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

24

White Outdoor 751-0617C

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

26

White Outdoor 603-04176A

Exhaust Pipe

$103.99

$

Usually ships in 3-6 days

0

28

White Outdoor 951-10517A

Oil Drain

$24.99

$

In Stock, only 3 left!

0

31

White Outdoor 751-3141-14

Oil Drain Hose

$11.99

$

In Stock, Qty 8

0

32

White Outdoor 756-04376

Drive Pulley

$44.99

$

In Stock, only 1 left!

0

34

White Outdoor 936-3039

Flat Washer .406 ID x 1.5 DE x .105
(Superseded to 736-3039)

$

$

Not available
