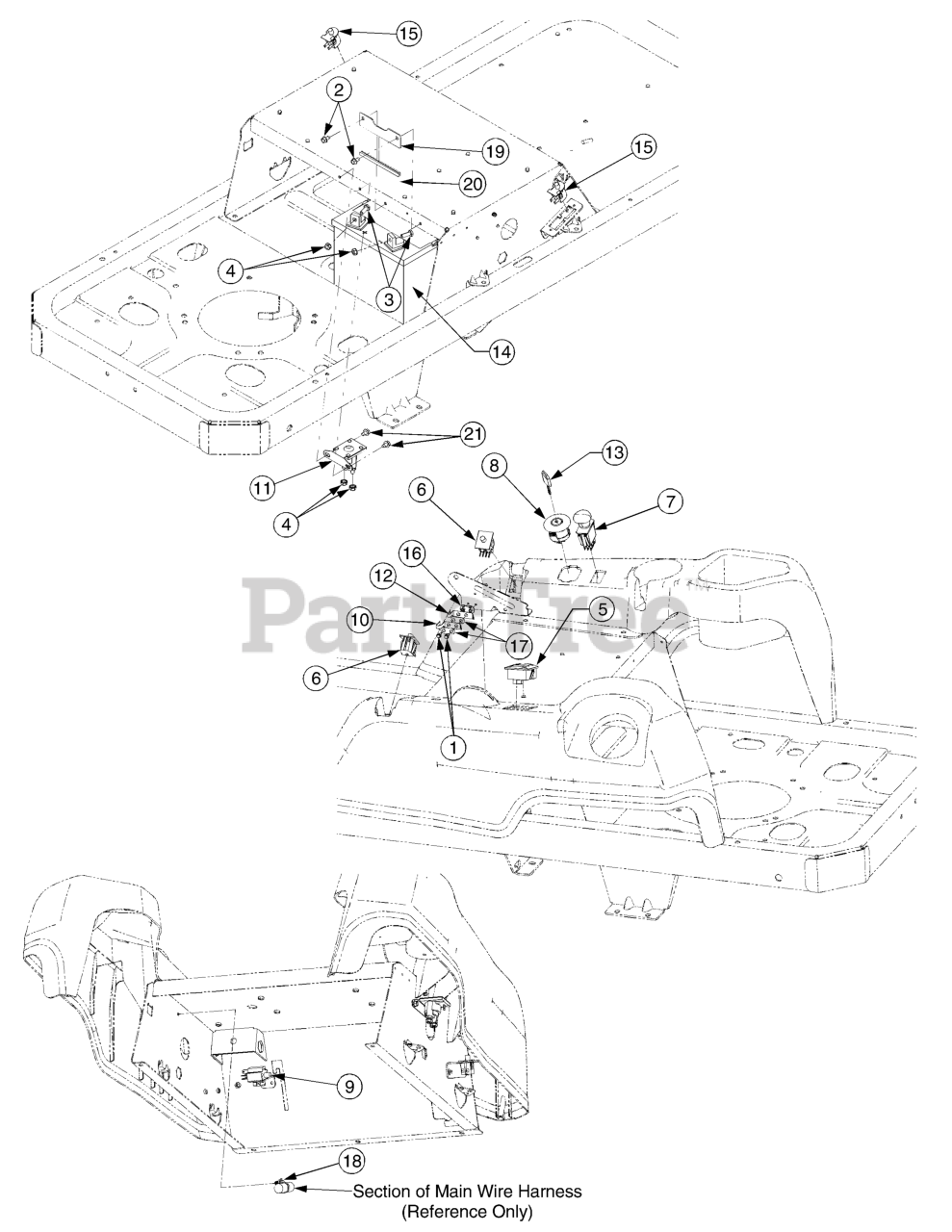

RZT-42 (17AE2ACG756) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2007) Electrical Parts Diagram

42" RZT Zero-Turn Mower, Kohler

Electrical Parts Diagram

  • Title
1

Cub Cadet 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 GR5 ..

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0271

Nut, Hex Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 725-04022B

Meter, Hour
(Superseded to 925-04022B)

$146.99

$

In Stock, Qty 5

0

6

Cub Cadet 725-04165

Switch, Dbl. Pole - Neutral
(Superseded to 925-04165)

$32.99

$

In Stock, only 4 left!

0

7

Cub Cadet 725-04174

Switch, PTO
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

8

Cub Cadet 725-04228

Switch, Ignition
(Superseded to 925-04228)

$39.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-04232

Switch, 3-Pole, (NC-NO-NO) - Brake

$49.99

$

In Stock, only 2 left!

0

10

Cub Cadet 725-1303

Switch, Outer Seat Spring
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

11

Cub Cadet 725-1426A

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-1439

Switch, Inner Seat Spring

$8.49

$

In Stock, Qty 10

0

13

Cub Cadet 925-1745

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-1707D

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

15

Cub Cadet 725-3166

Switch, Snap Mount (N.C.) - Reverse
(Superseded to 925-3166)

$16.99

$

In Stock, Qty 20+

0

16

Cub Cadet 726-0278

Plate, Insulator Boss

$6.99

$

In Stock, Qty 10

0

17

Cub Cadet 726-0279

Plate, Insulator

$3.99

$

In Stock, Qty 8

0

18

Cub Cadet 726-0470

Tie, Cable

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-05894

Bracket, Battery Holddown
(Superseded to 703-05894-0637)

Variations

Cub Cadet 703-05894-0637

Battery Hold-Down Bracket - POWDER BLACK (0637)

$29.99

$

In Stock, only 2 left!

0

$29.99

$

In Stock, only 2 left!

0

20

Cub Cadet 731-0511-5

Strip, Trim 4.5in

$13.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0653

Screw, Hex Wash. Hd. Tapp, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

Cub Cadet 725-04434

Harness Assembly, Wire

Note: not shown

$244.99

$

Usually ships in 3-6 days

0
