RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2010) Mower Deck Parts Diagram

42" RZT Zero-Turn Mower, Kohler

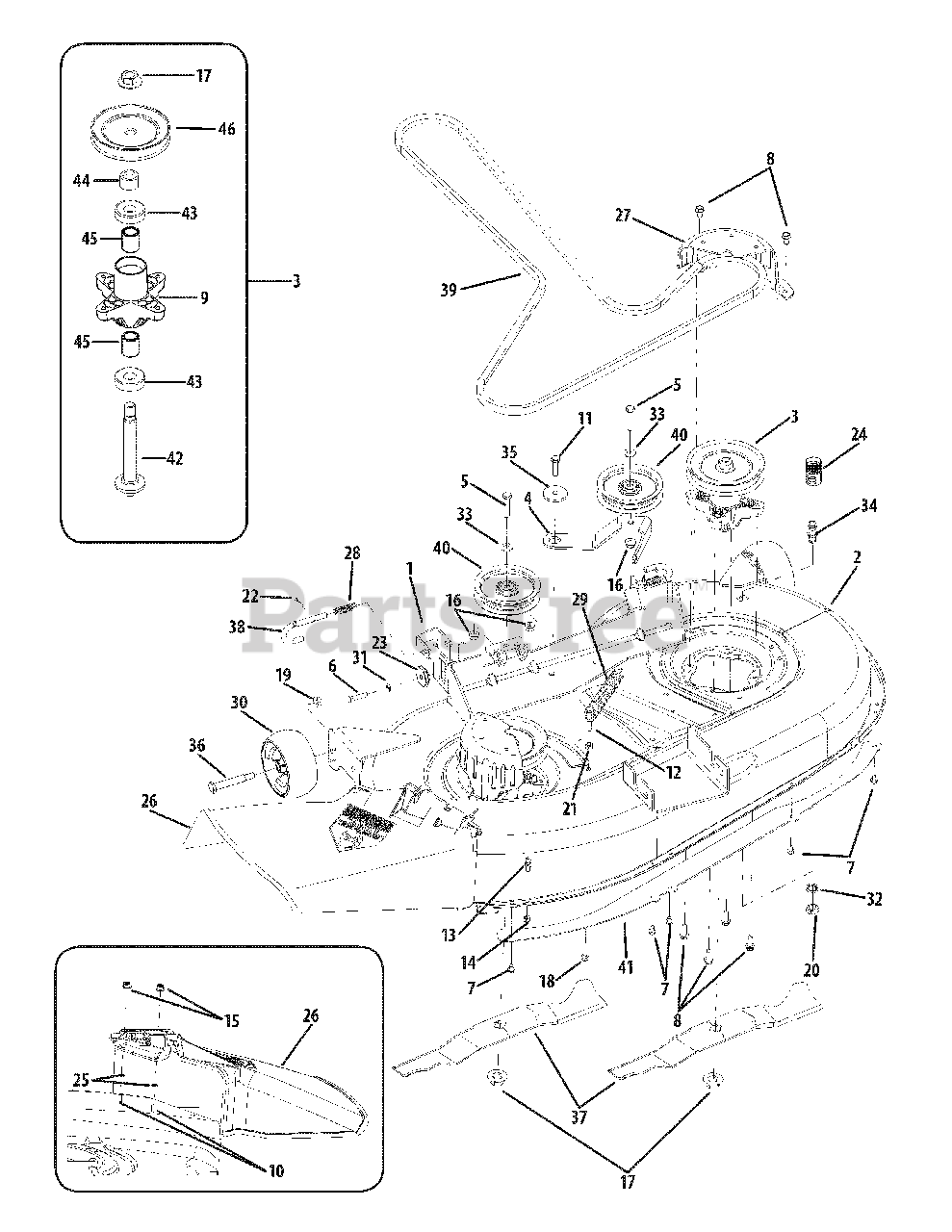

Mower Deck Parts Diagram

  • Title

1

Cub Cadet 603-04156-4021

Deck Lift Bracket
(Superseded to 603-04156-0637)

$48.99

$

In Stock, only 1 left!

0

2

Cub Cadet 903-04335C-4021

Deck Housing

$821.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-0624A

Spindle Assembly
(Superseded to 918-0624B)

$149.99

$

In Stock, Qty 6

0

4

Cub Cadet 703-05824C-4021

Idler Arm
(Superseded to 703-05824C-0691)

$41.99

$

In Stock, Qty 18

0

5

Cub Cadet 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0528

Hex Cap Screw, 5/16-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04484

Hex Washer Head Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet N/A

Spindle Housing

Note: Order Spindle Assembly

$

$

Currently unavailable

10

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

12

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$5.49

$

In Stock, Qty 11

0

13

Cub Cadet 911-04069

Grass Catcher Pin, 1/4-20

$8.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0324

Hex Insert Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

15

Cub Cadet 712-04064

Hex Insert Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

Hex Insert Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 912-0429

Hex Insert Lock, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 912-0431

Hex Flange Lock Nut, 3/8-16

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

21

Cub Cadet 912-3010

Hex Nut, 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

24

Cub Cadet 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

25

Cub Cadet 726-0233

Push Nut, .25 x .5

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 931-1032B

Discharge Chute Assembly (U.S.)
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

27

Cub Cadet 731-2231B

Belt Cover

$46.99

$

In Stock, only 3 left!

0

28

Cub Cadet 732-04652

Compression Spring, .535 x 1.751

$6.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-04609

Extension Spring, .94 Dia. x 6.74

$16.99

$

In Stock, only 1 left!

0

30

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

31

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0225

Lock Washer

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet 736-3072

Flat Washer, .38 x .93 x .11

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

35

Cub Cadet 738-04162A

Shoulder Spacer, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

36

Cub Cadet 938-3056

Shoulder Screw, 3/8-16 x .5 x 2.5

$9.49

$

In Stock, Qty 20+

0

37

Cub Cadet 942-0616A

Star 3-in-1 Blade, 21 (U.S.)

$31.99

$

In Stock, Qty 20+

0

38

Cub Cadet 747-1116

Deck Hanger Rod

$12.99

$

In Stock, Qty 6

0

39

Cub Cadet 954-04137A

V-Belt
(Superseded to 954-04137B)

$44.99

$

In Stock, only 3 left!

0

40

Cub Cadet 756-04129B

Idler Pulley, 4.25 Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

41

Cub Cadet 753-0884

Deck Skirt

$82.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 738-1010A

Spindle Shaft, 5.75

$46.99

$

In Stock, only 2 left!

0

43

Cub Cadet 941-0919

Ball Bearing
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

44

Cub Cadet 748-0433

Spacer, .820 x 1.15 x .73

$5.99

$

In Stock, Qty 5

0

45

Cub Cadet 750-1000

Spacer, .8 x 1.10 x 1.322

$4.49

$

In Stock, Qty 7

0

46

Cub Cadet 956-1227

Deck Pulley, 6.3 Dia

$26.99

$

In Stock, only 4 left!

0
