RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Seat Adjustment 2008 & Before Parts Diagram

42" RZT Zero-Turn Mower, Kohler

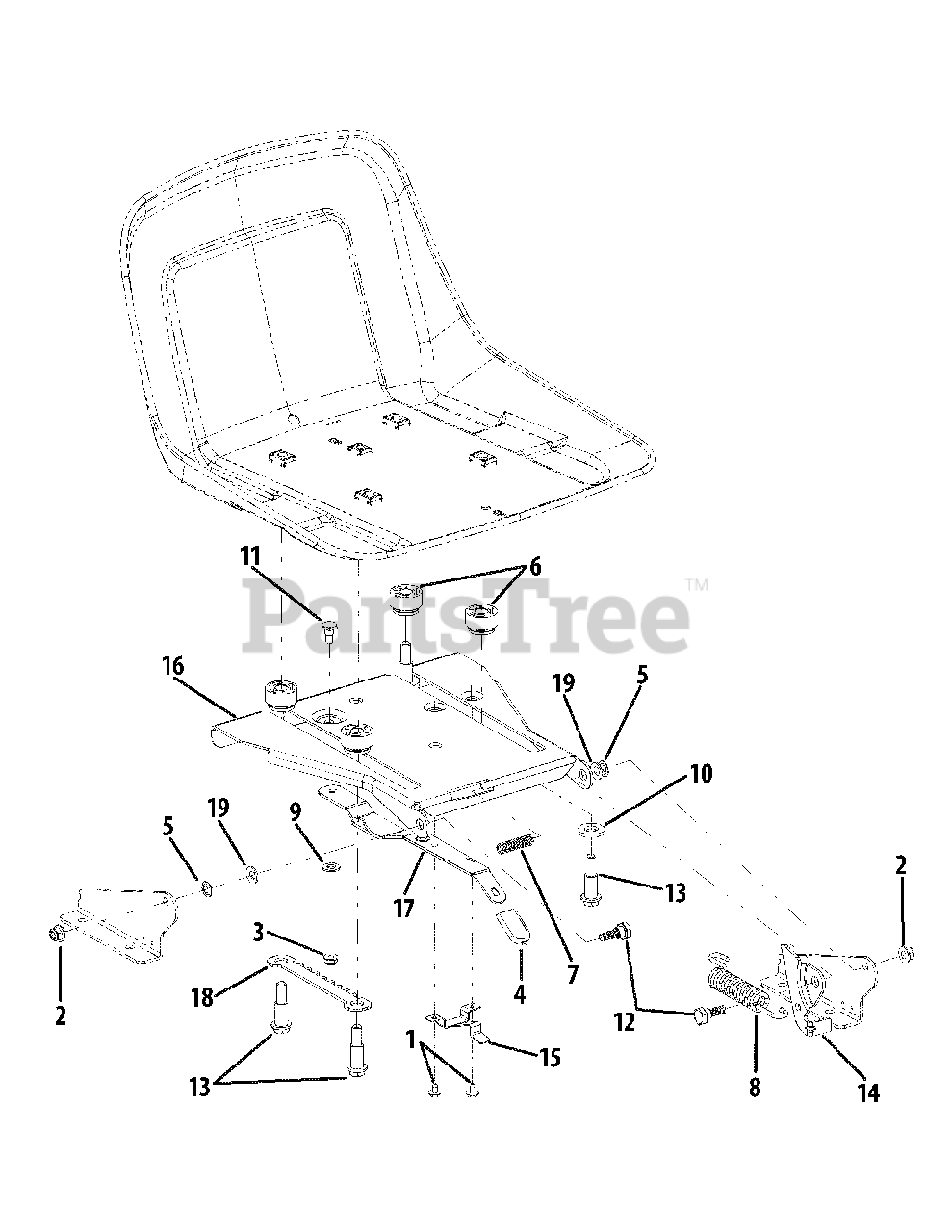

Seat Adjustment 2008 & Before Parts Diagram

  • Title
1

Cub Cadet 710-1268

Hex Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-04063

Hex Insert Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-04064

Hex Insert Flange Lock Nut,1/4-20

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 720-0309A

Seat Adjustment Grip

$9.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 731-04074

Seat Adjustment Spacer

$7.49

$

In Stock, Qty 20+

0

7

Cub Cadet 732-0499

Compression Spring, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet 732-1184

Extension Spring, .84 Dia. x 4.6

$11.99

$

In Stock, only 1 left!

0

9

Cub Cadet 736-0204

Flat Washer, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$5.99

$

In Stock, Qty 11

0

11

Cub Cadet 738-0137A

Shoulder Screw, .34 x .285 x 1/4-20

$10.99

$

In Stock, Qty 10

0

12

Cub Cadet 738-0296

Shoulder Screw, .437 x .268 x 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 738-0966A

Shoulder Screw, .5 x .925 x 3/8 -16

$4.99

$

In Stock, Qty 19

0

14

Cub Cadet 783-0209D

Seat Lift Bracket

$16.99

$

In Stock, only 1 left!

0

15

Cub Cadet 783-0611

Seat Adjustment Stop

$10.99

$

In Stock, only 3 left!

0

16

Cub Cadet 783-0738D

Seat Pivot Bracket

Variations

Cub Cadet 783-0738D-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0738D-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0738D-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0738D-0650

BRACKET-PIVOT:SEAT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0738D-0665

BRACKET-PIVOT:SEAT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0738D-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0738D-4015

BRACKET-PIVOT:SEAT - FIRE RED (4015)

$

$

Not available

Cub Cadet 783-0738D-4021

Seat Pivot Bracket - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 783-0738D-4008

BRACKET-PIVOT:SEAT - WINE RED (4008)

$

$

Not available

$

$

17

Cub Cadet 783-0739A

Seat Adjustment Lever
(Superseded to 783-0739A-0637)

Variations

Cub Cadet 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 783-0753

Seat Adjustment Index Bracket

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0242

Belleville Washer, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0
