RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Engine Head Valve Breather Parts Diagram

42" RZT Zero-Turn Mower, Kohler

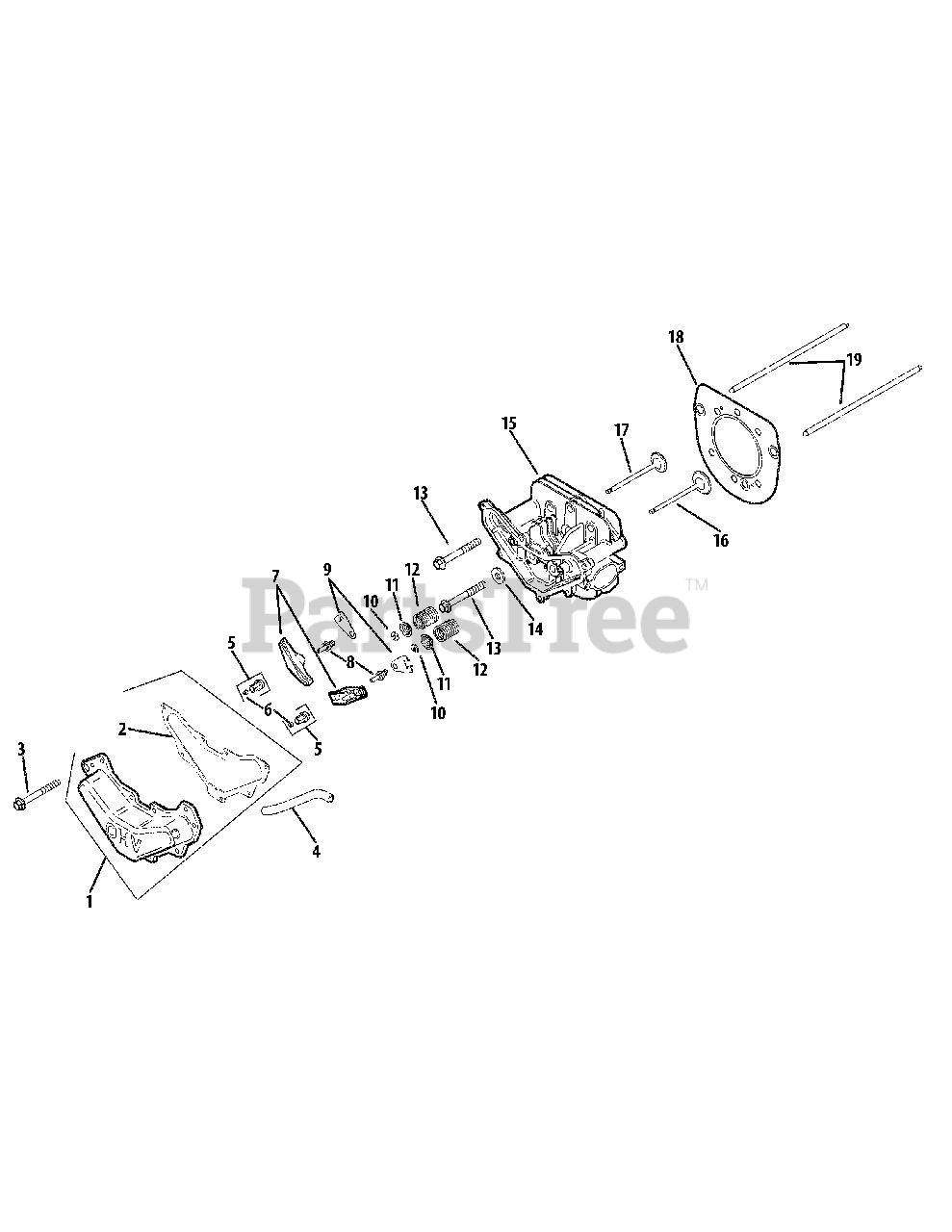

Engine Head Valve Breather Parts Diagram

  • Title

1

Cub Cadet KH-20-096-07-S

Valve Cover Kit
(Superseded to KH-20-096-14-S)

Note: (Inc. 2)

$47.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-20-041-13-S

Valve Cover Gasket

$13.99

$

In Stock, Qty 18

0

3

Cub Cadet KH-M-645020-S

Flg Thd Frm Screw, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

4

Cub Cadet KH-20-326-20-S

Breather Hose

$14.99

$

In Stock, Qty 5

0

5

Cub Cadet KH-20-599-02-S

Rocker Arm Pivot
(Superseded to KH-20-599-04-S)

Note: (Inc. 6)

$6.49

$

In Stock, Qty 5

0

6

Cub Cadet KH-20-086-04-S

Set Screw

$2.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-20-186-01-S

Rocker Arm

$8.99

$

In Stock, Qty 7

0

8

Cub Cadet KH-20-072-08-S

Rocker Stud

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-20-146-03-S

Push Rod Guide Plate

$2.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-20-062-01-S

Retainer Lock

$2.49

$

In Stock, only 1 left!

0

11

Cub Cadet KH-20-173-01-S

Valve Spring Cap

$2.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-20-089-03-S

Valve Spring

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-20-086-02-S

Flg Screw, M10 x 1.5 x 80

$3.99

$

In Stock, Qty 17

0

14

Cub Cadet KH-12-468-05

Flat Washer, 13/32"

$

$

Not available

15

Cub Cadet KH-20-318-07-S

Cylinder Head Assembly
(Superseded to KH-20-318-14-S)

$263.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-20-016-01-S

Exhaust Valve

$34.99

$

In Stock, only 1 left!

0

17

Cub Cadet KH-20-017-01-S

Intake Valve

$28.99

$

In Stock, only 1 left!

0

18

Cub Cadet KH-20-841-01-S

Cylinder Hd. Gasket

Note: (Inc. 2, 13 & 14)

$38.99

$

In Stock, Qty 8

0

19

Cub Cadet KH-20-411-04-S

Push Rod
(Superseded to KH-20-411-05-S)

$8.49

$

In Stock, Qty 8

0
