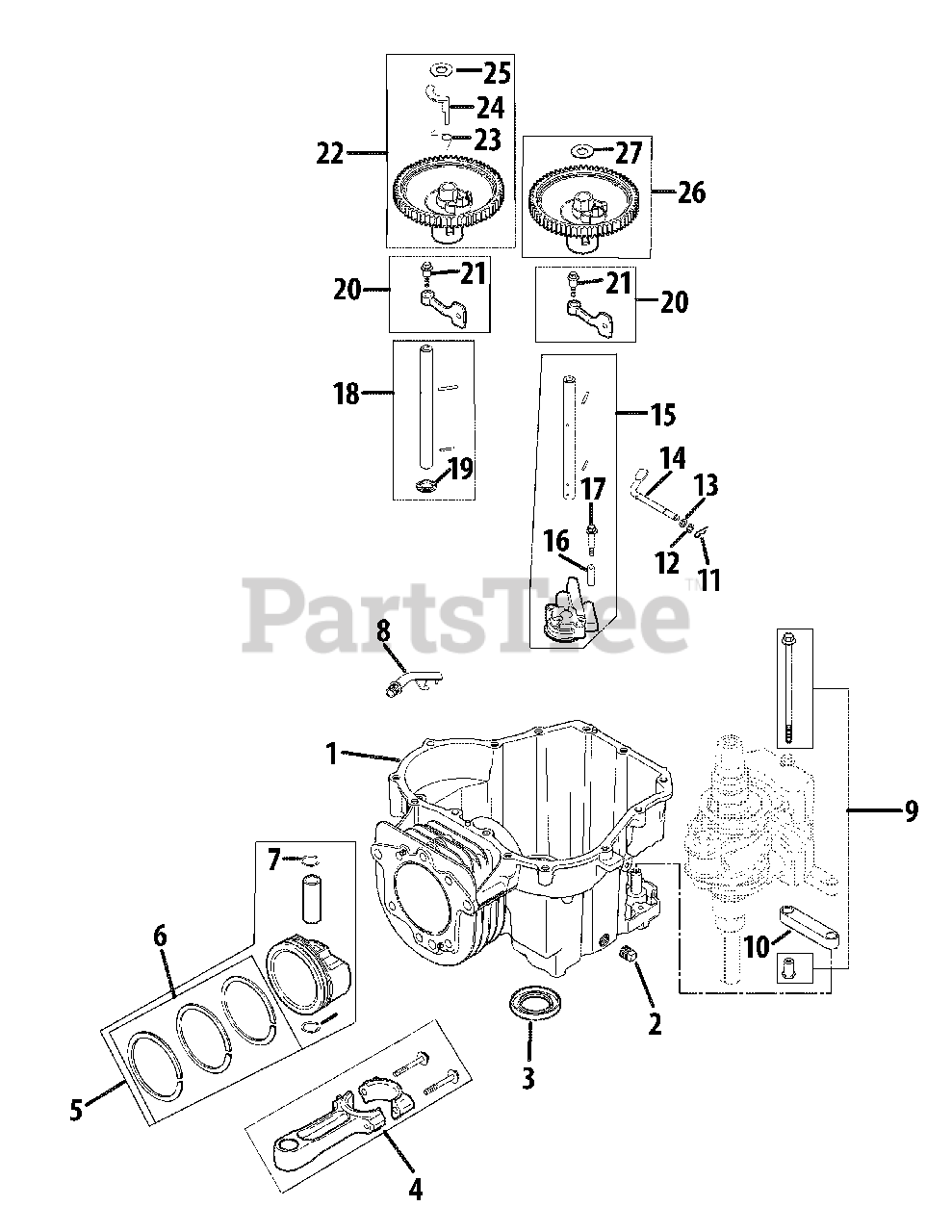

RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Engine Crankcase Parts Diagram

42" RZT Zero-Turn Mower, Kohler

Engine Crankcase Parts Diagram

  • Title

1

Cub Cadet N/A

Crankcase

Note: (USE KH-20-522-01)

$

$

Currently unavailable

1

Cub Cadet KH-20-522-01

Short Block

Note: not shown

$

$

Not available

2

Cub Cadet KH-25-139-57-S

Square Head Pipe Plug, 3/8 "

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-20-032-01-S

Oil Seal
(Superseded to KH-20-032-08-S)

$9.49

$

In Stock, Qty 11

0

4

Cub Cadet KH-20-067-04-S

Connecting Rod
(Superseded to KH-20-067-06-S)

$

$

Not available

5

Cub Cadet KH-20-874-01-S

Piston w/ Ring Set Kit

Note: (Inc. 6 & 7)

$

$

Not available

6

Cub Cadet KH-20-108-01-S

Ring Set (94mm)
(Superseded to KH-20-108-04-S)

$63.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-20-018-04-S

Piston Pin Retainer

$

$

Not available

8

Cub Cadet KH-20-123-02-S

Drainback Tube

$4.99

$

In Stock, Qty 10

0

9

Cub Cadet KH-20-380-16-S

Locating Pin Kit

$

$

Not available

10

Cub Cadet KH-20-186-02-S

Balance Weight Linkage
(Superseded to KH-20-186-06-S)

$17.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-12-154-05

Hitch Pin Clip
(Superseded to KH-12-154-05-S)

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet KH-M-631015-S

Flat Washer 6mm

$2.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-X-25-102-S

Flat Washer, 1/4"

$2.49

$

In Stock, Qty 5

0

14

Cub Cadet KH-20-144-02-S

Governor Cross Shaft

$14.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-20-393-02-S

Oil Pump Assembly Kit

Note: (Inc. 16 & 17)

$41.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-20-112-02-S

Oil Pump Screw Spacer
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-20-086-13-S

Oil pump Screw
(Superseded to KH-20-086-12-S)

$2.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-20-144-11-S

Cam Center Shaft Kit

$20.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-20-468-08-S

Thrust Washer

$2.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-20-090-01-S

Cam Lever Assembly Kit
(Superseded to KH-20-090-12-S)

$5.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-20-086-06-S

Shd Thd Frm Screw, M6 x 1 x 26

$3.99

$

In Stock, Qty 15

0

22

Cub Cadet KH-20-010-04-S

Camshaft Assembly Kit

Note: (Inc. 23-25)

$

$

Not available

23

Cub Cadet KH-20-089-06-S

ACR Spring

$2.99

$

In Stock, only 1 left!

0

24

Cub Cadet KH-20-044-16-S

ACR Weight
(Superseded to KH-20-044-32-S)

$13.99

$

In Stock, only 1 left!

0

25

Cub Cadet KH-20-468-03-S

ACR Thrust Washer

$2.49

$

In Stock, Qty 10

0

26

Cub Cadet KH-20-010-04-S

Camshaft Assembly Kit

Note: (Inc. 27)

$

$

Not available

27

Cub Cadet KH-20-468-03-S

ACR Thrust Washer

$2.49

$

In Stock, Qty 10

0
