RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Engine Controls Parts Diagram

42" RZT Zero-Turn Mower, Kohler

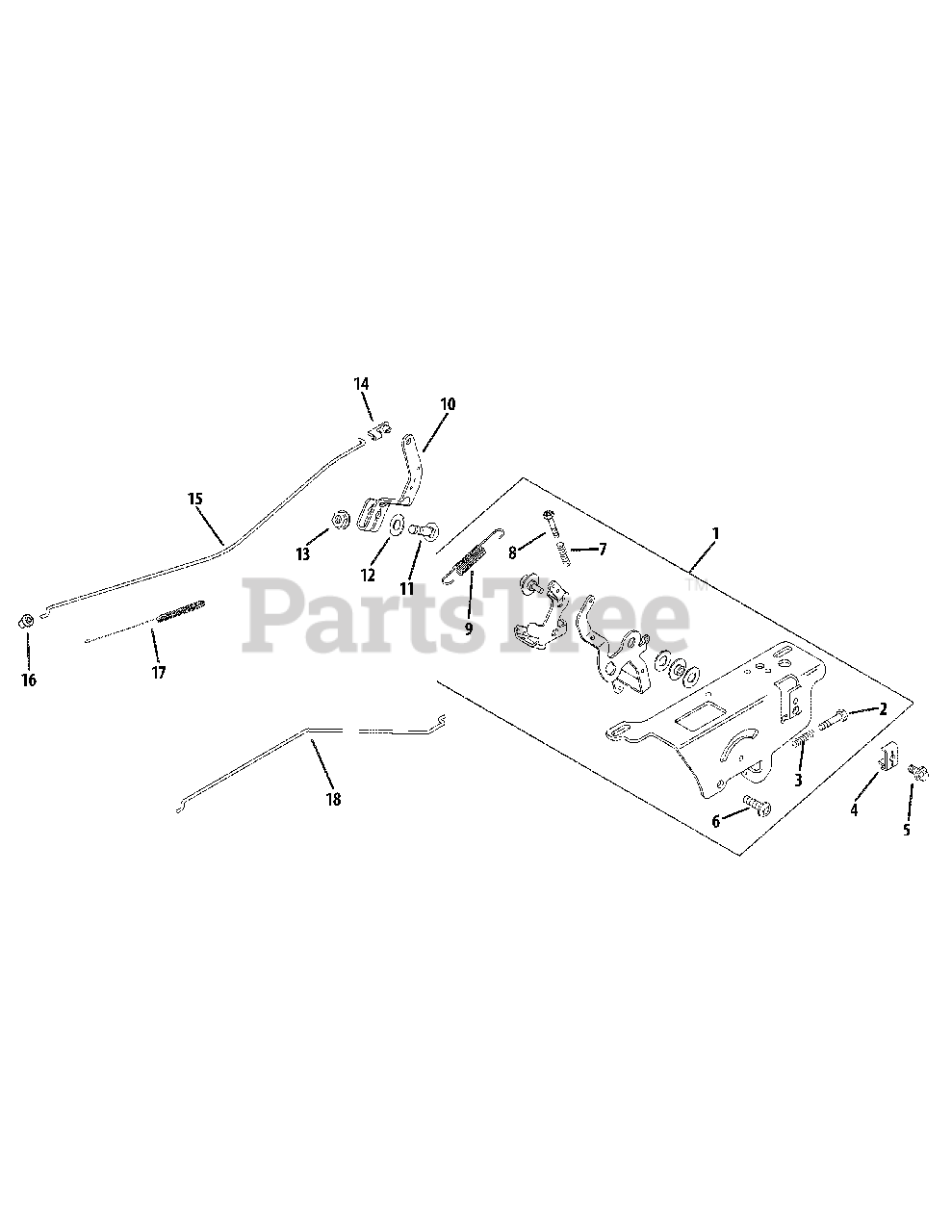

Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-20-536-05-S

Speed Cntrl. Ass. Kit
(Superseded to KH-20-536-06-S)

Note: (Inc. 2, 3 & 6-9)

$52.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-20-086-10-S

Phl Thd Frm Screw, M4 X 0.7 X 25

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-12-089-11

Speed Control Spring (Short)
(Superseded to KH-12-089-11-S)

$2.49

$

In Stock, only 4 left!

0

4

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet KH-M-545016-S

Flg Thd Frm Screw, M5 X 0.8 X 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-M-664020-S

Lbd Skt Screw, M6 x 1.0 x 20
(Superseded to KH-25-086-403-S)

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet KH-12-089-11

Speed Control Spring (Short)
(Superseded to KH-12-089-11-S)

$2.49

$

In Stock, only 4 left!

0

8

Cub Cadet KH-20-086-10-S

Phl Thd Frm Screw, M4 X 0.7 X 25

$2.49

$

In Stock, only 3 left!

0

9

Cub Cadet KH-20-089-11-S

Governor Spring

$2.49

$

In Stock, Qty 7

0

10

Cub Cadet KH-20-090-02-S

Governor Lever
(Superseded to KH-20-090-11-S)

$6.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-52-211-04

Rd Hd Sq Nck Bolt, 1/4-20 X 1"

$

$

Not available

12

Cub Cadet KH-X-22-11-S

Internal Tooth Lock Washer, 1/4"

$

$

Currently unavailable

13

Cub Cadet KH-12-100-07

Hex Flange Nut, 1/4-20"

$

$

Not available

14

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

15

Cub Cadet KH-20-079-07-S

Throttle Linkage

$3.99

$

In Stock, only 3 left!

0

16

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-20-089-10-S

Linkage Spring

$3.99

$

In Stock, Qty 8

0

18

Cub Cadet KH-20-079-05-S

Choke Linkage

$2.99

$

In Stock, Qty 5

0
