RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Engine Accessories 2008 & Before Parts Diagram

42" RZT Zero-Turn Mower, Kohler

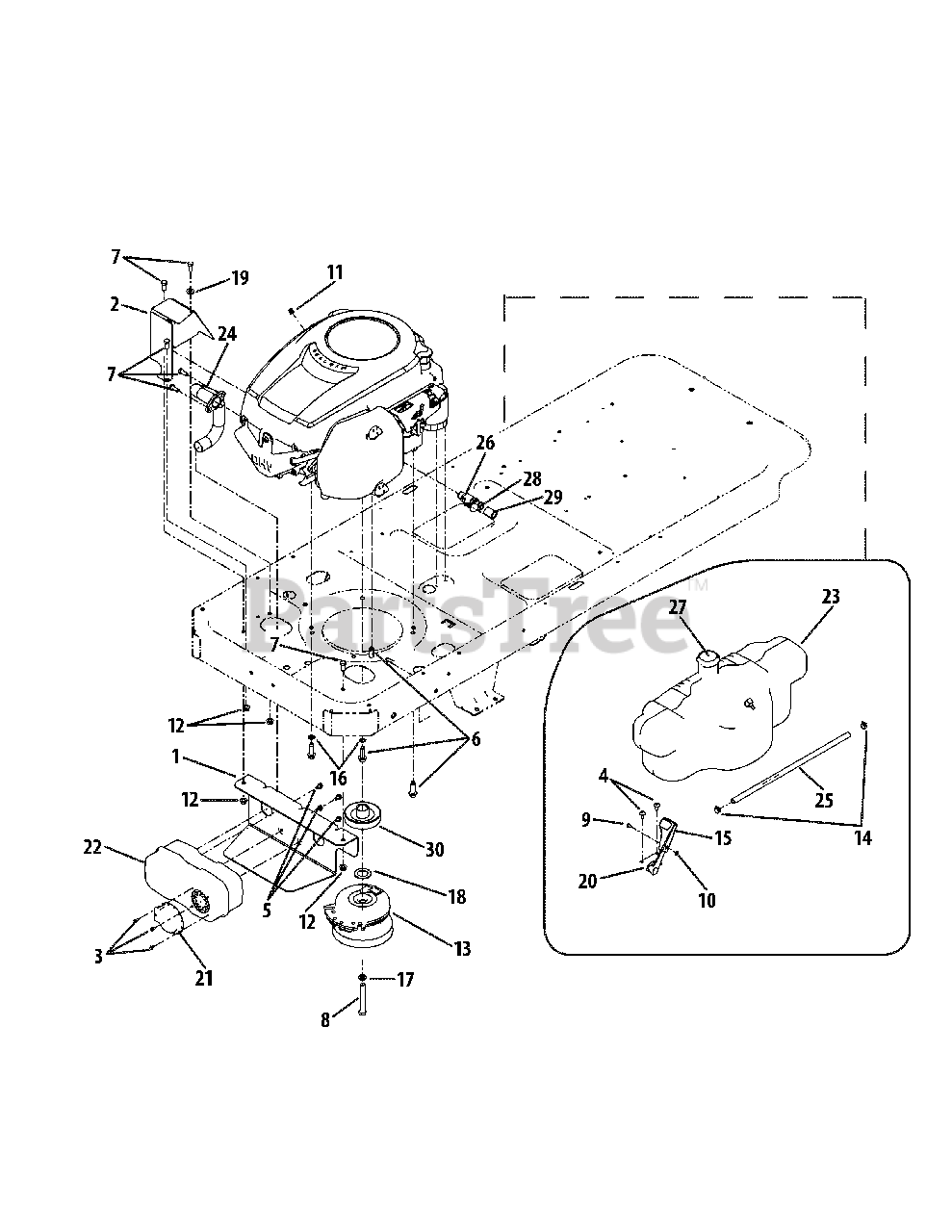

Engine Accessories 2008 & Before Parts Diagram

  • Title

1

Cub Cadet 703-05441A

Muffler Mounting Bracket

$52.99

$

In Stock, only 2 left!

0

2

Cub Cadet 703-05870

Muffler Tube Heat Shield

$96.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0227

Hex Washer Head Screw, #8-18 x .5

$4.49

$

In Stock, Qty 15

0

4

Cub Cadet 710-1017

Hex Washer Head Screw, 1/4-14 x

$8.49

$

In Stock, Qty 9

0

5

Cub Cadet 710-0599

Hex Washer Head Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1315

Hex Washer Head Screw, 3/8 -16 x 1.25

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3157A

Hex Cap Lock Screw,7/16-20 x 3.25

$10.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3217

Truss Head Machine Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

11

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 712-04063

Hex Insert Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 717-04376A

Electric PTO Clutch Assembly
(Superseded to 917-04376A)

$525.99

$

In Stock, only 1 left!

0

14

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

15

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0148

External Tooth Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

17

Cub Cadet 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

18

Cub Cadet 736-0277

Flat Washer, 1.031 x 1.62 x .095

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 736-3008

Flat Washer, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 746-04161

Throttle Cable, 39.0 Lg
(Superseded to 946-04161)

$49.99

$

In Stock, only 2 left!

0

21

Cub Cadet 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

22

Cub Cadet 751-0617A

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

23

Cub Cadet 751-10692

Fuel Tank
(Superseded to 951-05137A)

$

$

Not available

24

Cub Cadet 751-10251

Exhaust Pipe

$107.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 751-10349

Low Permeation Fuel Hose

$9.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 751-10517

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-05969

Fuel Cap
(Superseded to 951-12428)

Note: Replaces 751-10703, in this application only

$43.99

$

In Stock, Qty 15

0

28

Cub Cadet 751-3142

Oil Drain Valve Cap

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 751-3141

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

30

Cub Cadet 756-04376

Drive Pulley

Note: Replaces 756-0978B, in this application only

$44.99

$

In Stock, only 1 left!

0

Cub Cadet 603-04290B-0637

PTO Clutch Torque Bracket, Bolt-on

Note: (Not shown)(Use engine mounting hardware)(Replaces welded-on frame PTO bracket)

$71.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05845-0637

Anti-rotation Bracket

Note: (Not shown)(Use with Ogura PTO clutch & 603-04290B-0637 PTO bracket)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

Note: (use with 703-05845-0637)

$3.99

$

In Stock, Qty 20+

0
