RZT-42 (17AE2ACG004) - Yard-Man 42" Zero-Turn Mower (2010) Operator's Platform Parts Diagram

42" Zero-Turn Mower

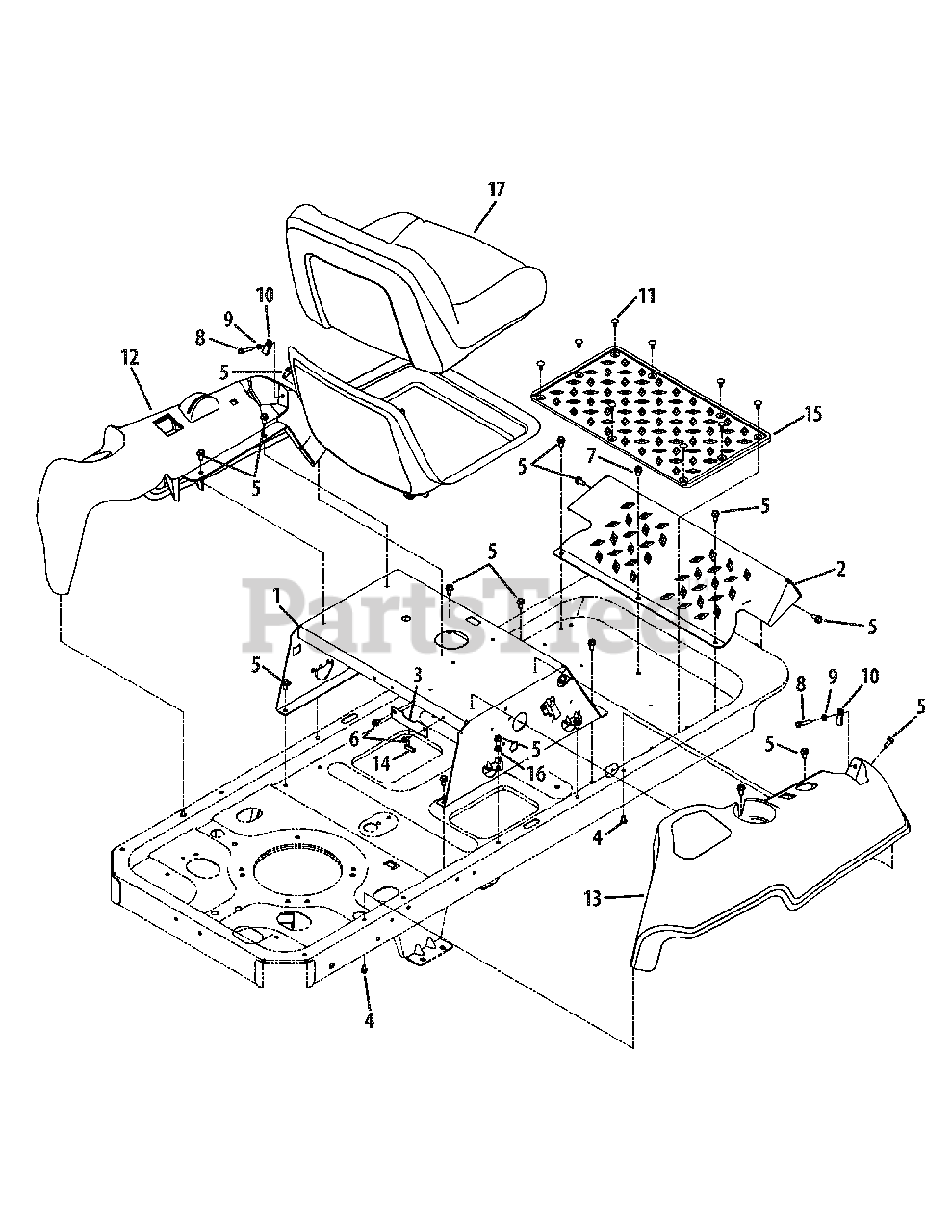

Operator's Platform Parts Diagram

  • Title

1

MTD 603-04663-0691

Seat Frame Assembly (NLA) - Black Jack

Note: replace with (1) 603-04946-0691 Seat Frame Assembly; (1) 703-08734-0691 Seat Pivot Bracket; (2) 732-04849 Compression Seat Springs.

$

$

Not available

1

MTD 603-04946-0691

Seat Frame Assembly - Black Jack

$

$

Not available

1

MTD 603-04663-0709

Seat Frame Assembly (NLA) - Green

Note: replace with (1) 603-04946-0709 Seat Frame Assembly; (1) 703-08734-0709 Seat Pivot Bracket; (2) 732-04849 Compression Seat Springs.

$

$

Not available

1

MTD 603-04946-0709

Seat Frame Assembly - Green

$

$

Not available

1

MTD 703-08734-0691

Seat Pivot Bracket - Black Jack

Note: (Not shown)

$

$

Not available

1

MTD 703-08734-0709

Seat Pivot Bracket - Green

Note: (Not shown)

$

$

Not available

1

MTD 732-04849

Compression Seat Spring

Note: (Not shown)

$13.99

$

In Stock, only 2 left!

0

2

MTD 603-04663-0691

Foot Rest Bracket - Black Jack

$

$

Not available

2

MTD 603-04663-0709

Foot Rest Bracket - Green

$

$

Not available

3

MTD 703-05894-0637

Batter Hold-Down Bracket

$29.99

$

In Stock, only 2 left!

0

4

MTD 710-04187

Hex Washer Screw, 1/4-15 x .50
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

5

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0604A

Hex Washer Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0778

Hex Washer Screw, 1/4-20 x 1.500

$4.49

$

In Stock, only 1 left!

0

9

MTD 912-0298

Jam Nut, 1/4-20

$6.49

$

Usually ships in 3-6 days

0

10

MTD 712-04092

U-Type Nut, 1/4-20

$5.99

$

In Stock, only 2 left!

0

11

MTD 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 16

0

12

MTD 731-04662E

LH Console (Black)

$

$

Not available

12

MTD 731-06310A

LH Console (Oyster Gray)

$

$

Not available

13

MTD 731-04663D

RH Console (Black)

$73.99

$

Usually ships in 3-6 days

0

13

MTD 731-06309A

RH Console (Oyster Gray)

$

$

Not available

14

MTD 731-0511

Trim Strip

$3.99

$

Usually ships in 3-6 days

0

15

MTD 735-04082B

Foot Pad
(Superseded to 735-04082C)

$50.99

$

Usually ships in 3-6 days

0

16

MTD 736-0148

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

17

MTD 757-04098

High-Back Seat
(Superseded to 757-05231)

$285.99

$

Usually ships in 3-6 days

0
