RZT-42 (17AC2ACG004) - MTD Gold Zero-Turn Mower (2008) (Ace Hardware) Engine Connections RZT-42 Parts Diagram

Gold Zero-Turn Mower

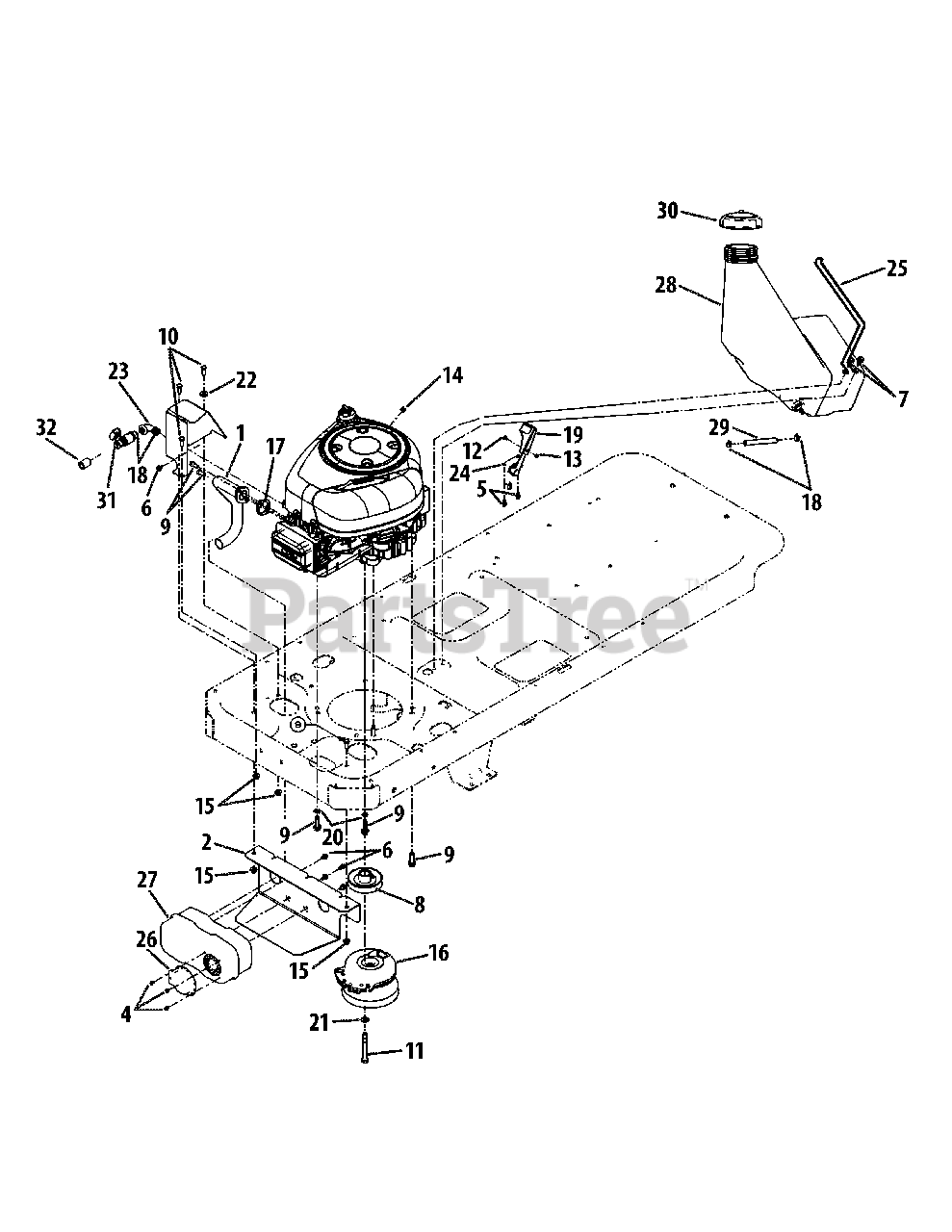

Engine Connections RZT-42 Parts Diagram

  • Title

1

MTD 603-04176A

Exhaust Tube

$103.99

$

Usually ships in 3-6 days

0

2

MTD 703-05441A

Muffler Mounting Bracket

$52.99

$

In Stock, only 3 left!

0

3

MTD 703-05870

Muffler Tube Heat Shield

$96.99

$

Usually ships in 3-6 days

0

4

MTD 710-0227

Hex Wsh. Hd. Screw, #8-18 x .5

$4.49

$

In Stock, Qty 15

0

5

MTD 710-04261

Hx. Wsh. Hd. Screw, #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

6

MTD 710-0599

Hx. Wsh. Hd. Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0726

Hx. Wsh. Hd. Screw, 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 756-04376

Drive Pulley

Note: replaces 756-0978B in this application. Refer to MTD-091

$44.99

$

In Stock, only 1 left!

0

9

MTD 710-1315

Hx. Wsh. Hd. Screw, 3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

10

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3157A

Hx Cap Lk. Screw, 7/16-20 x 3.25

$10.99

$

In Stock, only 1 left!

0

12

MTD 710-3217

Truss Hd. Mach. Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

13

MTD 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 9

0

14

MTD 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 10

0

15

MTD 712-04063

Hx. Insert Flange Lck Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

MTD 717-04376

Electric PTO Clutch Assembly
(Superseded to 917-04376A)

$525.99

$

In Stock, only 1 left!

0

17

MTD 721-0208

Exhaust Gasket (272293)
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

18

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

19

MTD 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

20

MTD 736-0148

Ext. Tooth Lock Washer, 3/8

$3.99

$

In Stock, only 3 left!

0

21

MTD 736-0171

Lock Washer, 7/16

$4.49

$

In Stock, only 4 left!

0

22

MTD 736-3008

Flat Washer, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

23

MTD 737-0125

Elbow Fitting

$

$

Not available

24

MTD 746-04161

Throttle Cable, 39.0 Lg
(Superseded to 946-04161)

$49.99

$

In Stock, only 2 left!

0

25

MTD 747-04228A

Tank Mounting Wire

$

$

Not available

26

MTD 751-0564B

Muffler Deflector

$13.99

$

In Stock, Qty 5

0

27

MTD 751-0617B

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 6

0

28

MTD 751-10057D

Fuel Tank, 3.0 Gal.

$309.99

$

Usually ships in 3-6 days

0

29

MTD 751-10349

Fuel Line Hose

$9.49

$

Usually ships in 3-6 days

0

30

MTD 751-3124D

Fuel Cap
(Superseded to 951-3124E)

$36.99

$

In Stock, only 3 left!

0

31

MTD 751-10517

Oil Drain Valve
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

32

MTD 751-3141

Oil Drain Extension Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0
