RZT-42 (17AA5B4G710) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2006) Seat Adjustment Parts Diagram

42" RZT Zero-Turn Mower, Kohler

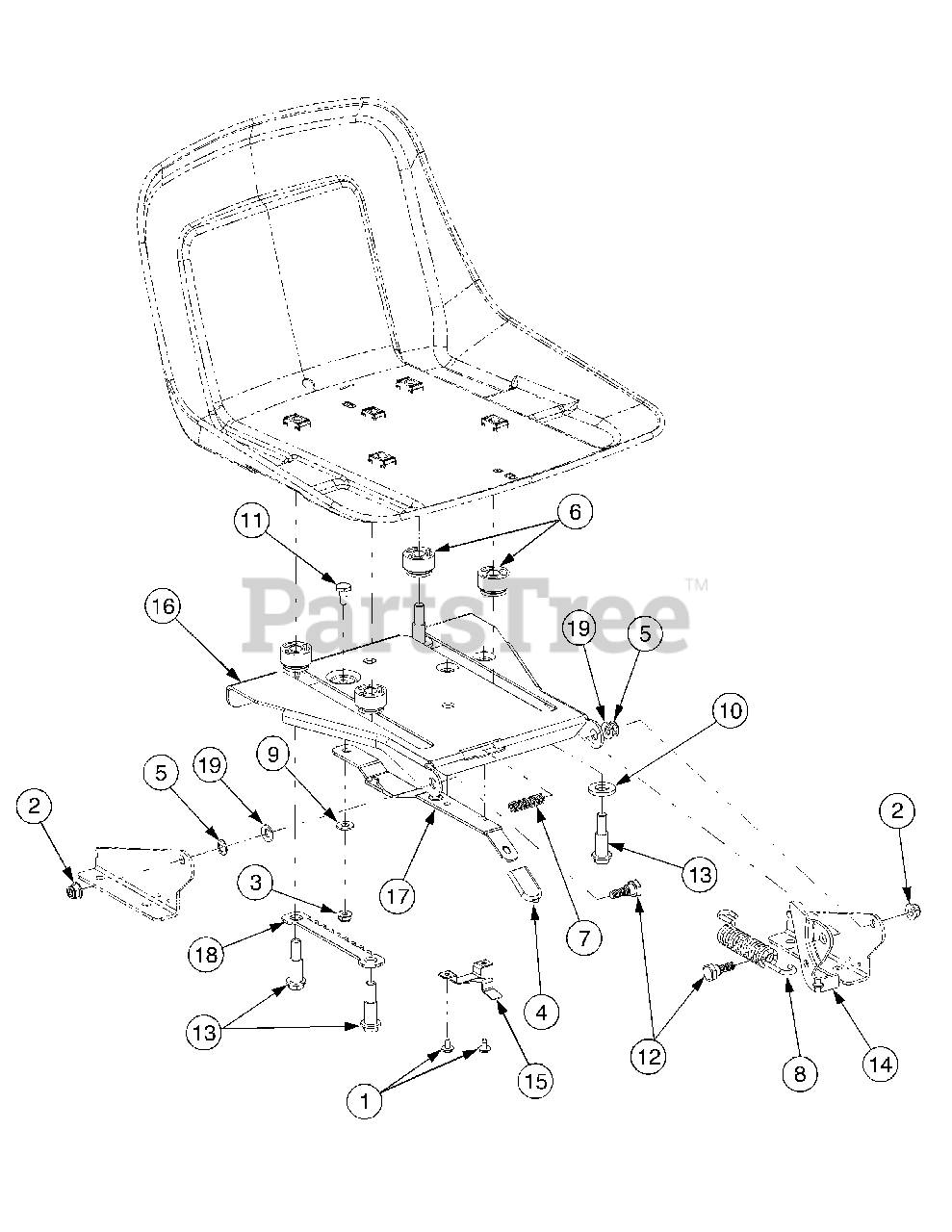

Seat Adjustment Parts Diagram

  • Title
1

Cub Cadet 710-1268

Screw, Hx. Wash. Hd. Tapp #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-04063

Nut, Hx Insert Flange Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 5

0

3

Cub Cadet 712-04064

Nut, Hx Insert Flnge Lck, 1/4-20 GrF

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 720-0309A

Grip, Seat Adjustment

$9.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 726-0201

Nut, Speed, .3125

$6.99

$

In Stock, only 2 left!

0

6

Cub Cadet 731-04074

Spacer, Seat Adjustment

$7.49

$

In Stock, Qty 20+

0

7

Cub Cadet 732-0499

Spring, Compression, .41 x 1.5

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet 732-1184

Spring, Extension, .84 Dia. x 4.6

$11.99

$

In Stock, only 1 left!

0

9

Cub Cadet 736-0204

Washer, Flat, .344 x .62 x .033

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-3019

Washer, Flat, .531 x 1.062 x .134 HT

$5.99

$

In Stock, Qty 11

0

11

Cub Cadet 738-0137A

Screw, Shoulder, .34 x .285:1/4-20

$10.99

$

In Stock, Qty 10

0

12

Cub Cadet 738-0296

Screw, Shoulder, .437 x .268:5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 738-0966A

Screw, Shoulder, .5 x .925:3/8-16 ..

$4.99

$

In Stock, Qty 19

0

14

Cub Cadet 783-0209D

Bracket, Seat Lift

$16.99

$

In Stock, only 1 left!

0

15

Cub Cadet 783-0611

Stop, Seat Adjustment

$10.99

$

In Stock, only 3 left!

0

16

Cub Cadet 783-0738C

Bracket, Seat Pivot
(Superseded to 783-0738D)

Variations

Cub Cadet 783-0738C-0716

Seat Pivot Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0738C-0637

Seat Pivot Bracket - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0738C-0638

Seat Pivot Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0738C-0650

USE 783-0738D-0650 BRACKET-PI - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0738C-0665

USE 783-0738D-0665 BRACKET-PI - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0738C-0691

Seat Pivot Bracket - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0738C-4015

USE 783-0738D-4015 BRACKET-PI - FIRE RED (4015)

$

$

Not available

Cub Cadet 783-0738C-4008

USE 783-0738D-4008 BRACKET-PI - WINE RED (4008)

$

$

Not available

$

$

17

Cub Cadet 783-0739A

Lever, Seat Adjustment
(Superseded to 783-0739A-0637)

Variations

Cub Cadet 783-0739A-0637

Seat Adjust Lever - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 783-0753

Index Bracket, Seat Adjustment

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 736-0242

Washer, Belleville, .34 x .872 x .06

$4.49

$

In Stock, Qty 20+

0
