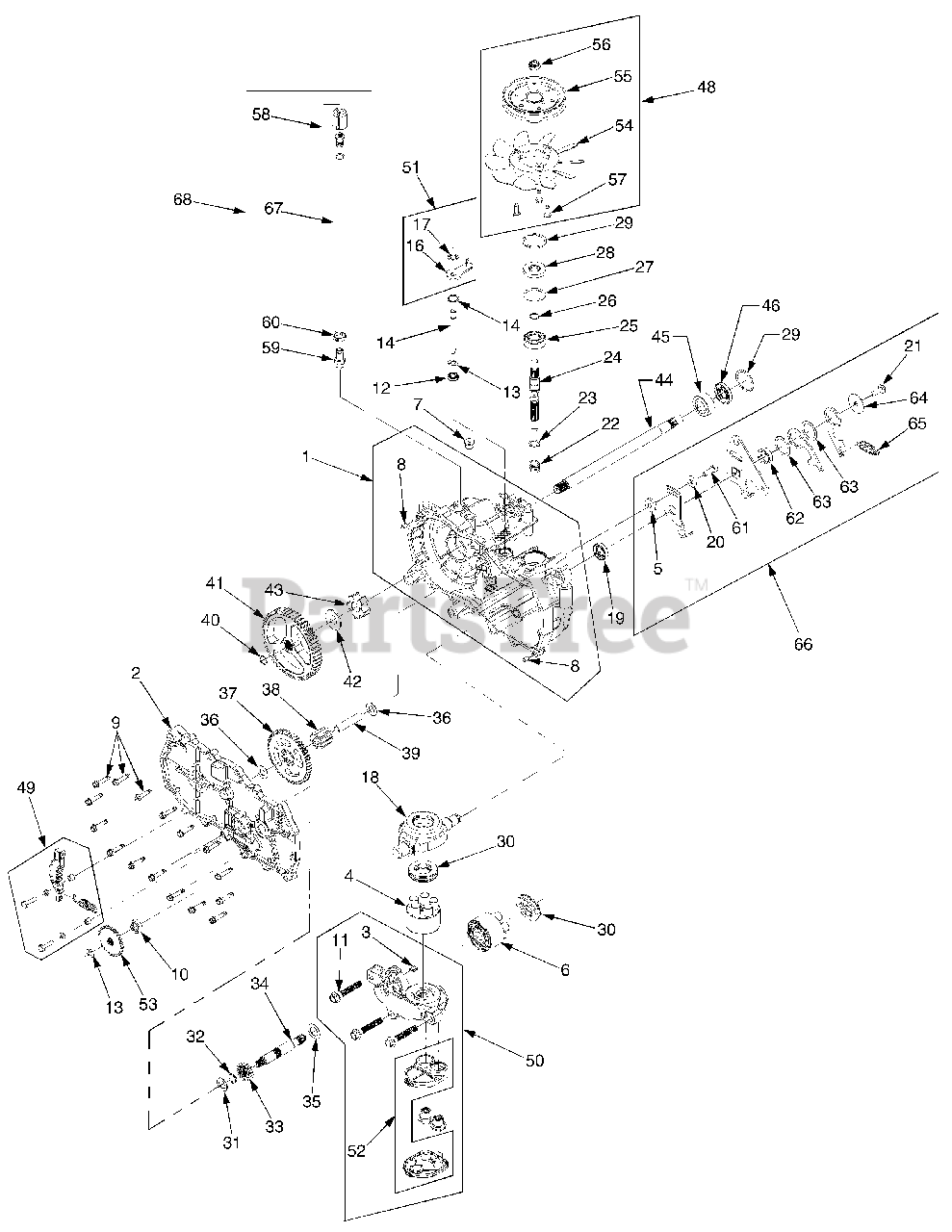

RZT-42 (17AA5B4G709) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2006) Transmission LH Parts Diagram

42" RZT Zero-Turn Mower, Kohler

Transmission LH Parts Diagram

  • Title

1

Cub Cadet HG-70862L

Housing Assembly, Main LH

$364.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-70863L

Side Assembly, LH

$159.99

$

Usually ships in 3-6 days

0

3

Cub Cadet HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-70723

Pump Block Assembly

$228.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-51949

Spacer, .32 x 1.005

$

$

Not available

6

Cub Cadet HG-70331

Motor Block Assembly

$188.99

$

Usually ships in 3-6 days

0

7

Cub Cadet HG-9005110-5600

Plug, SAE #6

$20.99

$

Usually ships in 3-6 days

0

8

Cub Cadet HG-9004800-2506

Pin, Stainless

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet HG-51190

Screw, Hex Self Tapping, 1/4-20 x 1.25
(Superseded to HG-53246)

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet HG-50442

Seal, Lip, .5 x .88 x .25
(Superseded to HG-50442P)

$

$

Not available

11

Cub Cadet HG-50016

Bolt, Hex Flange, 3/8-24 x 2.5

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet HG-51626

Seal, Lip, .375 x .75 x .25
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

13

Cub Cadet HG-51628

Ring, Retaining, .375 Ext.

$4.49

$

In Stock, Qty 15

0

14

Cub Cadet HG-51625

Rod, Bypass

$16.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-51627

Ring, Retaining, .75 Int.

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet HG-51910

Arm, Bypass

$14.99

$

Usually ships in 3-6 days

0

17

Cub Cadet HG-51630

Ring, Retaining, .375 Push

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet HG-51048

Swashplate, Trunnion

$88.99

$

Usually ships in 3-6 days

0

19

Cub Cadet HG-51140

Seal, Lip, 18 x 32 x 7

$9.99

$

Usually ships in 3-6 days

0

20

Cub Cadet HG-44130

Washer, Flat, 11/32 x 7/8 x 1/16
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

21

Cub Cadet HG-51812

Screw, 5/16-24 x 1.0

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-2003014

Spring, Compression

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-2003017

Washer, .591 x .787 x .04

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet HG-51062

Shaft, Input
(Superseded to HG-51062P)

$134.99

$

In Stock, only 1 left!

0

25

Cub Cadet HG-50315

Bearing, Ball, 17mm x 40 x 12

$18.99

$

Usually ships in 3-6 days

0

26

Cub Cadet HG-2000022

Ring, Wire Retaining, .561

$4.49

$

Usually ships in 3-6 days

0

27

Cub Cadet HG-50951

Spacer

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet HG-51161

Seal, Lip, 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-50329

Ring, Retaining

$11.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-50551

Bearing, Thrust, 30 x 52 x 13
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-44371

Washer, Flat, 5/8 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

32

Cub Cadet HG-44145

Ring, Retaining

$4.49

$

In Stock, only 2 left!

0

33

Cub Cadet HG-51130

Gear, Pinion, 13T

$9.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51845

Shaft, Motor

$76.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-51069

Washer, .71 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet HG-50132

Washer, HT, .5 x 1.0 x .032

$4.49

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-51129

Gear, 10T/48T

$53.99

$

Usually ships in 3-6 days

0

38

Cub Cadet HG-51043

Gear, Jackshaft, 10T

$28.99

$

Usually ships in 3-6 days

0

39

Cub Cadet HG-51083

Pin, Jackshaft

$33.99

$

Usually ships in 3-6 days

0

40

Cub Cadet HG-44871

Ring, Spiral Retaining

$4.49

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51633

Gear, Bull, 52T
(Superseded to HG-71714)

$422.99

$

Usually ships in 3-6 days

0

42

Cub Cadet HG-44875

Washer, 3/4 x 1.5 x .13

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet HG-51088

Bearing, Sleeve

$10.99

$

In Stock, only 2 left!

0

44

Cub Cadet HG-51954

Axle, spline
(Superseded to HG-71714)

$422.99

$

Usually ships in 3-6 days

0

45

Cub Cadet HG-51089

Bushing, .752 x 1.571 x .625

$12.99

$

In Stock, only 2 left!

0

46

Cub Cadet HG-51066

Seal, Lip, .75 x 1.577 x .25

$9.49

$

Usually ships in 3-6 days

0

47

HG-70868l

Kit, Expansion Plate, LH

$

$

Not available

48

Cub Cadet HG-71333

Kit, Fan-Pulley
(Superseded to HG-72134)

$63.99

$

In Stock, Qty 6

0

49

Cub Cadet HG-71356

Kit, Brake Arm

$22.99

$

Usually ships in 3-6 days

0

50

Cub Cadet HG-71142

Kit, Center Section-Filter LH

$

$

Not available

51

Cub Cadet HG-71006

Kit, Bypass Arm

$19.99

$

Usually ships in 3-6 days

0

52

Cub Cadet HG-70911

Kit, Filter
(Superseded to HG-71497)

$19.99

$

Usually ships in 3-6 days

0

53

Cub Cadet HG-51635

Disc, Brake Cog

$17.99

$

Usually ships in 3-6 days

0

54

Cub Cadet HG-52315

Fan, 7" 10 Blade

$11.99

$

Usually ships in 3-6 days

0

55

Cub Cadet N/A

Pulley, 4.5

Note: (Furnish Kit)

$

$

Currently unavailable

56

Cub Cadet HG-51244

Nut, Hex Insert Lock, 1/2-20
(Superseded to 912-0346)

$4.99

$

In Stock, Qty 6

0

57

Cub Cadet HG-50752

Screw, Hex Wash. Hd. Tapp 1/4-20

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet HG-70921

Cap, Vent Assembly

$

$

Not available

59

Cub Cadet HG-50591

Fitting, Sraight, 9/6-18

$33.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-50590

Clamp, Pinch

$

$

Not available

61

Cub Cadet HG-51616

Screw, Hx Patch, 5/16-24 x 1.0
(Superseded to HG-71341)

$9.49

$

Usually ships in 3-6 days

0

62

Cub Cadet HG-51947

Bushing, Pilot, 1.125

$

$

Not available

63

Cub Cadet HG-51948

Washer, Plastic

$

$

Not available

64

Cub Cadet HG-51950

Washer, 1.5 x .34 x .062
(Superseded to HG-54244)

$6.49

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-51399

Spring, Extension
(Superseded to HG-52401)

Note: (RH & LH transmissions must have the same color return spring)

$4.99

$

In Stock, only 2 left!

0

66

Cub Cadet N/A

Kit, Return Assembly

Note: (furnish components, refer to Transmission LH DD axle)

$

$

Currently unavailable

67

Cub Cadet N/A

Hose, .5 x 15.0

Note: (Furnish Kit)

$

$

Currently unavailable

68

Cub Cadet HG-71308

Kit, Breather Assembly

$

$

Not available

Cub Cadet HG-70853

Kit, Seal

Note: Not shown

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet HG-50928

Sealant Tube, 10.3 oz

Note: Not shown

$103.99

$

In Stock, Qty 8

0
