RZT-42 (17AA5AAG700) - Yard-Man 42" Zero-Turn Mower (2008) Mower Deck Parts Diagram

42" Zero-Turn Mower

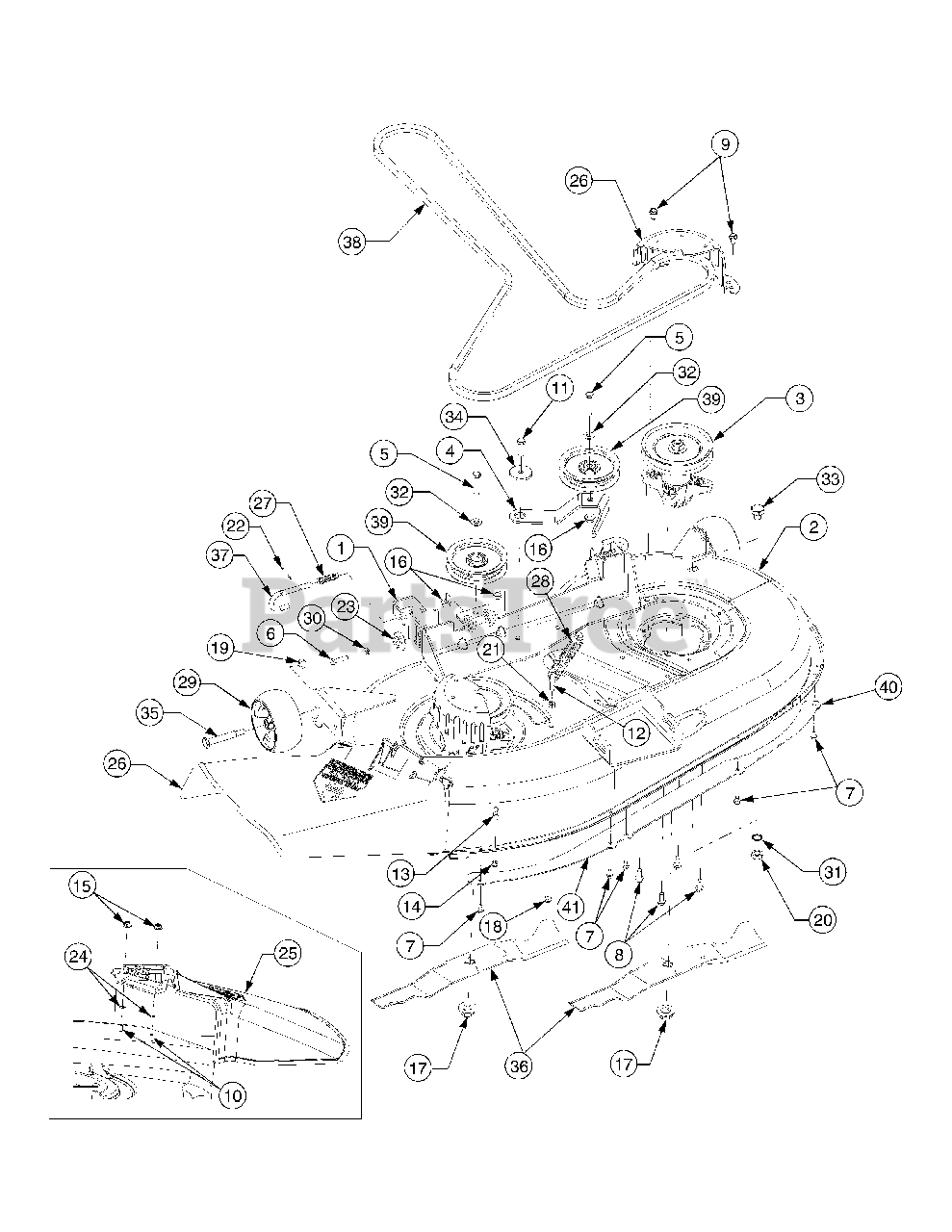

Mower Deck Parts Diagram

  • Title

1

MTD 603-04156

Bracket, Deck Lift

Variations

MTD 603-04156-0606

Deck Lift Bracket, Black - MAJESTIC ORANGE (0606)

$48.99

$

In Stock, only 1 left!

0

MTD 603-04156-0638

BRACKET-DECK LIFT - MTD/TROY-BILT RED (0638)

$48.99

$

In Stock, only 1 left!

0

MTD 603-04156-0650

BRACKET-DECK LIFT - RED METALLIC (0650)

$48.99

$

In Stock, only 1 left!

0

MTD 603-04156-0665

BRACKET-DECK LIFT - YARDMAN GREEN (0665)

$48.99

$

In Stock, only 1 left!

0

MTD 603-04156-0691

BRACKET-DECK LIFT - BLACK JACK (0691)

$48.99

$

In Stock, only 1 left!

0

MTD 603-04156-4021

BRACKET-DECK LIFT - CUB YELLOW 2 (4021)

$48.99

$

In Stock, only 1 left!

0

MTD 603-04156-4033

Deck Lift Bracket, Black - FLINT MICA (4033)

$48.99

$

In Stock, only 1 left!

0

MTD 603-04156-0716

BRACKET-DECK LIFT - CUB YELLOW-99 (0716)

$48.99

$

In Stock, only 1 left!

0

$39.99

$

Usually ships in 3-6 days

0

2

MTD 603-04335

Housing, Deck
(Superseded to 903-04335C)

Variations

MTD 603-04335-0638

DECK ASM-42" RZT - MTD/TROY-BILT RED (0638)

$821.99

$

Usually ships in 3-6 days

0

MTD 603-04335-0650

DECK ASM-42" RZT - RED METALLIC (0650)

$821.99

$

Usually ships in 3-6 days

0

MTD 603-04335-0716

DECK ASM-42" RZT - CUB YELLOW-99 (0716)

$821.99

$

Usually ships in 3-6 days

0

$664.99

$

Usually ships in 3-6 days

0

2

MTD 777S32599

Graphic, Danger

$9.99

$

Usually ships in 3-6 days

0

2

MTD 777S30503

Graphic, Danger

$11.99

$

In Stock, only 4 left!

0

2

MTD 777I22281

Graphic, Instruction
(Superseded to 977I22281)

$17.99

$

Usually ships in 3-6 days

0

3

MTD 618-0427

Spindle Assembly
(Superseded to 918-04197B)

$157.99

$

In Stock, only 2 left!

0

3

MTD 756-1188

Pulley

$36.99

$

In Stock, Qty 8

0

4

MTD 703-05824

Arm, Idler
(Superseded to 703-05824C-0691)

Variations

MTD 703-05824-0606

Idler Arm Bracket - MAJESTIC ORANGE (0606)

$41.99

$

In Stock, Qty 18

0

MTD 703-05824-0716

Idler Arm Bracket - CUB YELLOW-99 (0716)

$41.99

$

In Stock, Qty 18

0

MTD 703-05824-0638

Idler Arm Bracket - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, Qty 18

0

MTD 703-05824-0650

Idler Arm Bracket - RED METALLIC (0650)

$41.99

$

In Stock, Qty 18

0

MTD 703-05824-0665

Idler Arm Bracket - YARDMAN GREEN (0665)

$41.99

$

In Stock, Qty 18

0

$41.99

$

In Stock, Qty 18

0

5

MTD 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

MTD 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0650

Screw, Hex Wash. Hd. Tapp 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0751

Screw, Hex Cap, 1/4-20 x .62 GR5 ..

$3.99

$

In Stock, Qty 20+

0

11

MTD 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

12

MTD 710-3180

Screw, Hex Cap, 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 11

0

13

MTD 711-04069

Pin, Grass Catcher, 1/4-20
(Superseded to 911-04069)

$8.49

$

In Stock, Qty 20+

0

14

MTD 712-0324

Nut, Hex Insert Lock, 1/4-20 GR8

$3.99

$

In Stock, Qty 16

0

15

MTD 712-04064

Nut, Hx Insert Flange Lck, 1/4-20 GR5

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04065

Nut, Hx Insert Flange Lck, 3/8-16 GrF

$3.99

$

In Stock, Qty 20+

0

17

MTD 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

18

MTD 712-0429

Nut, Hex Insert Lock, 5/16-18 GR5 ..

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0431

Nut, Hex Flange Lock, 3/8-16 GrF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

MTD 712-0641

Nut, Hex, M16-1.5

$6.49

$

In Stock, Qty 7

0

21

MTD 712-3010

Nut, Hex, 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

22

MTD 714-0470

Pin, Cotter, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

23

MTD 717-1553B

Gear, Deck Adjustment
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

24

MTD 726-0233

Nut, Push, .25 x .5

$4.49

$

In Stock, Qty 20+

0

25

MTD 731-1032B

Chute Assembly, Discharge
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

25

MTD 777S30284

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

26

MTD 731-2231B

Cover, Belt

$46.99

$

In Stock, only 3 left!

0

27

MTD 732-0306

Spring, Compression
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

28

MTD 732-0459

Spring, Extension, .94 Dia. x 6.74
(Superseded to 732-0459C)

$18.99

$

In Stock, only 3 left!

0

29

MTD 734-04155

Wheel, Deck Ball, 5.0

$20.99

$

In Stock, Qty 20+

0

30

MTD 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0760

Washer, Lock,

$4.49

$

In Stock, Qty 7

0

32

MTD 736-3072

Washer, Flat, .38 x .93 x .11 HT

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-04146

Plug, Screw, M16 x 1.5

$9.49

$

Usually ships in 3-6 days

0

34

MTD 738-04162A

Spacer, Shoulder, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

35

MTD 738-3056

Screw, Shoulder, .5 x 2.5:3/8-16
(Superseded to 938-3056)

$9.49

$

In Stock, Qty 20+

0

36

MTD 942-0616A

Blade, 3 in 1, 21.23

$31.99

$

In Stock, Qty 20+

0

37

MTD 747-1116

Rod, Deck Hanger

$12.99

$

In Stock, Qty 6

0

38

MTD 754-04045

Belt, V, Type A Sec x 109
(Superseded to 954-04045)

$56.99

$

In Stock, Qty 10

0

39

MTD 756-04129

Pulley, Idler, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

40

MTD 783-1146A

Skirt, Deck
(Superseded to 753-0884)

Variations

MTD 783-1146A-0637

Deck Skirt Kit, 42" - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0
