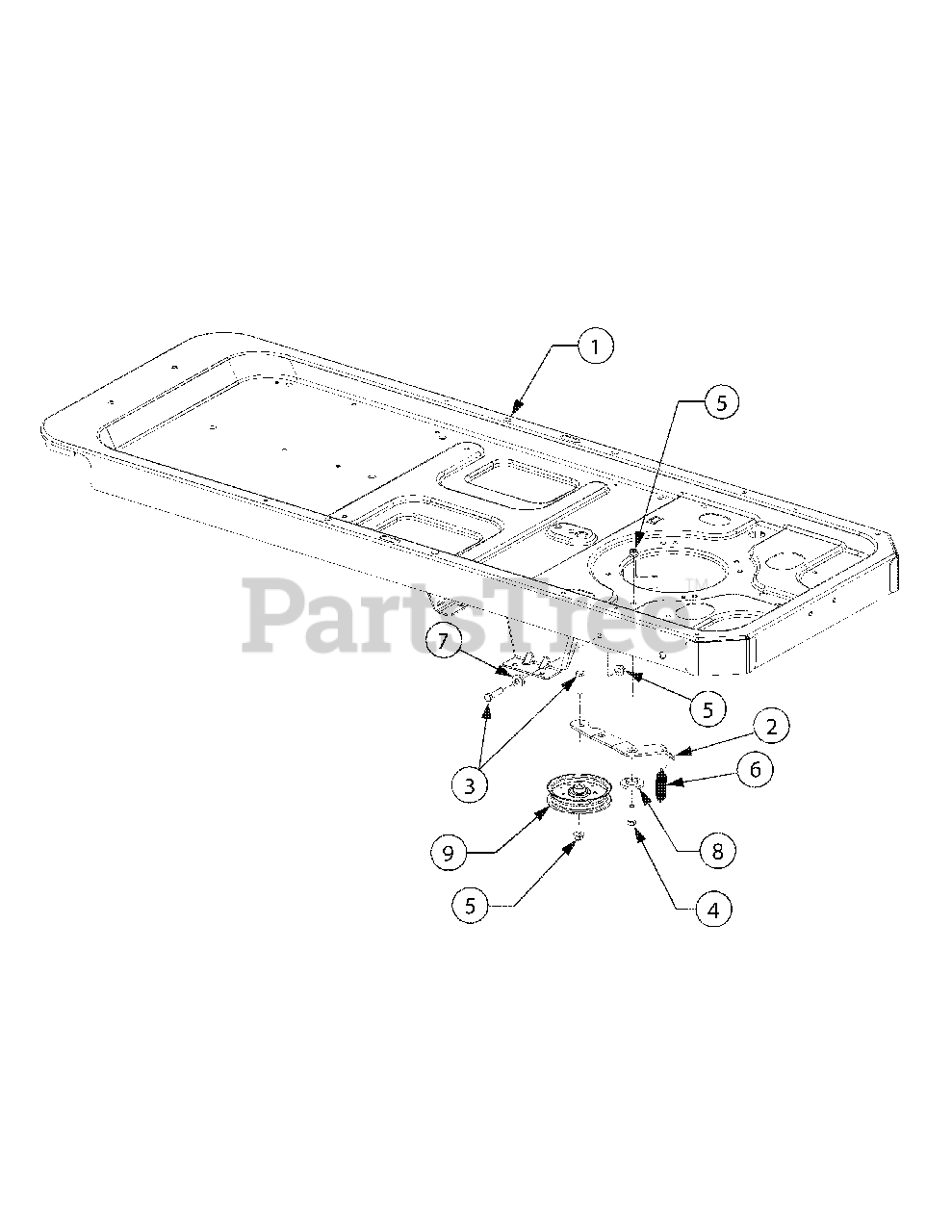

RZT-42 (17AA5AAG700) - Yard-Man 42" Zero-Turn Mower (2008) Frame Parts Diagram

42" Zero-Turn Mower

Frame Parts Diagram

  • Title

1

MTD 603-04303B

Frame Assembly
(Superseded to 603-04303E)

Variations

MTD 603-04303B-0606

FRAME ASM-RZT - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04303B-0638

FRAME ASM-RZT - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04303B-0650

FRAME-ASSY RZT - RED METALLIC (0650)

$

$

Not available

MTD 603-04303B-0674

FRAME-RZT - YARDMAN YELLOW (0674)

$

$

Not available

MTD 603-04303B-0716

FRAME-ASSY RZT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

1

MTD 777I22489

Graphic, Release Lever

$

$

Not available

2

MTD 703-05829

Idler Arm, Drive

Variations

MTD 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$42.99

$

In Stock, only 1 left!

0

$42.99

$

In Stock, only 1 left!

0

3

MTD 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.49

$

In Stock, Qty 6

0

4

MTD 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 11

0

5

MTD 712-04065

Nut, Hx Insert Flnge Lck, 3/-16 GrF

$3.99

$

In Stock, Qty 20+

0

6

MTD 732-0626

Spring, Extension, .75 x 5.06

$12.99

$

In Stock, only 1 left!

0

7

MTD 738-04058

Spacer, Shoulder, .39 x 1.0 x .7

$4.49

$

Usually ships in 3-6 days

0

8

MTD 738-04162A

Screw, Shoulder, .884 x .19
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

9

MTD 756-04129

Pulley, Idler, 4.25 Dia.
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0
