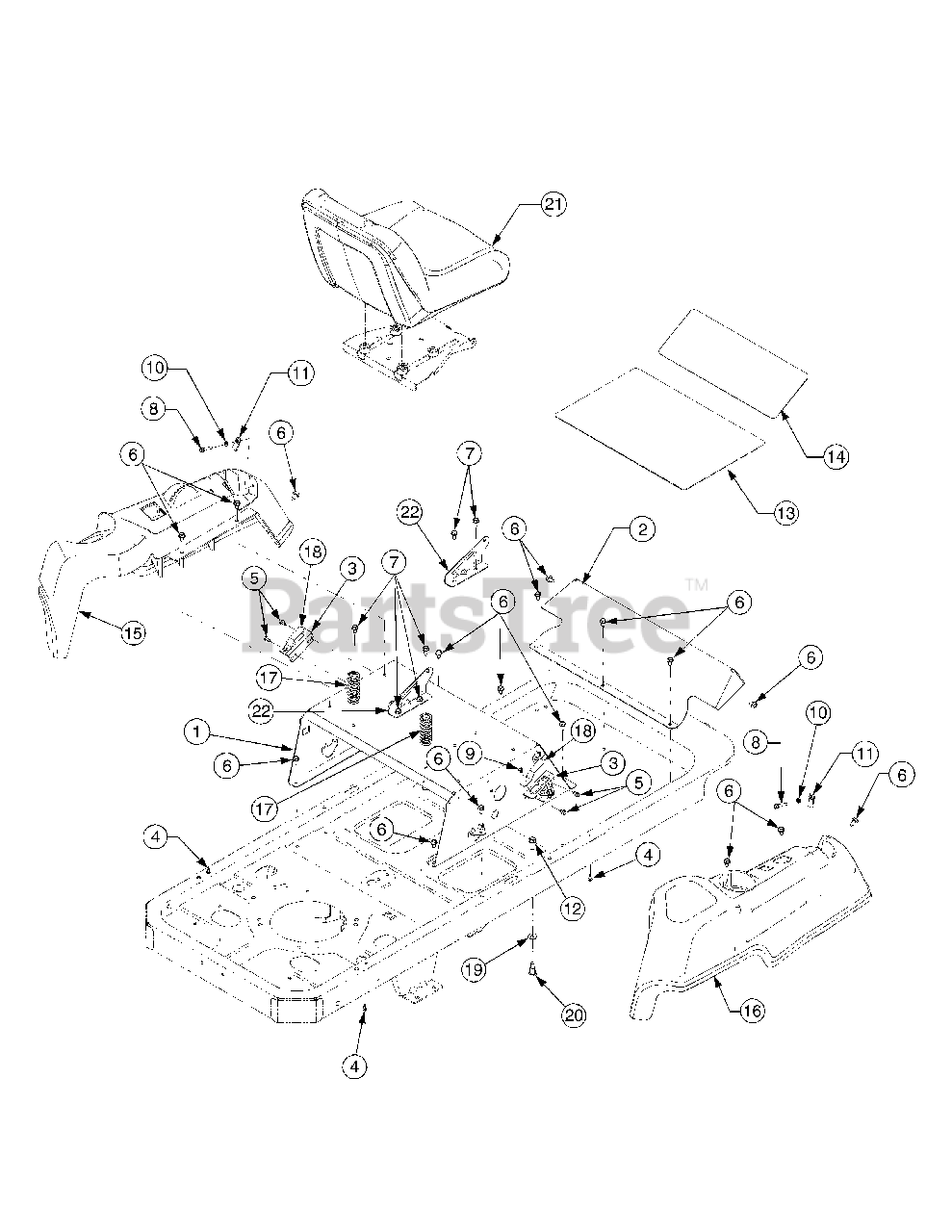

RZT-42 (17AA5AAG700) - Yard-Man 42" Zero-Turn Mower (2008) Console Parts Diagram

42" Zero-Turn Mower

Console Parts Diagram

  • Title

1

MTD 603-04326

Frame, Seat Box
(Superseded to 603-04326B)

Variations

MTD 603-04326-0606

FRAME-SEAT BOX - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 603-04326-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 603-04326-0650

FRAME-SEAT BOX - RED METALLIC (0650)

$

$

Not available

MTD 603-04326-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 603-04326-0716

No Longer Available FRAME-SEA - CUB YELLOW-99 (0716)

$

$

Not available

$

$

1

MTD 777I22600

Graphic, Park Brake

Note: Not shown

$11.99

$

Usually ships in 3-6 days

0

1

MTD 777S32354

Graphic, Warning
(Superseded to 977S32354)

Note: Not shown

$

$

Not available

1

MTD 777I22307

Graphic, Deck Height

Note: Not shown

$

$

Currently unavailable

2

MTD 703-05373A

Bracket, Foot Rest
(Superseded to 703-05373B)

Variations

MTD 703-05373A-0606

BRACKET:FOOT REST - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-05373A-0638

BRACKET:FOOT REST - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-05373A-0650

BRACKET:FOOT REST - RED METALLIC (0650)

$

$

Not available

MTD 703-05373A-0674

BRACKET:FOOT REST - YARDMAN YELLOW (0674)

$

$

Not available

MTD 703-05373A-0716

BRACKET:FOOT REST - CUB YELLOW-99 (0716)

$

$

Not available

$

$

3

MTD 703-05467

Bracket, Switch Mounting

Variations

MTD 703-05467-0606

Switch Mounting Bracket - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 703-05467-0637

Switch Mounting Bracket - POWDER BLACK (0637)

$

$

Not available

MTD 703-05467-0638

Switch Mounting Bracket - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 703-05467-0650

Switch Mounting Bracket - RED METALLIC (0650)

$

$

Not available

MTD 703-05467-0674

Switch Mounting Bracket - YARDMAN YELLOW (0674)

$

$

Not available

MTD 703-05467-0716

Switch Mounting Bracket - CUB YELLOW-99 (0716)

$

$

Not available

MTD 703-05467-4015

Switch Mounting Bracket - FIRE RED (4015)

$

$

Not available

MTD 703-05467-4021

Switch Mounting Bracket - CUB YELLOW 2 (4021)

$

$

Not available

$22.99

$

Usually ships in 3-6 days

0

4

MTD 710-04261

Screw, Hex Wash. Hd Tapp #12-16 x .50

$6.49

$

In Stock, only 3 left!

0

5

MTD 710-0599

Screw, Hex Wash. Hd. Tapp. 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0604A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0778

Screw, Hex Wash. Hd. Tapp. 1/4-20 x 1.5

$4.49

$

In Stock, only 2 left!

0

9

MTD 710-1268

Screw, Hex Wash. Hd Tapp #10-16 x .375

$4.49

$

In Stock, only 2 left!

0

10

MTD 712-0298

Nut, Hex Jam, 1/4-20 GR2
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

11

MTD 712-04092

Nut, U Type Speed, 1/4-20

$5.99

$

In Stock, only 2 left!

0

12

MTD 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

13

MTD 723-04020

Pad, Abrasive Foot Plate

$

$

Not available

14

MTD 723-04021

Pad, Abrasive Toe Plate

$36.99

$

Usually ships in 3-6 days

0

15

MTD 731-04662B

Console, LH
(Superseded to 731-04662E)

$

$

Not available

15

MTD 777I22608

Graphic, Instruction

$

$

Not available

15

MTD 777I22305

Graphic, Throttle Control 42"
(Superseded to 977I22305)

$

$

Not available

15

MTD 777I22309

Graphic, Throttle Control 50"
(Superseded to 977I22309)

$19.99

$

Usually ships in 3-6 days

0

16

MTD 731-04663A

Console, RH
(Superseded to 731-04663D)

$73.99

$

Usually ships in 3-6 days

0

16

MTD 777I22609

Graphic, Instruction

$11.99

$

Usually ships in 3-6 days

0

17

MTD 732-04035

Spring, Compression, 1.28 x 3.125

$10.99

$

In Stock, only 4 left!

0

18

MTD 732-04200

Spring, Switch Actuator

$10.99

$

In Stock, Qty 6

0

19

MTD 736-0300

Washer, Flat, .406 x .875 x .059

$4.49

$

In Stock, Qty 20+

0

20

MTD 738-0430

Screw, Shoulder, .50 x .685:3/8-16 ...

$11.99

$

In Stock, only 2 left!

0

21

MTD 757-04010

Seat
(Superseded to 957-04010)

$

$

Not available

22

MTD 783-1489B

Bracket, Seat Pivot
(Superseded to 783-1489C)

Variations

MTD 783-1489B-0638

BRACKET-MOUNT SEAT - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489B-0637

Seat Mounting Bracket - POWDER BLACK (0637)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489B-4008

Seat Mounting Bracket - WINE RED (4008)

$21.99

$

Usually ships in 3-6 days

0

MTD 783-1489B-0716

BRACKET-MOUNT SEAT - CUB YELLOW-99 (0716)

$23.99

$

In Stock, only 1 left!

0

MTD 783-1489B-4015

BRACKET-MOUNT SEAT - FIRE RED (4015)

$21.99

$

Usually ships in 3-6 days

0

$19.99

$

Usually ships in 3-6 days

0
