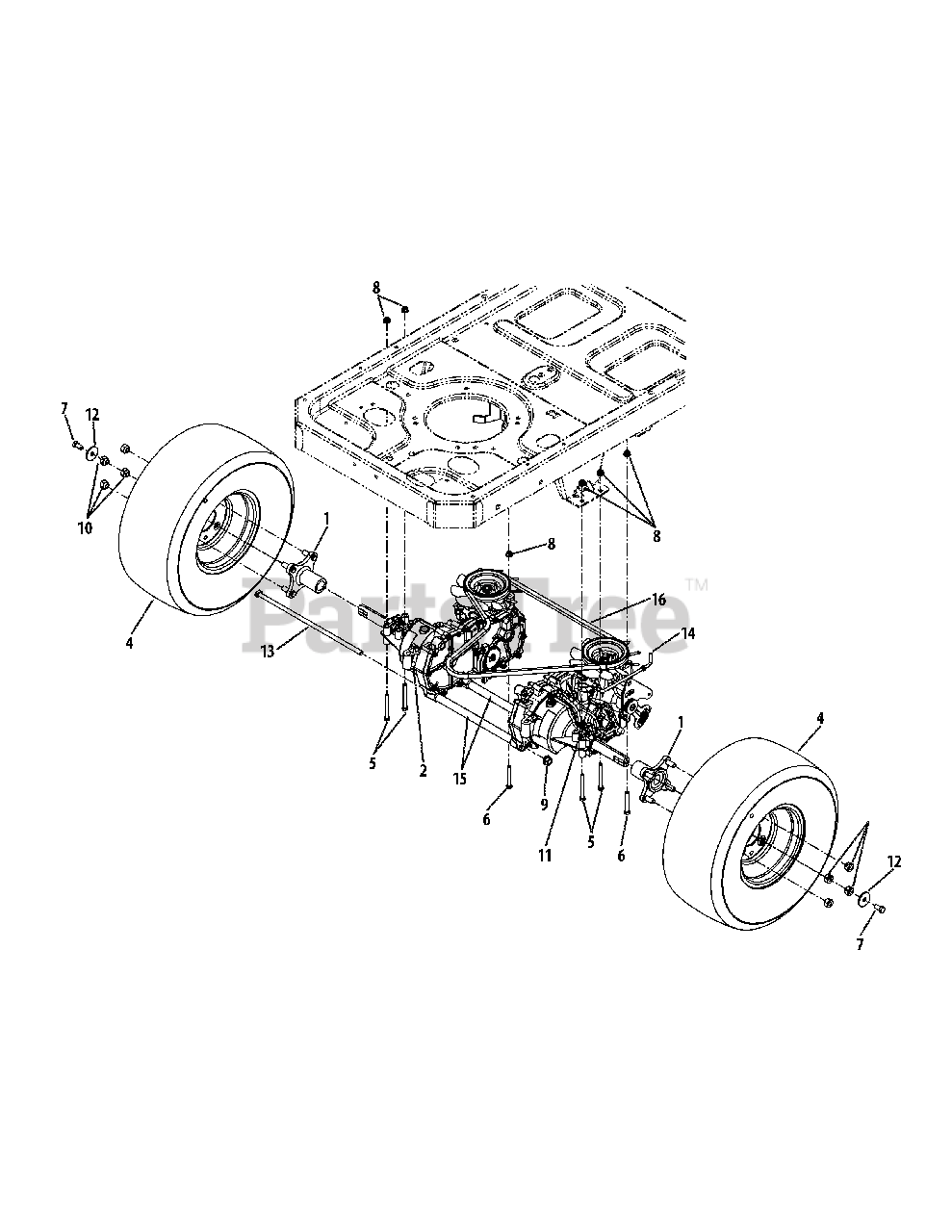

RZT-42 (17AA5AAG700) - Yard Machines 42" Zero-Turn Mower (2008) Rear Drive & Wheels Parts Diagram

42" Zero-Turn Mower

Rear Drive & Wheels Parts Diagram

  • Title

1

MTD 618-04317

Hub, Wheel Double D Long 3"
(Superseded to 918-04317)

$116.99

$

Usually ships in 3-6 days

0

1

MTD 618-04494

Hub, Wheel Double D Short 2.5"
(Superseded to 918-04494)

$

$

Not available

1

MTD 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

Note: (Not shown)

$6.49

$

In Stock, only 4 left!

0

2

MTD 618-04431B

Transmission Assembly (LH) Double D axle
(Superseded to 918-04431B)

Note: (Spline axle no longer available, if equipped)

$1719.99

$

Usually ships in 3-6 days

0

2

MTD 618-04432B

Transmission Assembly (RH) Double D axle
(Superseded to 918-04432B)

Note: (No reference number) (Spline axle no longer available, if equipped)

$1805.99

$

Usually ships in 3-6 days

0

2

MTD 732-04448

Neutral Return Spring

Note: (Not shown) must have the same color neutral return spring on RH & LH transmission.

$10.99

$

In Stock, Qty 20+

0

4

MTD 634-04294

Wheel Assembly, 18 x 8.5 x 8 (42" deck)

$279.99

$

Usually ships in 3-6 days

0

4

MTD 734-04246

Tire, 18 x 8.5 x 8

Note: (Not shown)

Variations

MTD 734-04246-0901

Tire, 18 X 8.5-8 Square Tread - Carlisle (0901)

$85.99

$

In Stock, only 2 left!

0

MTD 734-04246-0906

Tire, 18 X 8.5-8 Square Tread - Kenda (0906)

$85.99

$

In Stock, only 2 left!

0

$132.99

$

Usually ships in 3-6 days

0

4

MTD 603-04173

Rim, 8"

Note: (Not shown)

Variations

MTD 603-04173-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$88.99

$

Usually ships in 3-6 days

0

MTD 603-04173-0662

Rim Assembly, Rear - OYSTER GRAY (0662)

$88.99

$

Usually ships in 3-6 days

0

MTD 603-04173-0674

Rim Assembly, Rear - YARDMAN YELLOW (0674)

$82.99

$

Usually ships in 3-6 days

0

MTD 603-04173-4042

RIM ASM-REAR - CRAFTSMAN GRAY (4042)

$88.99

$

Usually ships in 3-6 days

0

$71.99

$

In Stock, only 2 left!

0

4

MTD 734-0255

Valve Assembly
(Superseded to 934-0255)

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0

4

MTD 634-04171

Wheel Assembly, 18 x 9.5 x 8 (50" deck)
(Superseded to 634-04128-0911)

$

$

Not available

4

MTD 734-1729

Tire, 18 x 9.5 x 8

Note: (Not shown)

Variations

MTD 734-1729-0906

Turf Saver Tire, 18 X 9.5 X 8 - Kenda (0906)

$

$

Not available

MTD 734-1729-0901

Turf Saver Tire, 18 X 9.5-8 Sq - Carlisle (0901)

$

$

Not available

$169.99

$

Usually ships in 3-6 days

0

4

MTD 603-04175

Rim Assembly

Note: (Not shown)

Variations

MTD 603-04175-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$88.99

$

In Stock, only 1 left!

0

MTD 603-04175-4042

RIM ASM-REAR - CRAFTSMAN GRAY (4042)

$88.99

$

In Stock, only 1 left!

0

MTD 603-04175-0662

Rim Assembly, Rear - OYSTER GRAY (0662)

$

$

Not available

$72.99

$

Usually ships in 3-6 days

0

4

MTD 734-0255

Valve Assembly
(Superseded to 934-0255)

Note: (Not shown)

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-0176

Hex Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

6

MTD 710-0395

Hex Cap Screw, 5/16-18 x 2.25

$4.99

$

In Stock, only 1 left!

0

7

MTD 710-3119

Hex Cap Screw Lock, 3/8-16 x .75

$6.99

$

In Stock, only 1 left!

0

8

MTD 712-04063

Hx Flnge Insert Lck Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

MTD 712-0459

Hex Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-3050

Lug Nut, 7/16-14

$9.99

$

In Stock, Qty 6

0

11

MTD 714-0507

Cotter Pin, 3/32 x .75

$4.49

$

In Stock, only 2 left!

0

12

MTD 736-0227

Flat Washer, .39 x 1.5 .134

$6.49

$

In Stock, Qty 13

0

13

MTD 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$21.99

$

Usually ships in 3-6 days

0

14

MTD 747-04217C

Bypass Rod
(Superseded to 747-04217C-0637)

Variations

MTD 747-04217C-0637

Bypass Rod - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

15

MTD 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$26.99

$

In Stock, only 1 left!

0

16

MTD 754-04043

Type A Sec V-Belt x 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0
