RZT-42 (17AA554G755) - Columbia 42" Zero-Turn Mower (2006) Engine Accessories Parts Diagram

42" Zero-Turn Mower

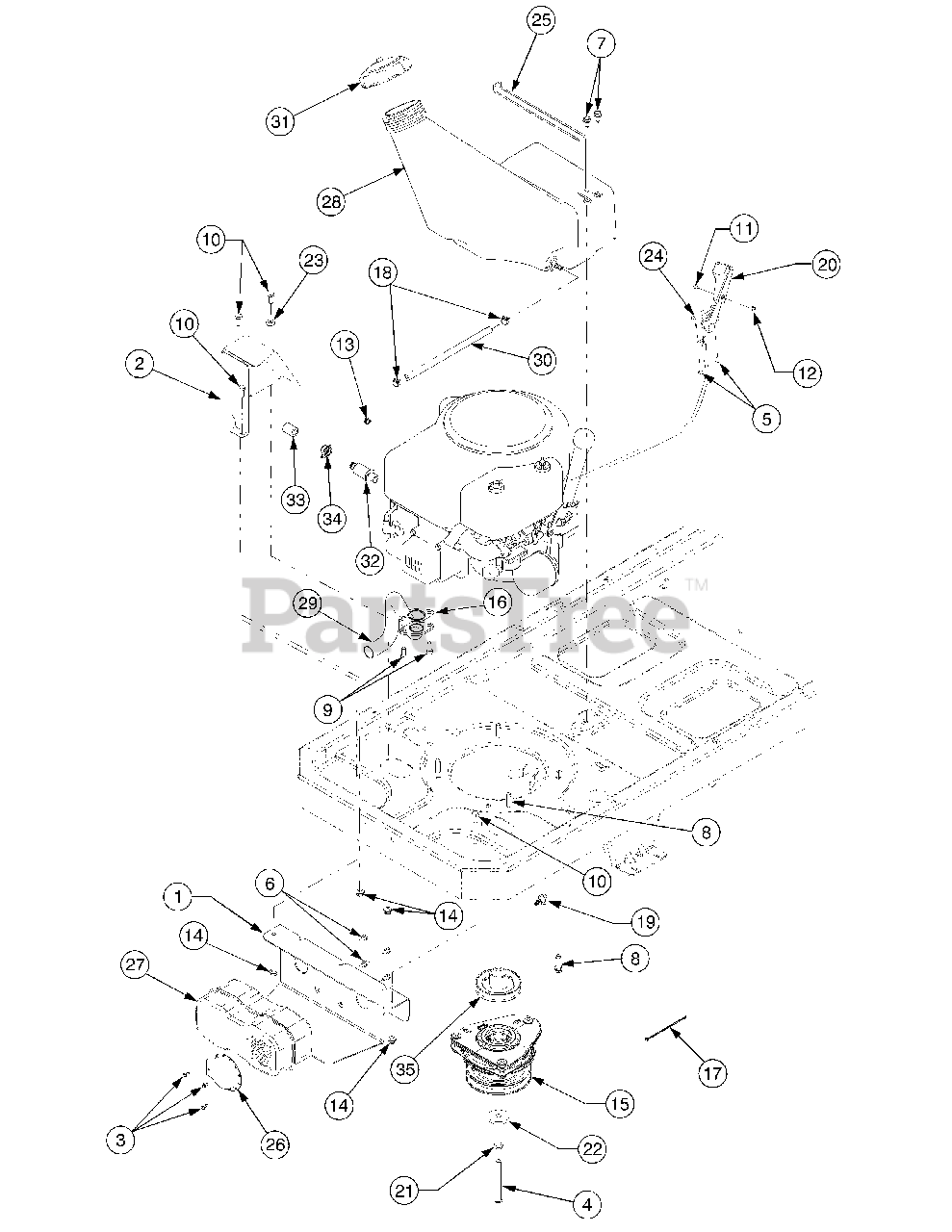

Engine Accessories Parts Diagram

  • Title

1

MTD 703-05441A

Bracket, Muffler Mounting

$52.99

$

In Stock, only 3 left!

0

2

MTD 703-05870

Shield, Muffler Tube Heat

$96.99

$

Usually ships in 3-6 days

0

3

MTD 710-0227

Screw, Hex Wash. Hd. Tapp #8-18 x .5

$4.49

$

In Stock, Qty 15

0

4

MTD 710-04248

Screw, Hex Cap, 7/16-20 x 4.0 GR5

$10.99

$

In Stock, only 1 left!

0

5

MTD 710-04261

Screw, Hex Wash. Hd. Tapp #12-16 x .5

$6.49

$

In Stock, only 3 left!

0

6

MTD 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1315

Screw, Hex Sems Wash. Hd. Tapp ..3/8-16 x 1.25

$4.49

$

In Stock, only 3 left!

0

9

MTD 710-1314A

Screw, Socket Hd. 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3008

Screw, Hex Cap, 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3217

Screw, Truss Hd. Mach. #8-32 x .375

$6.99

$

In Stock, Qty 7

0

12

MTD 712-0142

Nut, Hex, #8-32

$4.49

$

In Stock, Qty 9

0

13

MTD 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 10

0

14

MTD 712-04063

Nut, Hx Insert Flange Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

15

MTD 717-04183

Clutch Assembly, Electric PTO
(Superseded to 917-04622)

$600.99

$

In Stock, only 1 left!

0

16

MTD 721-0348

Gasket, Exhaust Tec
(Superseded to TC-36365)

$3.49

$

In Stock, only 2 left!

0

17

MTD 726-0197

Tie, Cable

$3.99

$

In Stock, only 1 left!

0

18

MTD 726-0205

Clamp, Hose

$3.99

$

In Stock, Qty 18

0

19

MTD 726-3055

Clip, Cable Retainer

$6.99

$

Usually ships in 3-6 days

0

20

MTD 731-04914

Knob, Throttle Control

$13.99

$

Usually ships in 3-6 days

0

21

MTD 736-0171

Washer, Lock, 7/16

$4.49

$

In Stock, only 4 left!

0

22

MTD 736-04131

Washer, Flat, .438 x 1.75 x .25

$15.99

$

In Stock, only 1 left!

0

23

MTD 736-3008

Washer, Flat, .344 x .75 x .12
(Superseded to 936-3008)

$6.99

$

Usually ships in 3-6 days

0

24

MTD 746-04161

Cable, Throttle, 39.0 Lg
(Superseded to 946-04161)

$49.99

$

In Stock, only 2 left!

0

25

MTD 747-04228A

Wire, Tank Mounting

$

$

Not available

26

MTD 751-0564B

Deflector, Muffler

$13.99

$

In Stock, Qty 5

0

27

MTD 751-0617B

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 6

0

28

MTD 751-10057C

Tank, Fuel, 3.0 Gal.
(Superseded to 751-10057D)

$309.99

$

Usually ships in 3-6 days

0

29

MTD 751-10286A

Pipe, Exhaust

$

$

Currently unavailable

30

MTD 751-10349

Hose, Fuel Line

Note: 14in

$9.49

$

Usually ships in 3-6 days

0

31

MTD 751-3124C

Cap, Fuel
(Superseded to 951-3124E)

$36.99

$

In Stock, only 3 left!

0

32

MTD 751-3140

Valve, Oil Drain
(Superseded to 951-10517A)

$24.99

$

In Stock, only 1 left!

0

33

MTD 751-3141

Hose, Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

34

MTD 751-3142

Cap, Oil Drain Valve

$4.49

$

In Stock, only 4 left!

0

35

MTD 756-0978A

Pulley, Drive
(Superseded to 756-0978B)

$66.99

$

In Stock, Qty 15

0
