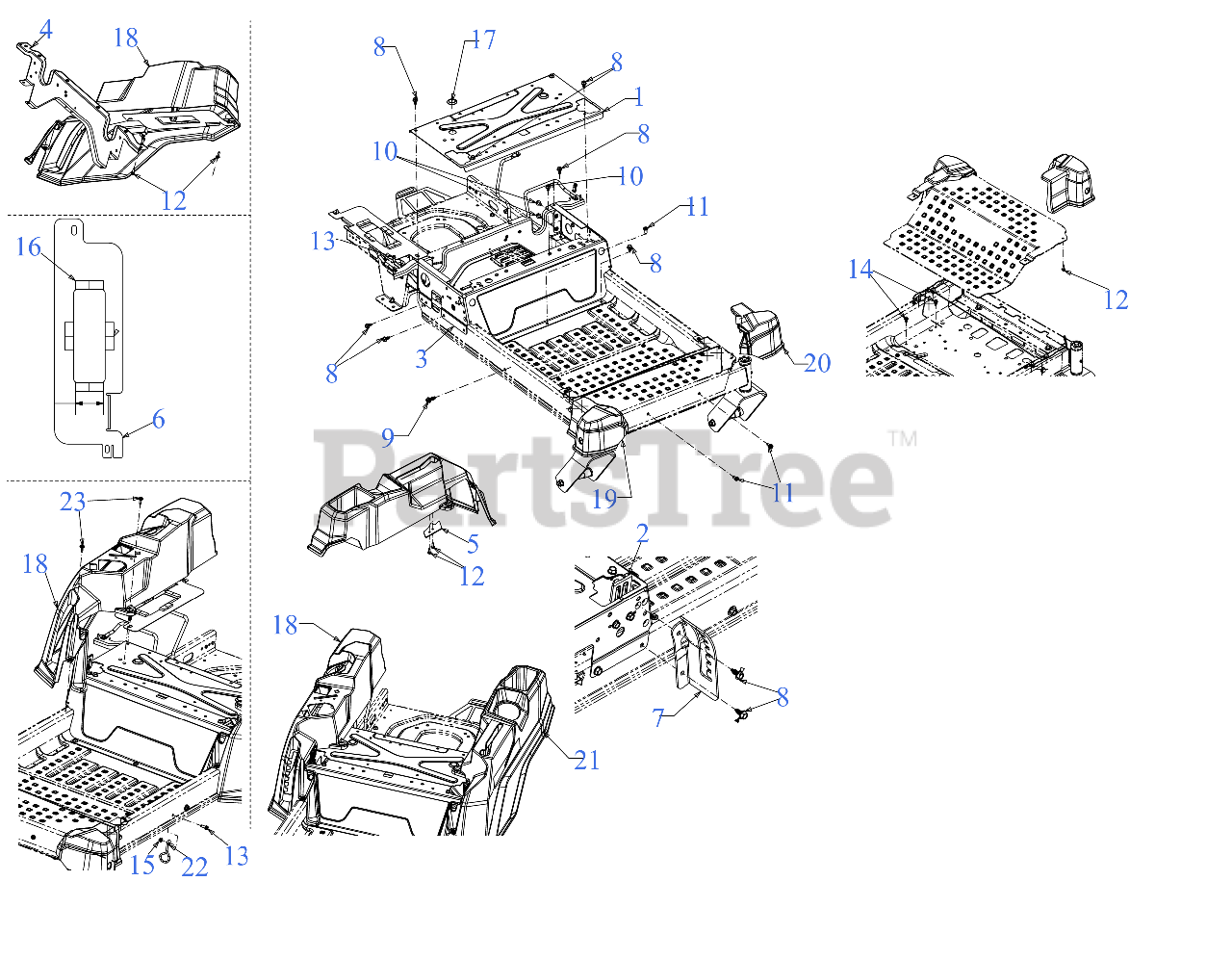

RZT-34 (17AQNAMU029) - Yard Machines 34" Zero-Turn Mower (2018) Platform Parts Diagram

34" Zero-Turn Mower

Platform Parts Diagram

  • Title

1

MTD 703-09045J

SEATBOX TOP PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09045J-0638

PLT-SEATBOX TOP - MTD/TROY-BILT RED (0638)

$45.99

$

Usually ships in 3-6 days

0

MTD 703-09045J-0606

PLT-SEATBOX TOP - MAJESTIC ORANGE (0606)

$39.99

$

Usually ships in 3-6 days

0

MTD 703-09045J-0637

PLT-SEATBOX TOP - POWDER BLACK (0637)

$45.99

$

Usually ships in 3-6 days

0

MTD 703-09045J-0662

PLT-SEATBOX TOP - OYSTER GRAY (0662)

$39.99

$

Usually ships in 3-6 days

0

MTD 703-09045J-0691

PLT-SEATBOX TOP - BLACK JACK (0691)

$39.99

$

Usually ships in 3-6 days

0

MTD 703-09045J-4021

PLT-SEATBOX TOP - CUB YELLOW 2 (4021)

$45.99

$

Usually ships in 3-6 days

0

MTD 703-09045J-4033

PLT-SEATBOX TOP - FLINT MICA (4033)

$39.99

$

Usually ships in 3-6 days

0

MTD 703-09045J-4044

PLT-SEATBOX TOP - CRAFTSMAN RED (4044)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

2

MTD 703-09211A

LAPBAR BRACE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09211A-0637

BRACKET-LAPBAR BRACE - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

MTD 703-09211A-0691

BRACKET-LAPBAR BRACE - BLACK JACK (0691)

$6.99

$

Usually ships in 3-6 days

0

MTD 703-09211A-4021

BRKT-LAPBAR BRACE - CUB YELLOW 2 (4021)

$6.99

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

3

MTD 703-09320F

SEAT FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09320F-0606

FRAME-SEAT BOX - MAJESTIC ORANGE (0606)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0637

FRAME-SEAT BOX - POWDER BLACK (0637)

$94.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0638

FRAME-SEAT BOX - MTD/TROY-BILT RED (0638)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0662

FRAME-SEAT BOX - OYSTER GRAY (0662)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-0691

FRAME-SEAT BOX - BLACK JACK (0691)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-4021

FRAME-SEAT BOX - CUB YELLOW 2 (4021)

$94.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-4033

FRAME-SEAT BOX - FLINT MICA (4033)

$76.99

$

Usually ships in 3-6 days

0

MTD 703-09320F-4044

FRAME-SEAT BOX - CRAFTSMAN RED (4044)

$88.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

4

MTD 703-10813A

SEATBOX REAR BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-10813A-0606

BRKT-SEATBOX REAR - MAJESTIC ORANGE (0606)

$65.99

$

Usually ships in 3-6 days

0

MTD 703-10813A-0637

BRKT-SEATBOX REAR - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

MTD 703-10813A-0638

BRKT-SEATBOX REAR - MTD/TROY-BILT RED (0638)

$

$

Not available

$65.99

$

Usually ships in 3-6 days

0

5

MTD 703-10959B

MANUAL PTO LEVER SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-10959B-0637

PLT-PTO LVR SUPT - POWDER BLACK (0637)

$7.99

$

Usually ships in 3-6 days

0

$6.99

$

Usually ships in 3-6 days

0

6

MTD 703-11191

TANK SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-11191-0637

PLT-TANK SUPPORT - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

7

MTD 703-11386

HEIGHT INDEX BRACKET

$28.99

$

Usually ships in 3-6 days

0

8

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 3 left!

0

10

MTD 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

11

MTD 710-06096

SCREW 5/16-18 X.75

$6.99

$

Usually ships in 3-6 days

0

12

MTD 710-06147

SCREW 1/4-10 x .750

$3.99

$

In Stock, only 4 left!

0

13

MTD 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

16

MTD 722-3022A-12

FOAM TAPE 12"LG FROM BULK

$18.99

$

Usually ships in 3-6 days

0

17

MTD 726-3045A

PLUG

$4.99

$

In Stock, Qty 7

0

18

MTD 931-12446A

CONSOLE (RH)

$74.99

$

Usually ships in 3-6 days

0

19

MTD 731-12609A

AXLE COVER (RH) W/HEADLIGHT

Note: *CHOOSE COLOR WHEN ORDERING*

$20.99

$

Usually ships in 3-6 days

0

20

MTD 731-12610A

AXLE COVER (LH) W/HEADLIGHT

Note: *CHOOSE COLOR WHEN ORDERING*

$20.99

$

Usually ships in 3-6 days

0

21

MTD 931-12912A

MANUAL PTO CONSOLE (LH)

$81.99

$

Usually ships in 3-6 days

0

22

MTD 732-04677

CABLE GUIDE

$8.99

$

Usually ships in 3-6 days

0

23

MTD 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0
