RZT-34 (17AQNAMU029) - Yard Machines 34" Zero-Turn Mower (2018) Engine Accessories Parts Diagram

34" Zero-Turn Mower

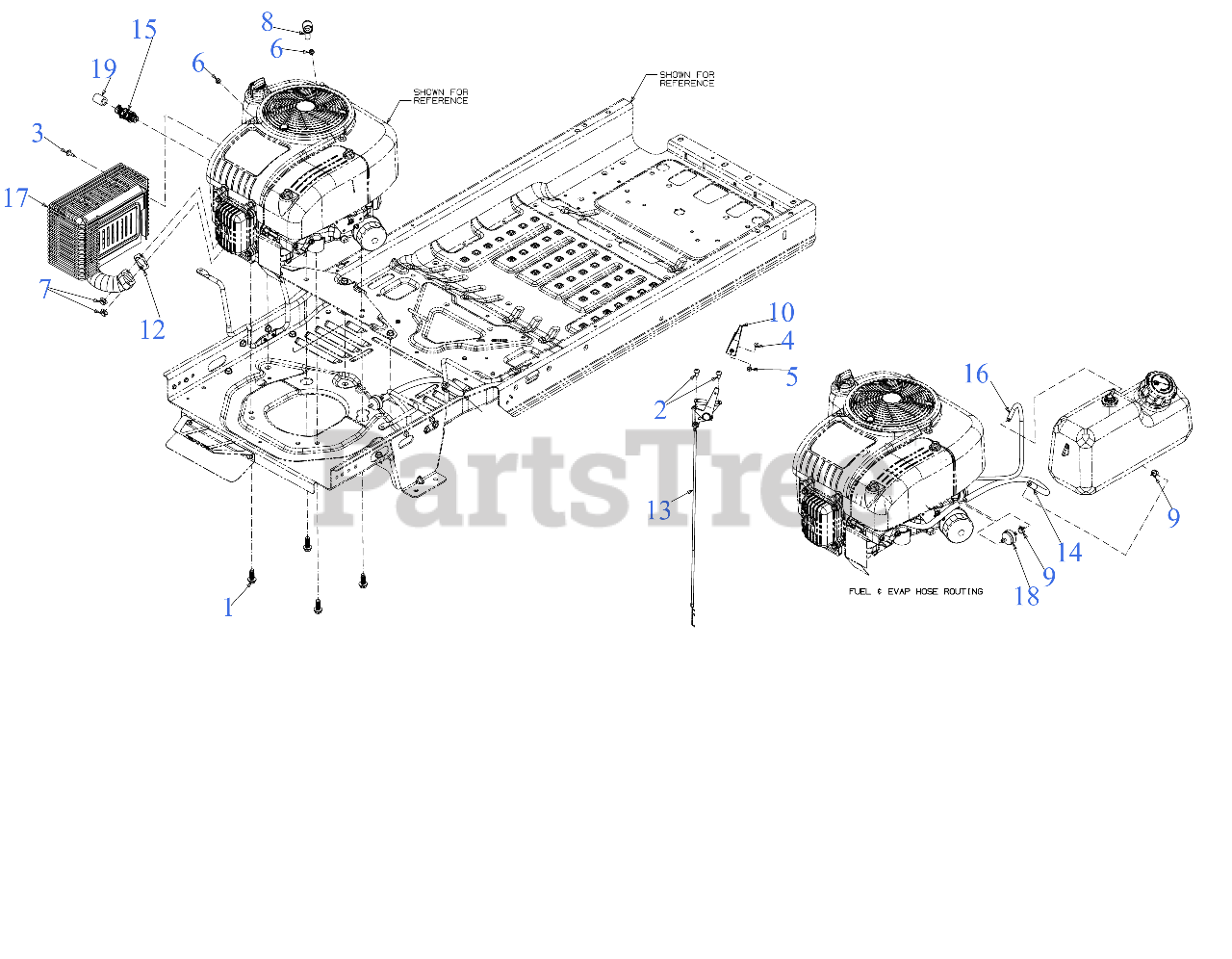

Engine Accessories Parts Diagram

  • Title

1

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, Qty 5

0

2

MTD 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

3

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

4

MTD 710-3217

SCREW #8-32X.38 LG

$6.99

$

In Stock, Qty 7

0

5

MTD 712-0142

HEX NUT 8-32

$4.49

$

In Stock, Qty 10

0

6

MTD 912-0691

HEX NUT IK:M6
(Superseded to 712-0691)

$

$

Not available

7

MTD 712-3086

HEX FLANGE NUT M8X

$4.49

$

In Stock, only 2 left!

0

8

MTD 725-3238

TERMINAL COVER BLACK

$6.99

$

Usually ships in 3-6 days

0

9

MTD 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

10

MTD 731-09637

THROTTLE CONTROL KNOB

$8.49

$

In Stock, only 4 left!

0

12

MTD 951-12271

EXHAUST PIPE MUFFLER GASKET

$6.49

$

In Stock, only 1 left!

0

13

MTD 946-05333

THROTTLE/CHOKE CABLE 19.0

$35.99

$

Usually ships in 3-6 days

0

14

MTD 751-10349-13

FUEL HOSE LOW PERMEATION 13"

$17.99

$

In Stock, only 3 left!

0

15

MTD 951-10517A

OIL DRAIN VALVE

$24.99

$

In Stock, only 3 left!

0

16

MTD 751-12089-28

VENT HOSE 3/16 ID 28"LG

$8.99

$

In Stock, only 1 left!

0

17

MTD 951-15864

MUFFLER ASSEMBLY

$202.99

$

Usually ships in 3-6 days

0

18

MTD 951-3013

FUEL FILTER

$5.49

$

In Stock, Qty 20+

0

18

MTD 490-202-M002

Genuine Factory Parts FUEL FILTER

Note: Retail Packaged Part

$11.99

$

In Stock, Qty 6

0

19

MTD 751-3141-14

DRAIN HOSE 14''

$11.99

$

In Stock, Qty 8

0

MTD NS

OIL:SAE 10W30

$

$

Currently unavailable
