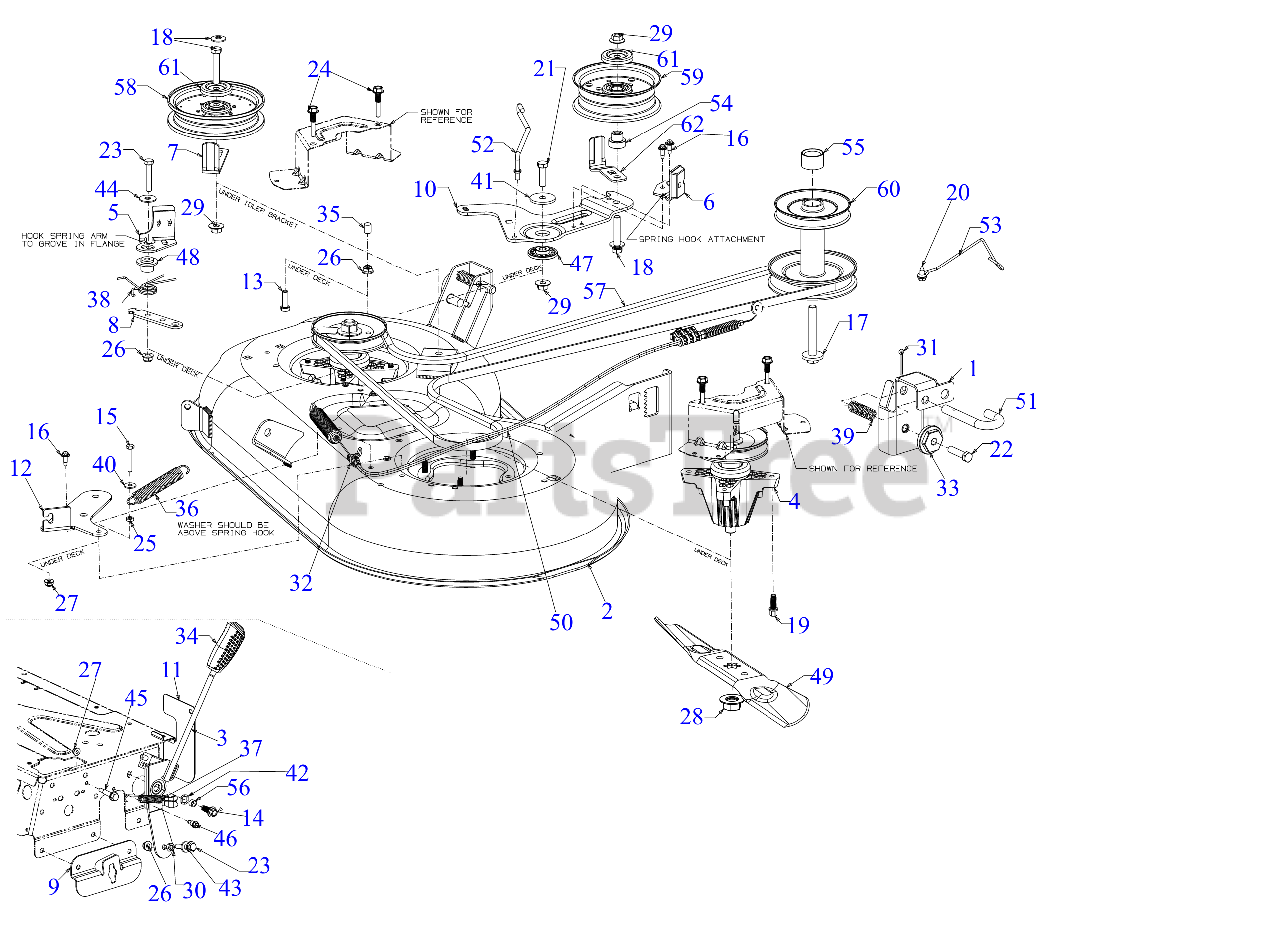

RZT-34 (17AQNAMU029) - Yard Machines 34" Zero-Turn Mower (2018) Deck Parts Diagram

34" Zero-Turn Mower

Deck Parts Diagram

  • Title

1

MTD 603-05215A

DECK HANGER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-05215A-0637

Deck Hanger Bracket, LH - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

MTD 603-05215A-0691

BRKT-DECK HNGR LH - BLACK JACK (0691)

$66.99

$

Usually ships in 3-6 days

0

MTD 603-05215A-4021

BRKT-DECK HNGR LH - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

MTD 603-05215A-4044

DECK HANGER BRACKET (LH) (CRAFTSMAN RED) - CRAFTSMAN RED (4044)

$66.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

2

MTD 903-05381

34" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 903-05381-0606

"SHELL-34"" DECK" - MAJESTIC ORANGE (0606)

$567.99

$

Usually ships in 3-6 days

0

MTD 903-05381-0637

SHELL-34" DECK - POWDER BLACK (0637)

$662.99

$

Usually ships in 3-6 days

0

MTD 903-05381-0638

"SHELL-34"" DECK" - MTD/TROY-BILT RED (0638)

$662.99

$

Usually ships in 3-6 days

0

MTD 903-05381-0691

"SHELL-34"" DECK" - BLACK JACK (0691)

$567.99

$

Usually ships in 3-6 days

0

$567.99

$

Usually ships in 3-6 days

0

3

MTD 603-05317B

PTO ENGAGEMENT LEVER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 603-05317B-0637

LVR-PTO ENGAGEMENT - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

MTD 603-05317B-0691

LVR-PTO ENGAGEMENT - BLACK JACK (0691)

$70.99

$

Usually ships in 3-6 days

0

$56.99

$

Usually ships in 3-6 days

0

4

MTD 918-07288

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$143.99

$

In Stock, only 1 left!

0

5

MTD 983-05396

DECK BRAKE ASSEMBLY

$107.99

$

In Stock, Qty 19

0

5

MTD 728-0175

RIVOT

Note: (Not Shown)

$4.99

$

In Stock, Qty 10

0

5

MTD 761-05007

DECK BRAKE PAD

Note: (Not Shown)

$10.99

$

In Stock, Qty 9

0

6

MTD 983-05398

DECK BRAKE ASSEMBLY

$34.99

$

In Stock, only 1 left!

0

6

MTD 728-0175

RIVOT

Note: (Not Shown)

$4.99

$

In Stock, Qty 10

0

6

MTD 761-05017

DECK BRAKE PAD

Note: (Not Shown)

$15.99

$

Usually ships in 3-6 days

0

7

MTD 703-09583

BELT GUARD BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-09583-0637

Belt Guard Bracket - POWDER BLACK (0637)

$13.99

$

In Stock, only 2 left!

0

$11.99

$

Usually ships in 3-6 days

0

8

MTD 703-10801

DECK BRAKE MOUNTING BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-10801-0637

BRKT-RH BRAKE MTG - POWDER BLACK (0637)

$6.99

$

In Stock, only 1 left!

0

$6.99

$

Usually ships in 3-6 days

0

9

MTD 703-11374A

CABLE MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-11374A-0637

BRKT-CABLE MTG - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

MTD 703-11374A-0691

BRKT-CABLE MTG - BLACK JACK (0691)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

10

MTD 903-10991

IDLER PIVOT BRACKET

$40.99

$

Usually ships in 3-6 days

0

11

MTD 703-11105A

PTO LEVER COVER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-11105A-0637

BRKT-PTO LVR CVR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

MTD 703-11105A-0691

BRKT-PTO LVR CVR - BLACK JACK (0691)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

12

MTD 703-11316

PTO CABLE MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 703-11316-0637

BRKT-PTO CABLE MTG - POWDER BLACK (0637)

$23.99

$

Usually ships in 3-6 days

0

$23.99

$

Usually ships in 3-6 days

0

13

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

14

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 3 left!

0

15

MTD 710-05289

SCREW 1/4-20 x 1.50 GR8

$5.99

$

In Stock, only 3 left!

0

16

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 13

0

17

MTD 710-06151

SCREW-SEMS 7/16-20 x 3.25 PATCH

$11.99

$

Usually ships in 3-6 days

0

18

MTD 710-06178

SCREW 3/8-16 x 2.0

$6.49

$

In Stock, Qty 5

0

19

MTD 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 5

0

20

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

22

MTD 710-3120

SCREW 3/8-16X1.5 GR5

$3.99

$

Usually ships in 3-6 days

0

23

MTD 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 15

0

24

MTD 711-06112

BELT KEEPER ROD .25 x 1.585

$4.49

$

Usually ships in 3-6 days

0

25

MTD 912-0298

HEX JAM NUT 1/4-20

$6.49

$

Usually ships in 3-6 days

0

26

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

28

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

29

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

30

MTD 912-3010

HEX NUT 5/16-18
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

31

MTD 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

32

MTD 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 3 left!

0

33

MTD 917-05298

DECK ADJUSTMENT GEAR

$13.99

$

In Stock, only 1 left!

0

34

MTD 720-04140B

GRIP

$15.99

$

In Stock, only 3 left!

0

35

MTD 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

36

MTD 732-04629

EXTENSION SPRING

$28.99

$

In Stock, Qty 6

0

37

MTD 732-05119

EXTENSION SPRING .56 OD x 4.52

$9.49

$

In Stock, only 1 left!

0

38

MTD 732-05151A

TORSION SPRING

$4.49

$

In Stock, Qty 12

0

39

MTD 932-3127

COMPRESSION SPRING .66 OD x 1

$4.49

$

In Stock, Qty 6

0

40

MTD 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, only 4 left!

0

41

MTD 936-0227

FLAT WASHER
(Superseded to 736-0227)

$

$

Not available

42

MTD 936-0504

WAVE WASHER

$4.49

$

In Stock, Qty 10

0

43

MTD 936-3008

FLAT WASHER.344X.75X.1

$6.99

$

Usually ships in 3-6 days

0

44

MTD 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, only 4 left!

0

45

MTD 738-04185

SHOULDER SCREW

$8.49

$

Usually ships in 3-6 days

0

46

MTD 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

47

MTD 738-05099

SHOULDER SPACER

$7.49

$

Usually ships in 3-6 days

0

48

MTD 738-05272

DOUBLE SHOULDER SPACER .750 x .135

$7.49

$

In Stock, only 1 left!

0

49

MTD 942-05052A

17.27" BLADE (2N1)

$28.99

$

In Stock, Qty 20+

0

49

MTD 490-110-C155

Cub Cadet 50" HI LIFT BLADE SET

Note: Retail Packaged Part

$86.99

$

In Stock, only 1 left!

0

49

MTD 490-110-M155

Genuine Factory Parts 50" BLADE SET

Note: Retail Packaged Part

$86.99

$

In Stock, only 3 left!

0

49

MTD 942-05052-L

50" 6 PT STAR LOW LIFT/SAND BLADE
(Superseded to 742-05052-L0606)

$30.99

$

In Stock, Qty 19

0

49

MTD 490-110-C182

Cub Cadet 50" LOWLIFT BLADE SET

Note: Retail Packaged Part

$92.99

$

In Stock, only 4 left!

0

49

MTD 490-110-M182

Genuine Factory Parts 50" LOWLIFT BLADE SET

Note: Retail Packaged Part

$92.99

$

Usually ships in 3-6 days

0

49

MTD 942-05052-X

50" 6 PT STAR XTREME MULCH BLADE

$30.99

$

In Stock, only 3 left!

0

49

MTD 490-110-C178

Cub Cadet 50" XTREME BLADE SET

Note: Retail Packaged Part

$98.99

$

In Stock, only 3 left!

0

49

MTD 490-110-M178

Genuine Factory Parts 50" XTREME MULCH BLADE SET

Note: Retail Packaged Part

$98.99

$

In Stock, only 1 left!

0

50

MTD 946-05358A

PTO CABLE

$61.99

$

Usually ships in 3-6 days

0

51

MTD 747-06292

DECK RELEASE PIN

$11.99

$

In Stock, only 1 left!

0

52

MTD 747-06807

DECK BRAKE ROD (RH)

$31.99

$

Usually ships in 3-6 days

0

53

MTD 747-06947

PTO CABLE GUIDE

$8.99

$

Usually ships in 3-6 days

0

54

MTD 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

55

MTD 748-05078A

ENGINE PULLEY SPACER

$7.49

$

In Stock, only 1 left!

0

56

MTD 750-0526

SPACER

$4.99

$

In Stock, only 1 left!

0

57

MTD 954-05158

V-TYPE BELT A SEC x 111.1

$68.99

$

In Stock, only 1 left!

0

58

MTD 756-04511B

FLAT IDLER PULLEY

$53.99

$

In Stock, Qty 20+

0

59

MTD 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

60

MTD 756-05226

MANUAL PTO ENGINE PULLEY

$75.99

$

Usually ships in 3-6 days

0

61

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

62

MTD 783-08690

BELT KEEPER
(Superseded to 783-08690A)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 783-08690-0637

Belt Keeper, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$11.99

$

Usually ships in 3-6 days

0
