RZT 26520 (2691079-00) - Murray 52" Zero-Turn Mower, 26hp (2012) Seat Group, Sliding (7501578) Parts Diagram

52" Zero-Turn Mower, 26hp

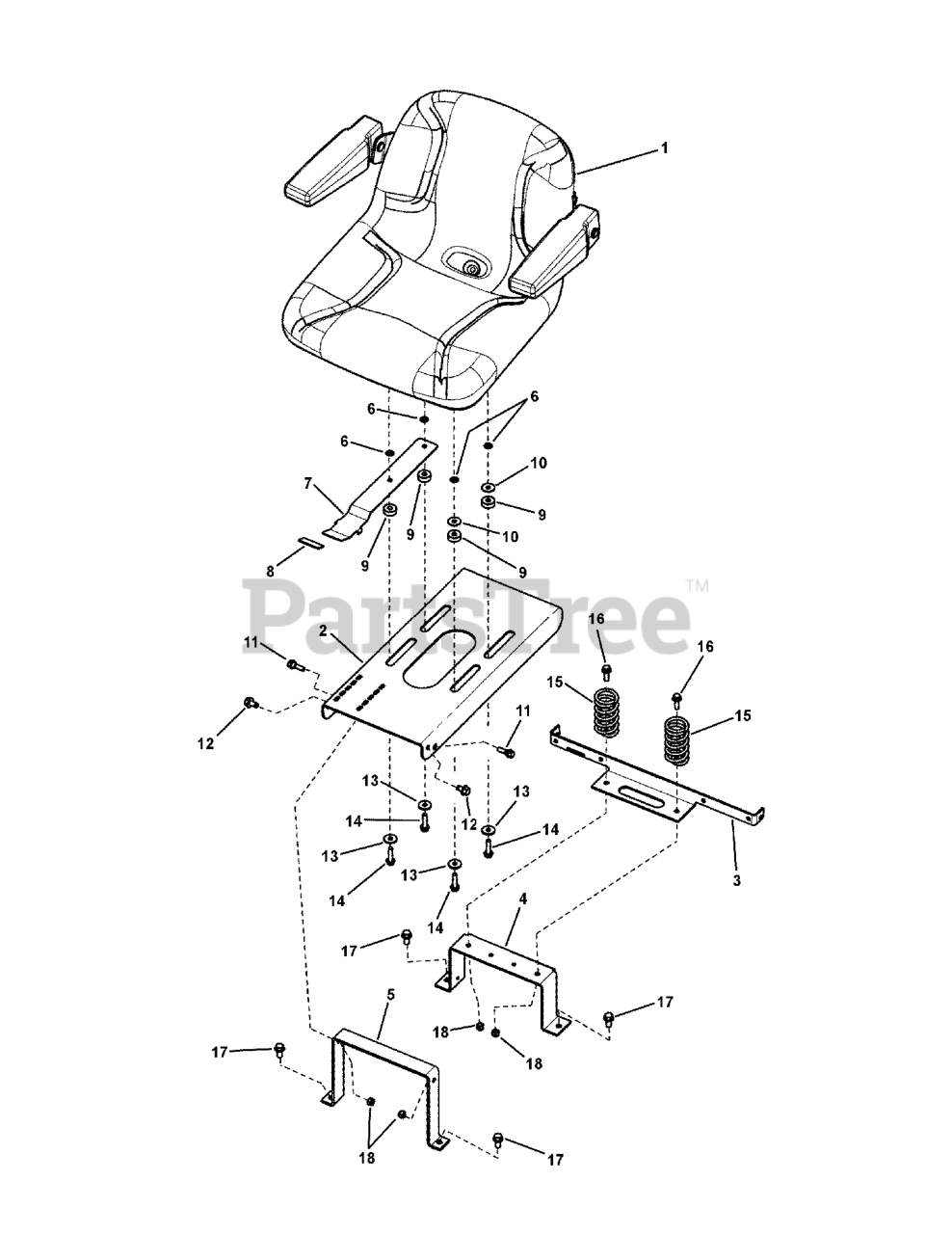

Seat Group, Sliding (7501578) Parts Diagram

  • Title
1

Murray 1754218

SEAT, 15" Back w/Armrests
(Superseded to 1754218YP)

Note: (Was 7100005)

$552.99

$

Usually ships in 2-12 days

0

2

Murray 7301095BM

PLATE, Seat, Adjustable
(Superseded to 7301095BMYP)

$53.99

$

Usually ships in 2-12 days

0

3

Murray 7301107BM

BRACKET, Support, Seat & Fender
(Superseded to 7301107BMYP)

$26.99

$

Usually ships in 2-12 days

0

4

Murray 7043316BM

BRACKET, Seat Support
(Superseded to 7043316BMYP)

$19.99

$

Usually ships in 2-12 days

0

5

Murray 7301070BM

BRACKET, Seat
(Superseded to 7301070BMYP)

$20.99

$

Usually ships in 2-12 days

0

6

Murray 703297

RETAINER, 5/16" Bolt, Black

Note: (Was 7011791 or 80002734)

$3.99

$

In Stock, Qty 20+

0

7

Murray 7103673BM

LATCH, Seat
(Superseded to 7103673BMYP)

$18.99

$

Usually ships in 2-12 days

0

8

Murray 885215

COVER, Seat Adjustment Lever
(Superseded to 885215YP)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 7103920

SPACER, Seat, Adjustable
(Superseded to 7103920YP)

$3.99

$

Usually ships in 2-12 days

0

10

Murray 7011763

WASHER, Fender, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, only 1 left!

0

11

Murray 7015761

SHOULDER BOLT, 5/16-18, YZ

$5.49

$

In Stock, Qty 5

0

12

Murray 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 703298

WASHER, 5/16

Note: (Was 1919381 or 80003525)

$4.49

$

In Stock, only 1 left!

0

14

SCREW, 5/16-18 x 1-1/4" Hex Head Flange Lock

Note: (Was 1930595)

$

$

Not available

15

Murray 7103425

SPRING, Compression 3.62"
(Superseded to 7103425YP)

$17.99

$

Usually ships in 2-12 days

0

16

Murray 7091591

BOLT, 5/16-18 x 1" Hex Flange Lock, GR 5, YZ
(Superseded to 7091591SM)

$4.49

$

In Stock, only 2 left!

0

17

Murray 7090815

SCREW, 3/8-16 x 3/4" Hex Washer Self-Tap
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

18

Murray 703164

NUT, 5/16-18 Hex Center Lock, GR 5, YZ

Note: (Was 7091575 or 80003675)

$3.49

$

In Stock, Qty 20+

0

--

Murray 1761409YP

KNOB, Adjuster, Arm Rest

Note: (Not Shown)

$18.99

$

Usually ships in 2-12 days

0
