RZT 26520 (2691079-00) - Murray 52" Zero-Turn Mower, 26hp (2012) Frame Assembly, RZT (7501700) Parts Diagram

52" Zero-Turn Mower, 26hp

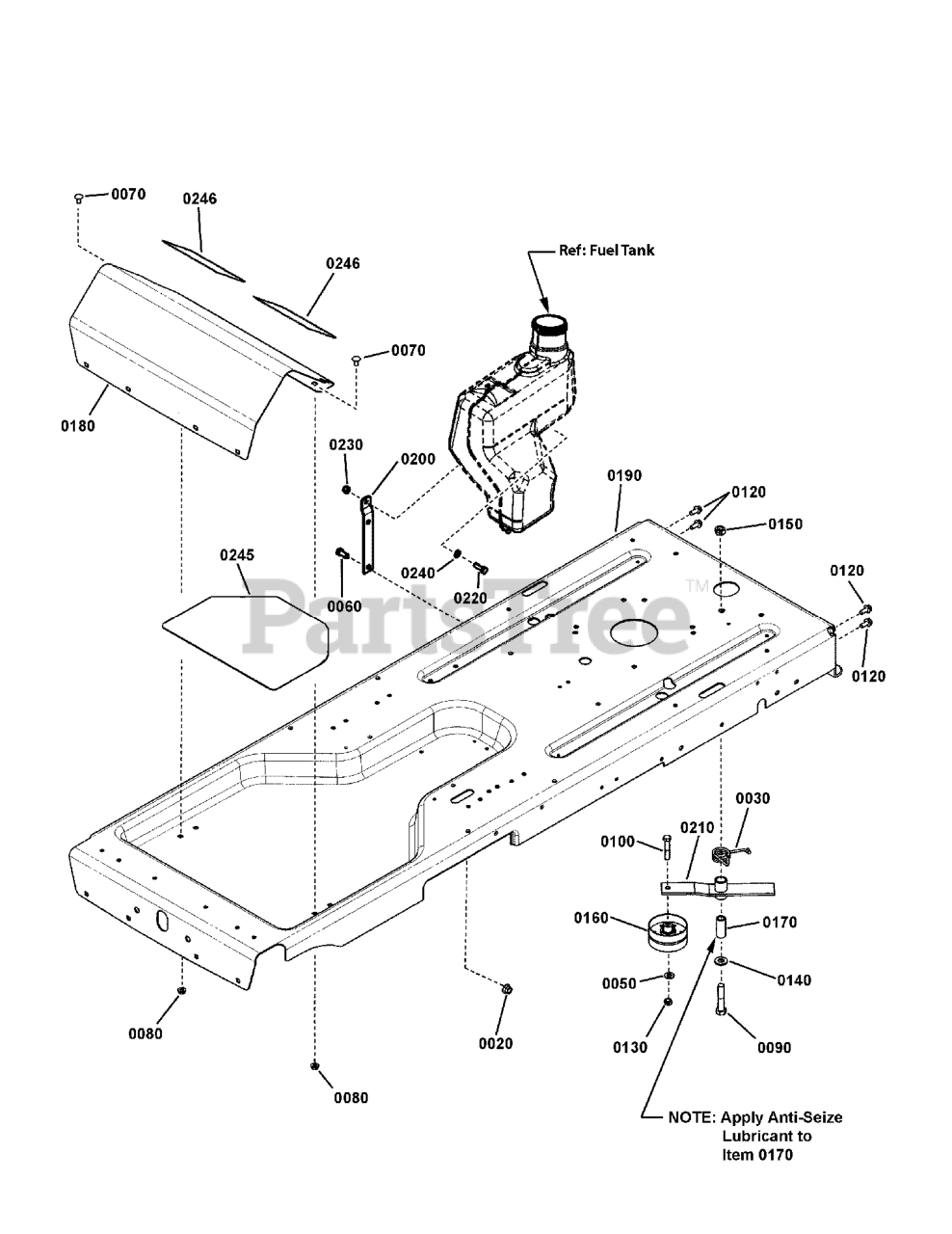

Frame Assembly, RZT (7501700) Parts Diagram

  • Title

0020

Murray 1931211SM

NUT, 3/8-16 Hex Flange lock, GR F, BZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0030

Murray 7044760SM

SPRING, Torsion, RH Wind

$33.99

$

In Stock, only 2 left!

0

0050

Murray 7090122YP

WASHER, 3/8" Flat (SAE)
(Superseded to 703590)

$3.99

$

In Stock, Qty 7

0

0060

Murray 7091086YP

SCREW, 3/8-16 x 3/4" Hex Head Cap, GR 5 ZP
(Superseded to 703237)

$4.99

$

Usually ships in 2-12 days

0

0070

Murray 7090799SM

BOLT, 5/16-18 x 5/8" Round Head Short Square Neck Carriage, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0080

Murray 7091601SM

NUT, 5/16-18, Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0090

Murray 7091218SM

SCREW, 1/2-13 x 2-1/2", Hex Head Cap, GR 5 (Black Phosphate)
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

0100

Murray 7091305SM

SCREW, 3/8-16 x 2" Hex Head Cap, GR 5, YZ
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0120

Murray 7091541SM

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap, YZ
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0130

Murray 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

0140

Murray 7091587SM

WASHER, .531 x 1.062 x .121, Flat, YZ (SAE)
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

0150

Murray 7091894SM

NUT, 1/2-13 Hex Center Lock, GR 5, YZ
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

0160

Murray 7100103SM

IDLER, 3.25" OD x .391 ID x 1.63, Backside

$43.99

$

In Stock, Qty 8

0

0170

Murray 7200034SM

SPACER, Hydro Idler

$

$

Not available

0180

Murray 7300140BIYP

FOOTREST

$69.99

$

Usually ships in 2-12 days

0

0190

Murray 7301073BIYP

FRAME, RZT

$883.99

$

Usually ships in 2-12 days

0

0200

Murray 7301110BMYP

BRACKET, Support, Fuel Tank

$11.99

$

Usually ships in 2-12 days

0

0210

Murray 7400208BMYP

WELDMENT, Hydro Idler MY08

$45.99

$

In Stock, only 1 left!

0

0220

Murray 7027168SM

SCREW, 5/16-18 x 1" Hex Head Cap, GR 5, YZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 7091298YP

NUT 5/16-18- Nyloc, YZ
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 017X47MA

WASHER, Flat, 5/8
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

0245

Murray 7103830YP

MAT, Floor Pan, RZT

$33.99

$

Usually ships in 2-12 days

0

0246

Murray 7014048YP

PAD, Foot, Wide
(Superseded to 7104571YP)

$17.99

$

In Stock, Qty 5

0
